DEWESOFT DS-CAM-88c Manual

Video acquisition
Hide thumbs Also See for DS-CAM-88c:
Table of Contents

Advertisement

Quick Links

www.dewesoft.com - Copyright © 2000 - 2021 Dewesoft d.o.o., all rights reserved.
Dewesoft Video Acquisition

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-CAM-88c and is the answer not in the manual?

Questions and answers

Related Manuals for DEWESOFT DS-CAM-88c

Summary of Contents for DEWESOFT DS-CAM-88c

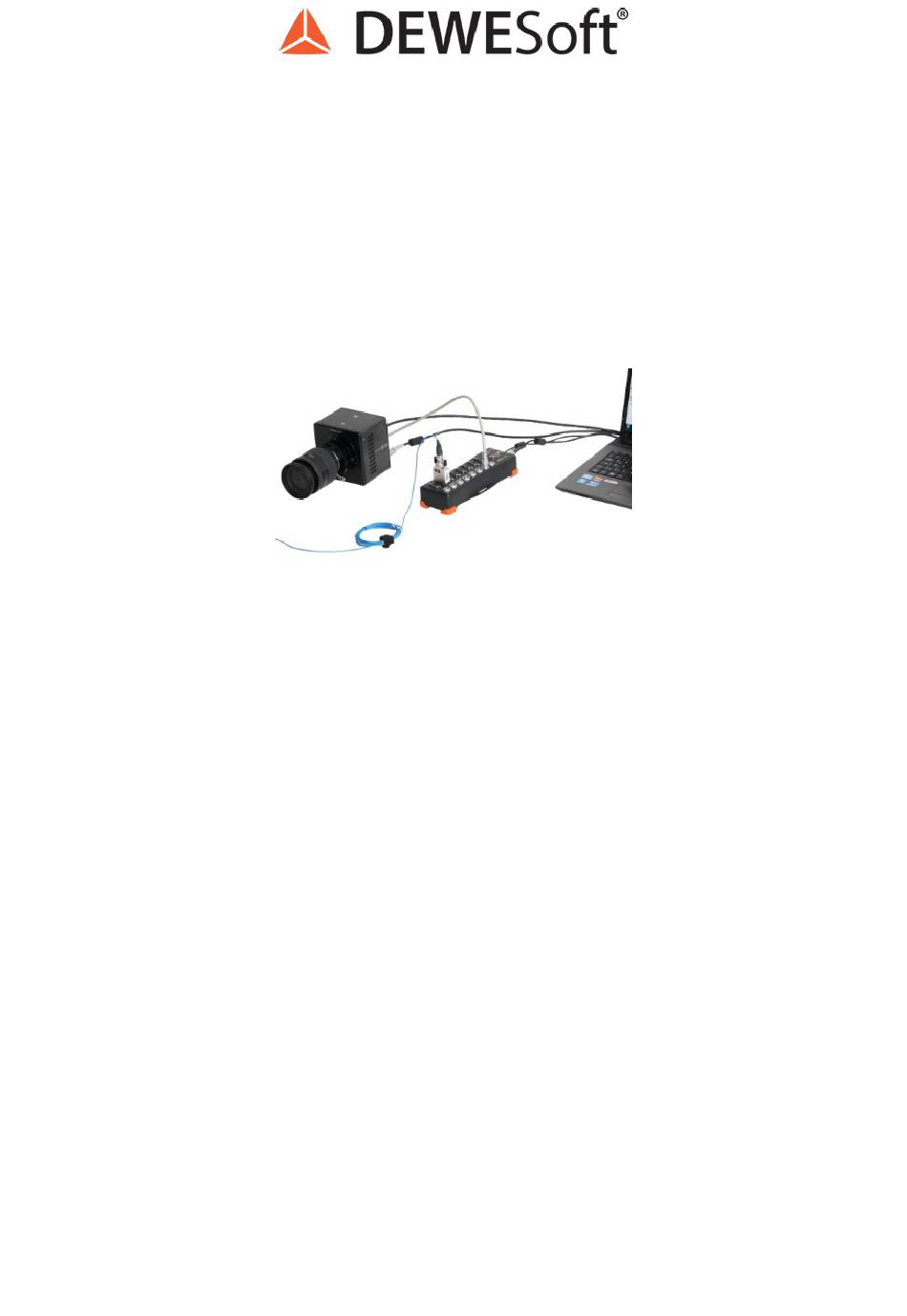

  • Page 1 - Copyright © 2000 - 2021 Dewesoft d.o.o., all rights reserved. Dewesoft Video Acquisition...
  • Page 2 A wide range of cameras are supported: Low-speed cameras (up to 30 FPS): any DirectX compatible camera Medium speed cameras (up to 600 FPS VGA resolution): Dewesoft DS-CAM cameras High-speed cameras (up to 20.000 FPS at VGA resolution): where we combine data and video in post-processing or directly...
  • Page 3 Thermo cameras are supported by Optris, and Ultra-High-Speed cameras from Photron can acquire more than 2 million frames per second but in limited resolution. [Video available in the online version] DS-CAM-88c, DS-CAM-120c (gigabit-ethernet camera) DS-CAM-88 has the following specifications: resolution...
  • Page 4 Specifications: power-over-ethernet option the best performance with SIRIUS S-BOX IP67 version available auto-shutter auto-gain auto white-balance color DS-CAM-175chas the following specifications: 1456x1088 at 68 fps 640x480 (VGA) at 178 fps DS-CAM-320chas the following specifications: 728x544 at 266 fps 640x480 (VGA) at 328 fps DS-CAM-600m, DS-CAM-600c, DS-CAM-600cw (gigabit- ethernet camera) Specifications:...

  • Page 5: Specifications

    If you have multiple DS-CAM cameras, we can provide adapters for syncing, powering, and connecting multiple cameras to Dewesoft instruments. CAM-BOX Adapter box for connecting one DS-CAM-88/120 to the Dewesoft instrument. Combines Sync and Power to the camera connector. CAM-BOX1...
  • Page 6 Adapter box for connecting up to 4 DS-CAM-88/120 to the Dewesoft instrument. Combines Sync and Power to the camera connector. External GigE switch required. CAM-BOX2 Distribution box for connecting up to 4 x DS-CAM-88/120 to the Dewesoft instrument. Wide range power supply input (9-36 VDC), integrated GigE switch.
  • Page 7 If your application requires video you are not limited to using our own DS-CAM cameras. Dewesoft X software supports all compatible Direct X cameras as well as 3 party Optris thermal and Ultra-High-Speed cameras from Photron. See the complete list of supported cameras.

  • Page 8: System Requirements

    100m. Dewesoft uses OptoStream SDK for GigE communication with cameras that support the GigE Vision standard. Important: For best performance, we recommended using an SSD for storing data. A disk write rate of 100 MByte/s should be...

  • Page 9: Technical Specifications

    Technical specifications Optical DS-CAM-88c DS-CAM-120c Sony IT ICX414AL/AQ with HAD microlens, Sony IT ICX618AL/AQ with Exview HAD CCD II Image sensor progressive scan microlens Sensor type Optical size 1/2 " 1/4 " Effective chip size 6.5 x 4.9 mm 4.46 x 3.80 mm Cell size 9.9 x 9.9 um...
  • Page 10 Housing aluminum case Weight < 200 g (without lens) Storage temperature -10 °C .. +70 °C (14 °F .. +158 °F) Operating temperature 5 °C .. +45 °C (+41 °F .. +113 °F) Operating humidity 25% .. 80% (no condensation) Storage humidity 25% ..
  • Page 11 SYNC port of the SIRIUS slice. The camera frames are now in perfect sync with the analog data acquired by Dewesoft. Note: Even if the camera is connected, syncing to other SIRIUS devices is still possible, because there are different pins used on...

  • Page 12: Connecting Multiple Cameras

    Connecting multiple cameras If you need to connect more than one camera, there is a special CAM-BOX2 available, which consists of: wide-range voltage input (9-36V) an industrial Gigabit-Ethernet-Switch (without Power-over-Ethernet! No supply for DS-CAM-600!) Power and Sync distribution for up to 4 cameras. Small dimensions: 115 x 62 mm (front) and 135 mm deep Camerabox connector (mating cable connector: FGG.1B.307CLAD52) Power supply (mating cable connector: FGJ.1B.302CLLD42Z)

  • Page 13: Connections Overview

    Sync connector (mating cable connector: FGG.00.304CLAD27Z) Connections overview...
  • Page 14 CAM-BOX2 SBOX: 128GB SSD -> max 190 Mbyte/s write rate CPU: Intel Core i7 QM57; 2.0GHz; 4GB RAM camera(s) clocked by SIRIUS Dewesoft X OptoMotive OptoStreamSDK GigE Camera driver (Plugin) storing data to file, video buffer stable around 0.1% with checked "optimize for switched network"...
  • Page 15 Number of Cameras X res Y res DS-CAM 88c DS-CAM-120c Results (FPS) should be considered only as approximate MAX values. Writing speed of disk may be limiting factor (we used SSD). We recommend testing cameras with your setup at about 0.8*max FPS and higher to find where corrupted image, frame lost or buffer overrun will occur.
  • Page 16 100m. Dewesoft uses OptoStream GigE SDK for communication with cameras that support GigE Vision standard. Important: For best performance, we recommended using an SSD for storing data. A disk write rate of 100 MByte/s should be...
  • Page 17 Technical specifications Optical DS-CAM-175c DS-CAM-320c Image sensor Sony IMX273 Sony IMX287 Sensor Type CMOS CMOS Max resolution 1456x1088 728x544 Optical size 1/2.9'' (6.3 mm diagonal) 1/2.9'' (6.3 mm diagonal) Pixel size 3.45 x 3.45 um 3.45 x 3.45 um 68 FPS @ 1456x1088 116 FPS @ 1280x720 266 FPS @ 728x544 145 FPS @ 800x600...
  • Page 18 Connections On the rear side of the camera, there are two connectors. The 12pin HIROSE connector (matching part: Hirose HR10A- 10P-12S(73)) contains the power, trigger, and other digital pins. Ethernet connector pinout according to the standard. Power/trigger connector pinout 12pin Hirose connector (matching part: Hirose HR10A-10P-12S(73)) on camera rear side PIN # SIGNAL GND (for Power and RS232)
  • Page 19 SYNC port of the SIRIUS slice. The camera frames are now in perfect sync with the analog data acquired by Dewesoft. Note: Even if the camera is connected, syncing to other SIRIUS devices is still possible, because there are different pins used on the SYNC port for triggering/synching.
  • Page 20 Camerabox connector (mating cable connector: FGG.1B.307CLAD52) Power supply (mating cable connector: FGJ.1B.302CLLD42Z) Sync connector (mating cable connector: FGG.00.304CLAD27Z)
  • Page 22 100m. Dewesoft uses OptoMotive GigE SDK for communication with cameras that support the GigE Vision standard. Important: For best performance, we recommend using a Core i5 CPU or better, 4 GB RAM, and SSD for storing data.
  • Page 23 Technical specifications Power Supply voltage Power-over-Ethernet (42-57V) Power consumption Digital I/O Recommended input voltage 0 to 3,3 VDC Voltage level representing logical 0 0 to +0,8 VDC Undefined state between 0 and 1 > +0,8 VDC to +2,0 VDC Voltage level representing logical 1 >...

  • Page 24: Connectors And Pinout

    Ethernet connector. The pinout of the Ethernet connector is according to the standard. Note that pins 3 and 4 are used for clocking the camera. Pins 1 and 2 are reserved for synching multiple Dewesoft instruments!
  • Page 25 SIRIUS S-Box with one SIRIUS on top, connected to the DS-CAM-600 (PoE injector in between) Resolutions and framerates HINT: Results (FPS) should be considered only as approximate MAX values. It depends on the system performance (CPU, JPEG compression, hard disk). We recommend testing cameras with your setup at about 0.8*max_FPS and higher to find where corrupted image, frame lost or buffer overrun will occur.
  • Page 26 / Camera and see if the GigE button is available. If not, execute the full installer again, select Modify and reinstall the option. If there is no option to add GigE, run the Dewesoft installer once again, choose Modify Dewesoft and select the option GigE camera under the Extension section.
  • Page 27 ZIP file includes: GigE manual GigECamera.cdv file GigECameraDef.xml file OptoMotive OptoStreamSDK exe file Step by step instruction Install OptoStreamSDK. Note that you must be an administrator, not just a user with admin rights. After the installation be sure that "OptoStream GEV Filter Driver" is installed under Local area connection properties. Note that "filter driver" filters out all packages that are not GigE on the hardware level, so the camera will work much faster than without the filter.
  • Page 28 X, copy the file GigECamera.cdv into the Dewesoft X Addons folder, usually located in Dewesoft\Bin\X3\Addons. Copy and replace your existing Dewesoft.exe with the one that you downloaded. Start Dewesoft X and go to Settings -> Devices. For triggered mode, when...
  • Page 29 enough power to additionally do the online compression. Depending on the measurement duration, the video file can get very big. For compression after the measurement set the appropriate compressor in AVI file type for compression. We recommend downloading the XVID codec. In Analysis mode you can then select your datafile and click AVI compress.
  • Page 30 The shutter bar determines the light exposure duration (brightness). If the light is too dark, use the gain bar to increase brightness by software. The JPEG quality is inverse to the compression. 80% means good quality and low compression. With the HDR option, you are able to increase the dynamic from 60dB up to 120dB if you have an image with a low dynamic range (e.g.
  • Page 31 Is the Trigger cable connected? Try decreasing the Shutter value Check-in hardware setup if the Dewesoft USB device is set to Master or Standalone Disable Trigger in hardware setup and check if it's working in free-run mode (cable problem?) Camera not found (not in OptoStreamViewer, not in Dewesoft) Check Windows Firewall settings.
  • Page 32 Cameras not found in Dewesoft X (yellow mark inOptoStreamViewer) Not able to use the cameras. Please wait a little bit (until IP is assigned). If that does not help, ensure the computer network IP is set to automatic, as the camera supports DHCP.
  • Page 33 Cameras are not working in Dewesoft X If you followed the step-by-step installation procedure, but still the camera is not working in Dewesoft X, you can try to copy the used dll's manually: Copy the 32-bit dll's from C:\Program Files\OptoMotive\GigEVisionSDK\bin\Win32 and C:\Program...
  • Page 34 Cam video buffer. It should stay stable at low values.
  • Page 35 Testing 6 cameras DS-CAM-600...
  • Page 36 How to choose the right camera So which camera to choose for a certain application? It is clear that the thermo vision cameras have their special applications while the high-speed cameras are used to acquire short triggered snapshots where we need extreme video rates to capture crashes, explosions, and other fast events.
  • Page 37 How to connect a Webcam? We connect the webcam to our computer via USB cable. [Video available in the online version]...
  • Page 38 How to setup the Video? The next step is to set up the video channel. Go to the Video section. In the Camera options section where the webcam should be displayed if it is installed correctly. Click the Unused button to switch on the camera (turn it into Used) and end setup with the Setup button.
  • Page 39 We have two camera types connected, DirectX (which recognizes webcams and camera phones) and GigE. In the setup screen of Dewesoft X, we see all connected cameras. We select needed cameras. First we set up the camera. We set the frame rate to and resolution. The next step is to set the shutter speed. Higher shutter speeds...
  • Page 40 either a strong light or we will need to increase the gain. On the other hand, this will increase the noise in the picture and will reduce the picture quality. The settings of the camera depend on the capabilities of the camera. There are huge differences between one webcam and the next in terms of speed, picture quality, and available functions.

  • Page 42: How To Perform A Measurement

    How to perform a Measurement? So let's acquire the data and see the results. The high-speed camera is synchronized exactly to the analog data therefore we can compare the switching times with analog voltage and current. The current is flowing through the fuse for approximately 20 msec before it really switches off and we can see nicely when the spark switches the fuse off.
  • Page 43 Now if we look at the repeated measurement, both cameras show approximately the same time of the event, however, the webcam shows only one frame when the fuse switched off while the DS-CAM camera shows quite a several frames to be able to also see the spark, the movement of the coil and the switch.
  • Page 44 Dewesoft X, only few steps are necessary. After acquisition of the video file and the Dewesoft data, please copy the *.avi camera file to the directory where the Dewesoft data file is located. [Video available in the online version] After this, open Dewesoft X and enter the Analysis mode.
  • Page 45 Trigger time can initially be selected from trigger (so long as the storing of analog data has been triggered from the same trigger source) or in the relative time from start of measurement in seconds. When finished, Dewesoft X will go to the video screen to see the result of the synchronization and the recorder will show the video frame ticks aligned with the analog data.
  • Page 46 In order to store the synchronization info for future post-processing once you are done and satisfied don't forget to choose Save.

  • Page 47: System Preparation

    Photron Highspeed-Camera Usually, the camera is operated in the Start on Dewesoft trigger mode, using a Dewesoft Counter input for the highest precision. System requirements Dewesoft measurement instrument PHOTRON highspeed camera (e.g. FASTCAM Mini UX100, 10 000 fps @ 896 x 488)

  • Page 48: Windows Network Configuration

    Windows network configuration Please enter the Control Panel, go to the Network Connections and right-click on the Port, where your Photron camera is connected to. Go to Properties and select the TCP/IPv4 protocol. Depending on the model the default IP address is usually: camera IP: 192.168.0.10 / set computer to 192.168.0.XXX.
  • Page 49 Camera TRIG_TTL_OUT pulse duration When using the Start on Dewesoft trigger option inside Dewesoft, Dewesoft does the synchronization based on the first frame captured by the camera. In the Photron FASTCAM Viewer, please go to Camera Option and increase the pulse output time from 100...
  • Page 50 Setup in Dewesoft Photron.ini file During installation, we have copied Photron.ini into the Dewesoft X Addons folder (e.g. C:\DewesoftX\X3\Addons64\). This file contains the interface type and IP address of the camera, please set it accordingly. Enabling the camera Dewesoft X go to Settings / Settings / Devices, click the add button and add the Photron FastCam.

  • Page 51: Trigger Setup

    This is the most commonly used wiring. The software triggers even on complex trigger conditions on analog input, and sends the start impulse over Ethernet. The camera sends a pulse, when the first frame is recorded, this is measured back with the very accurate Dewesoft super-counters (102 MHz timebase) for synchronization.
  • Page 52 The camera will start with the beginning of data recording (streaming). This is of less practical usage, because depending on the framerate, measurement duration and camera onboard memory, the acquisition time is limited. Store on Dewesoft trigger - example For connection example, we want to acquire both analog and video data of a hit of an accelerometer with the fingertip.
  • Page 53 The trigger setup looks like shown below. We select fast on trigger, rising edge with a level of 1g. The pre-time is 100ms, post time 500ms. Dewesoft supports complex trigger conditions, such as simple edge, filtered edge, window, pulse width, slope, delta...

  • Page 54: Camera Setup

    Camera setup In the video setup, you can see all available cameras. Set the camera to Used, then enter the Setup. The screen on the next page shows the Trigger setup and the Camera settings, as well as a live preview for adjusting the setup (focus, light source, etc).
  • Page 55 Please select the Counter and adjust the level to 0.5, as this is a digital channel (0 to 1). When the camera is started over Ethernet, depending on system load and operating system there will be a delay to the storing trigger. This is usually around 50...100ms (in the example below around 70ms, red line).
  • Page 56 If you copy these files from the Photron CD to Dewesoft Addons folder, they will be used automatically. Files are optimized for 1000 fps frame rate and picture will not be optimal when other frame rates are selected. If you do not have these files or factory calibration data is not satisfying or for any other reason the picture is grainy and/or contains fixed shading pattern, you have to calibrate the sensor to get a better picture.

  • Page 57: Video Download

    Video download After the measurement, Dewesoft will show the whole recorded video data. You can navigate without noticeable delay, however, it is only accessing the camera onboard memory. If you have verified the data to be good, you can finally download the video file to the computer.
  • Page 58 Frequently asked questions Camera not detected in PFV Camera model type not checked in PFV device list:...
  • Page 59 In Photron FASTCAM Viewer, go to Configuration and select all camera models from the Device List. Now it will search for all of them. Try connecting multiple times Sometimes when connecting with PFV, the camera is not found in the first place. Please try again several times. Network troubles Disable Windows firewall, disable anti-virus, check IP, reset the camera to factory defaults.
