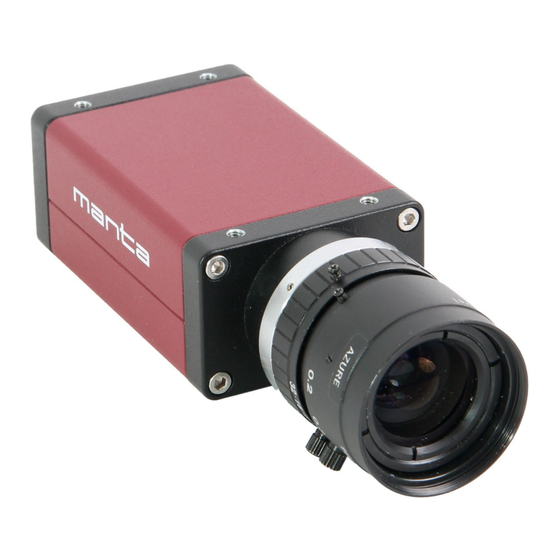

DS-CAM-88c / DS-CAM-120c
/ DS-CAM-175c / DS-CAM-320c

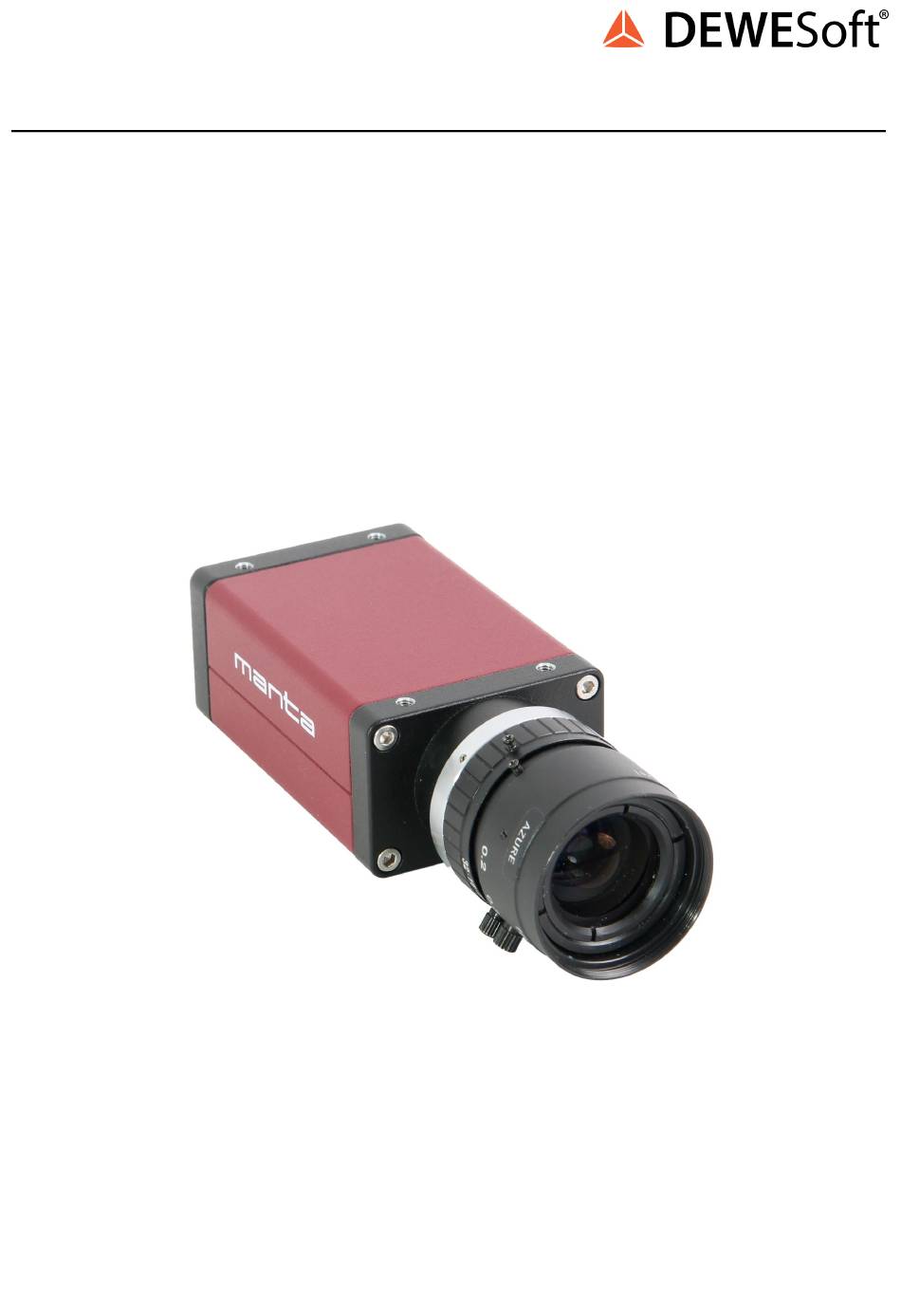

TECHNICAL REFERENCE MANUAL
DS-CAM-88c / DS-CAM-120c/ DS-CAM 175c/ DS-CAM 320c - V20-1








1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-CAM-88c and is the answer not in the manual?

Questions and answers

Related Manuals for DEWESOFT DS-CAM-88c

Summary of Contents for DEWESOFT DS-CAM-88c

  • Page 1   DS-CAM-88c / DS-CAM-120c  / DS-CAM-175c / DS-CAM-320c  TECHNICAL REFERENCE MANUAL  DS-CAM-88c / DS-CAM-120c/ DS-CAM 175c/ DS-CAM 320c - V20-1                  1 ...

  • Page 2: Table Of Contents

    8.2. General Safety Instructions 36  8.2.1. Environmental Considerations 36  8.2.2. Product End-of-Life Handling 36  8.2.3. System and Components Recycling 36  8.2.4. General safety and hazard warnings for all Dewesoft systems 37  DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 2/40   ...
  • Page 3 DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c  TECHNICAL REFERENCE MANUAL      9. Documentation Version 40      DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 3/40   ...

  • Page 4: About This Document

      Hint   It gives you a hint or provides additional information about a subject.      Example   Gives you an example of a specific subject.        DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 4/40   ...

  • Page 5: Key Features

    High-performance PC (Core i5 CPU or better recommended, 4 GB RAM and high performance  ● SSD storage disc)   DewesoftX®  ● The latest OptoStream SDK  ● Dewesoft GigE driver (cdv)  ●     DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 5/40   ...

  • Page 6: Technical Data

    1.73 (H) x 1.14 (W) x  1.73 (H) x 1.14 (W) x  3.40 (D) in 3.40 (D) in 3.40 (D) in 3.40 (D) in Lens mount C-mount C-mount C-mount C-mount DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 6/40   ...
  • Page 7 +8 to +30 VDC +8 to +30 VDC Power-over-  option option option option Ethernet Power  3.6 W 3.6 W 3.2 W 3.2 W consumption   Illustration 1: Technical drawing with basic dimensions  DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 7/40   ...
  • Page 8 DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c  TECHNICAL REFERENCE MANUAL          Illustration 2: Technical drawing of aluminum adapter plate   DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 8/40   ...

  • Page 9: Scope Of Supply

    RJ45 CAT 6 cable for data  ALU_PLATE_ADAPTER  Aluminum plate adapter with 3x 1/4-20 UNC thread  Power and sync cable, 12-pin Hirose connector to 7-pin Lemo  CABLE-H12f-L1B7m-3m  connector. For CAM-BOX usage only.   CASE_XTRABAG-300  Carrying bag     DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 9/40   ...

  • Page 10: Optional

    Power and sync cable, 12-pin Hirose connector splitted to  H12f-L1B7m-L00B4m-3m  7-pin Lemo connector and 4-pin Lemo connector. For  DEWE-43 usage only (max 1 per unit).   DS-CAM-IP67  IP67 upgrade kit     DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 10/40   ...
  • Page 11 Refer to the tables below      Pin  Name  Description  +12V  1  Power (+9...+36 V DC)  GND  Ground  1        Illustration 16: Pinout of marked connector for  H12f-L1B2m-L00B4m-3m cable.       DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 11/40   ...

  • Page 12: Connections

    On the rear side of the camera there are two connectors. The 12pin HIROSE connector (matching part:  Hirose HR10A10P-12S(73)) contains the power, trigger and other digital pins. Ethernet connector pinout  according to the standard.    Illustration 2: Connecting scheme  DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 12/40   ...

  • Page 13: Power/Trigger Connector Pinout

    Camera Out 1 (open emiter, max. 20 mA)  7  Camera In GND  8  RxD (RS232)  9  TxD (RS232)  10  Camera Out Power (for digital outputs)  11  Camera In 2  12  Camera Out 2      DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 13/40   ...

  • Page 14: Sirius® Connection Example

    Even if the camera is connected, synching to other SIRIUS devices is still possible, because  there are different pins used on the SYNC port for triggering/synching.    Illustration 4: SIRIUS SBOX with 1 SIRIUS slice connected to the DS-CAM-120c (per cable H12f-L1B7m-L00B4m-3M)  DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 14/40   ...

  • Page 15: Connecting Multiple Cameras

    Gigabit-Ethernet-Switch (without Power-over-Ethernet! No supply for  ● DS-CAM-600!)   Power and Sync distribution for up to 4 cameras.   ● Small dimensions: 115 x 62 mm (front) and 135 mm deep  ●         DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 15/40   ...
  • Page 16 Mating cable connector: FGG.1B.307CLAD52    Power supply connector      Pin  Pin assignment  1  +9V...36V  2  GND           Illustration 8: Power supply Mating cable connector: FGGJ.1B.302CLLD42Z        DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 16/40   ...

  • Page 17: Connections Overview

    CLK  4  GND         Illustration 8: Sync connector   Mating cable connector: FGG.00.304CLAD27Z    4.2.5. Connections Overview    Illustration 9: DS-CAM to SIRIUS connection example.         DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 17/40   ...
  • Page 18   wired directly to the network card of the PC.   Important   If you use more than one camera use an external power supply (PS-200-L2B3f)  for CAM-BOX1.      DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 18/40   ...

  • Page 19: Benchmarks

    "optimize for switched network"  ●   Achieved framerates (fps)  1 camera  x res  y res  DS-CAM-88c  DS-CAM-120c  640  480  88  120  320  240  165  195  320  120  280  300  DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 19/40   ...

  • Page 20: Installation

    To check if the drivers are installed, go to Options → Installed extensions and see if the  checkbox “GigE” is visible. If not, execute the full installer again, choose the Modify option and enable  the checkbox of GigE camera.   DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 20/40   ...
  • Page 21 DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c  TECHNICAL REFERENCE MANUAL          Illustration 6: Installation  The last DewesoftX® full installer can be downloaded here:  https://download.dewesoft.com/list/dewesoftx    DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 21/40   ...

  • Page 22: Manual Installation

    5.2. Manual installation   5.2.1. Required files  OptoStream SDK for GigE Vision  Go to ​ h ttps://download.dewesoft.com/list/plugins/​ and download GigE package   ● It includes the latest OptoStream SDK and Dewesoft driver for GigE Vision.  ● DewesoftX®  Available from ​ ttps://download.dewesoft.com/list/dewesoftx   ●  ...

  • Page 23: Step-By-Step Instruction

          Hint   You need to be logged into the Dewesoft website to download the latest development  versions of DewesoftX®.  5.2.1. Step-by-step instruction  1st step: Install OptoMotive_OptoStreamSDK   Note that you must be an administrator, not just a user with admin rights! Restart the PC after ...
  • Page 24   You should avoid using OptoStreamViewer and DewesoftX® in parallel.     4th step  To enable the camera in DewesoftX® copy the file “GigECamera.cdv” into the Dewesoft Addons folder,  usually located in “C:\DewesoftX\Bin64\Addons64\GigeCam”.    5th step   Run the "Dewesoft DCOM Registration” to register the plugin. ...
  • Page 25 (such as DEWE-43 for example) is set to Automatic or Clock/Trigger:    Illustration 11: Options --> Settings: Set device to Automatic (Standalone) or Clock/Trigger                  DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 25/40   ...
  • Page 26 For manual compression after the measurement set the appropriate compressor in “AVI file type for  compression”. We recommend the XVID codec. In Analysis mode you can then manually select your  datafile and click “AVI compress”.    Illustration 13: AVI compress after measurement    DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 26/40   ...
  • Page 27 Go to Ch. Setup, click the Video tab, click the Unused button to enable the video channel.    Illustration 14: DewesoftX® Channel setup → add Video  Hint  Ensure the firmware version of Dewesoft hardware is up to date, otherwise follow the  instructions of how to do it in the ​ U pdating firmware​ article.  ...
  • Page 28 Enter key    Use the “Advanced Settings”, if you want to change specific parameters of the camera, such as the  custom resolution (AOI, area of interest) for instance.  DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 28/40   ...
  • Page 29 DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c  TECHNICAL REFERENCE MANUAL        Illustration 18: Advanced settings        DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 29/40   ...

  • Page 30: Troubleshooting Guide

    Not able to use the cameras. Please wait a little bit (until IP is assigned). If that does not help, ensure the  computer's network IP is set to automatic, as the camera supports DHCP.  Further troubleshooting, most probably the computer and the camera are not in the same subnet.  DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 30/40   ...
  • Page 31 “Set IP to device”; use the same subnet as the computer, example:   PC: 192.168.1.120, Subnet 255.255.255.0   Camera: 192.168.1.123, Subnet 255.255.255.0  The IP is ok, if the cameras are found with a red mark (see Illustration above), close OptoStreamViewer  and start DewesoftX®.  DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 31/40   ...
  • Page 32 Also check if you really have a Gigabit-Ethernet network card, not only 100Mbit/s.   ● Check if the LAN cable is at least of CAT5 quality, if you have longer cable lengths it should be  ● even better.   DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 32/40   ...
  • Page 33 Press <Ctrl>+<Shift>+<P> in DewesoftX® Measure mode. On the right side the performance  ● monitor will appear. Watch the Cam video buffer. It should stay stable at low values.    Illustration 20: IP address problem    DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 33/40   ...

  • Page 34: Warranty Information

      7.2. Support  Dewesoft has a team of people ready to assist you if you have any questions or any technical difficulties  regarding the system. For any support please contact your local distributor first or Dewesoft directly.   ...

  • Page 35: Printing History

    When used in text representing the company, product or  technology name, the ® sign is not used. The Dewesoft triangle logo is a registered trademark but the ®  sign is not used in the visual representation of the triangle logo. ...

  • Page 36: Safety Instructions

    Failure to comply with these precautions or with specific warnings elsewhere in  this manual violates safety standards of design, manufacture, and intended use of the product.  Dewesoft GmbH assumes no liability for the customer’s failure to comply with these requirements.    ...

  • Page 37: General Safety And Hazard Warnings For All Dewesoft Systems

    REMOVE POWER and do not use the product until the safe  operation can be verified by service-trained personnel. If necessary, return the product to  Dewesoft sales and service office for service and repair to ensure that safety features are  maintained. ...
  • Page 38 This product has left the factory in safety-related flawlessness and in proper condition. In order to  ● maintain this condition and guarantee safety use, the user has to consider the security advice  and warnings in this manual.  DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 38/40   ...
  • Page 39 IEC 61326-3-1.    Fire-alarm and safety-alarm systems, intended for the protection of buildings, are excluded from the  scope of IEC 61326-3-1        DS-CAM-88c / DS-CAM-120c / DS-CAM-175c / DS-CAM-320c DS-V20-2 39/40   ...
  • Page 40 Added FAQ “GigE plugin is not found in DEWESoft”  1.0.9  26.11.13  Added FAQ “Maximum frame rate @ VGA resolution only 36 fps”  1.1.0  22.12.14  Merge of DS-CAM-88c and DS-CAM-120c into one manual added new  benchmarks for DS-CAM-88c  V20-1  05.10.20  New template  V20-2 ...
