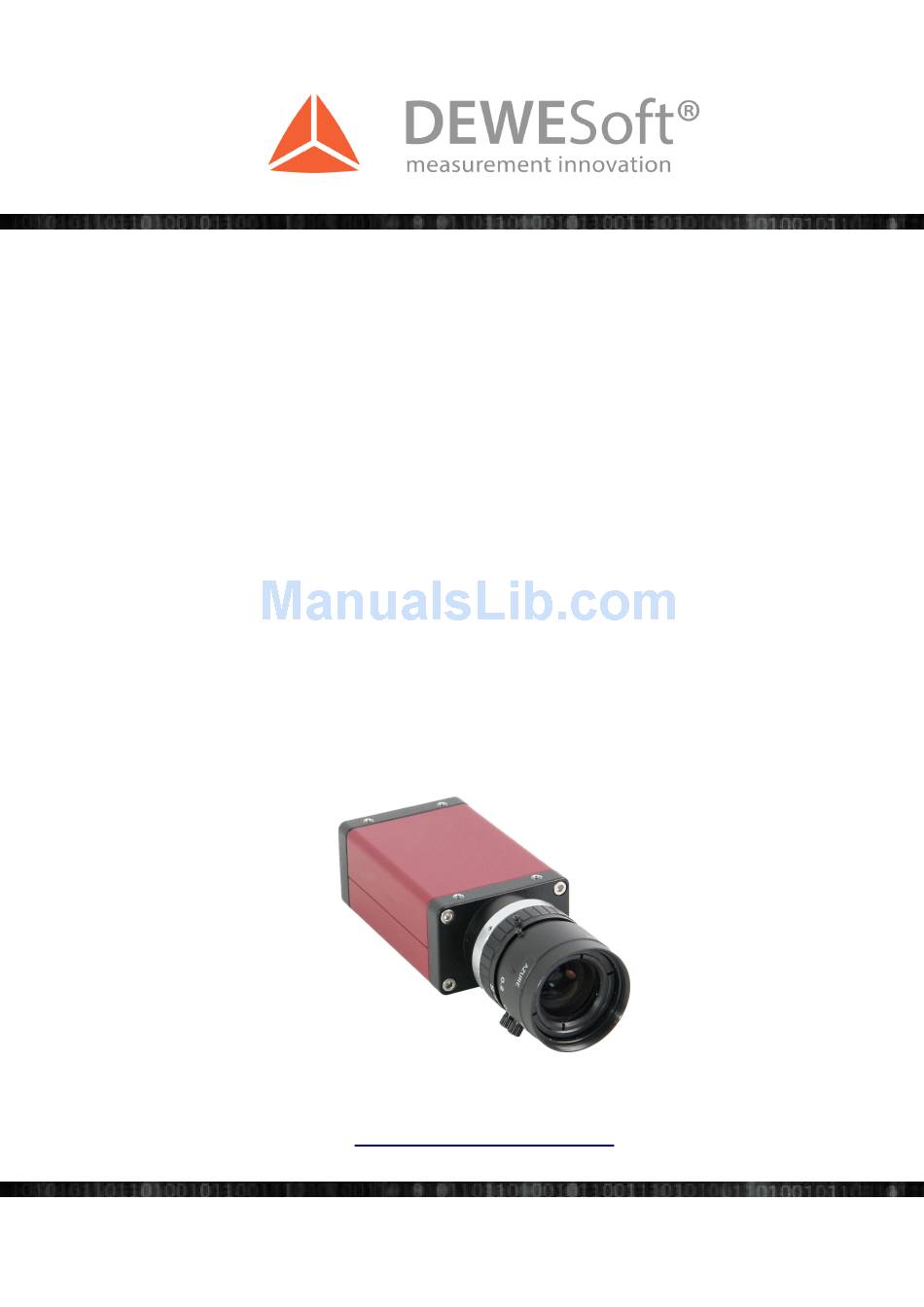

DS-CAM-88c / DS-CAM-120c
Gigabit-Ethernet Camera
Technical Reference Manual
v 1.1.0
www.dewesoft.com
measurement innovation
measurement innovation
measurement innovation
measurement innovation
measurement innovation
measurement innovation
measurement innovation
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DEWESOFT DS-CAM-88c
Summary of Contents for DEWESOFT DS-CAM-88c
- Page 1 DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DS-CAM-88c / DS-CAM-120c Gigabit-Ethernet Camera Technical Reference Manual v 1.1.0 www.dewesoft.com measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation...
-
Page 2: Table Of Contents
2.2.1Power/Trigger connector pinout..................4 2.2.2SIRIUS connection example....................5 2.2.3Connecting to existing DEWETRON systems...............6 2.2.4Connecting multiple cameras.....................7 2.2.5Connections Overview......................9 2.3Benchmarks..........................10 3Installation............................11 3.1DEWESoft Fullinstaller......................11 3.2Manual update (camera driver and DEWESoft)...............11 3.2.1Step-by-step instruction....................11 4FAQ..............................17 5Documentation Version........................21 measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation... -
Page 3: 1Key Features
The benefits are: high speed data transfer rates up to 1GBit/s (based on 1000Base-T) connectible to every standard GigE Ethernet port and cable lengths up to 100m. Dewesoft uses Smartek GigE SDK for communication with cameras that support GigE Vision standard. IMPORTANT For best performance we recommended using a SSD for storing data. -
Page 4: Specifications
DS-CAM-88c / DS-CAM-120c Technical data DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ 2 Technical data 2.1 Specifications 2.1.1 Optical DS-CAM-88c DS-CAM-120c Image sensor Sony IT ICX414AL/AQ with HAD Sony IT ICX618AL/AQ with Exview microlens, progressive scan... -
Page 5: 2Technical Data
DS-CAM-88c / DS-CAM-120c 2Technical data DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ 2.1.3 Mechanical External dimensions (H x W x L) 86.4 x 44.0 x 29.0 [mm] (3.40 x 1.73 x 1.14 [in]) Housing aluminum case Weight <... -
Page 6: Connections
DS-CAM-88c / DS-CAM-120c Technical data DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ 2.2 Connections On the rear side of the camera there are two connectors. The 12pin HIROSE connector (matching part: Hirose HR10A- 10P-12S(73)) contains the power, trigger and other digital pins. Ethernet connector pinout according to the standard. -
Page 7: 2Sirius Connection Example
Note: Even if the camera is connected, synching to other SIRIUS devices is still possible, because there are different pins used on the SYNC port for triggering/synching. Illustration 4: SIRIUS SBOX with 1 SIRIUS slice connected to the DS-CAM-88c (or DS-CAM-120c) (per cable H12f-L1B7m-L00B4m-3M) -
Page 8: 3Connecting To Existing Dewetron Systems
Connect EXT_CLK1 (pin 17) to CLK of the Lemo 00 connector of the camera (pin 3, see 2.2.1). Connect DGND (pin 37) to GND of the Lemo 00 connector (pin 4, see 2.2.1) Set the pin EXT_CLK1 to “Video” in DEWESoft hardware setup Illustration 5: DEWETRON Orion-1622-100 DSUB 37 pinout... -
Page 9: 4Connecting Multiple Cameras
DS-CAM-88c / DS-CAM-120c 2Technical data DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ 2.2.4 Connecting multiple cameras Illustration 7: CAM-BOX2 If you need to connect more than one camera, there is a special “CAM-BOX2” available, which consists of... - Page 10 DS-CAM-88c / DS-CAM-120c Technical data DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ Illustration 9: CAM-BOX2 pinout measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation Document-Version: 1.1.0 www.dewesoft.com Page 8/21...
-
Page 11: 5Connections Overview
DS-CAM-88c / DS-CAM-120c 2Technical data DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ 2.2.5 Connections Overview measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation Page 9/21 www.dewesoft.com Document-Version: 1.1.0... -
Page 12: Benchmarks
DS-CAM-88c / DS-CAM-120c Technical data DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ 2.3 Benchmarks The following tests were done with SIRIUS SBOX and 1 to 4 cameras connected to the CAM-BOX2. Setup: 1 to 4 cameras connected over CAM-BOX2 SBOX: 128GB SSD ->... -
Page 13: 3Installation
3 Installation 3.1 DEWESoft Fullinstaller Usually all the drivers come with the DEWESoft Fullinstaller, if you select the option “GigE camera driver” during installation. To check if the drivers are installed, go to Settings → Hardware setup → Video and see if the checkbox “GigE” is visible. If not, execute the fullinstaller again, select Modify and reinstall the option. - Page 14 Connect the camera to the PC via Ethernet cable and Power/Trigger-cable. See connection example shown in 2.2.2. The DS-CAM-88c/120c supports DHCP, so just set your computer's IP address to automatic and wait until the IP is assigned. To test if the camera is working you can run Smartek GigEVisionClient.
- Page 15 Copy and replace your existing DEWESoftX.exe with the one downloaded. Start DEWESoft and go to Settings > Hardware setup > Analog. For triggered mode (DEWESoft is clocking the camera), check if your device (such as SIRIUS for example) is set to Standalone or Master: Illustration 13: Dewesoft >...
- Page 16 For the “File types for storing” you can chose between: “DVI”, which is uncompressed DEWESoft video format (takes a lot of disk space, ~35 Mbyte / s / camera @ 640x480 and 120fps, but no video size limit) – or “AVI”, the live compression will take CPU power, performance depends on the used...
- Page 17 This is done with the “USB Firmware Upgrade Utility” from http://www.dewesoft.com/download. Also the Firmware File can be downloaded there. Close DEWESoft, start the Upgrade Tool, select “DEWESoft USB” interface and firmware file and Start. After finished, it is very important to unplug power AND USB cable and reboot the SIRIUS device.
- Page 18 DEWESoft™ DEWESoft™ DEWESoft™ DEWESoft™ Illustration 17: Camera settings in DEWESoft. Use the “Advanced Settings”, if you want to change specific parameters of the camera, such as the custom resolution (AOI, area of interest) for instance. Illustration 18: Advanced settings measurement innovation...
-
Page 19: 4Faq
Is the Trigger cable connected? Try decreasing the Shutter value Check in hardware setup if the DEWESoft USB device is set to Master or Standalone Disable Trigger in hardware setup and check if it’s working in free-run mode (cable problem?) - Page 20 If the cameras are found, close GigEVisionClient and start DEWESoft. Change IP address of the camera If you manually change the IP address, please close DEWESoft, start the GigEVisionClient, right-click on the camera and select “Set IP to device”; use the same subnet as the computer, example: PC: 192.168.1.100, Subnet 255.255.255.0...
- Page 21 DEWESoft™ DEWESoft™ DEWESoft™ Cameras not working in DEWESoft If you followed the step-by-step installation procedure, but still the camera is not working in DEWESoft, you can try to copy the used dll's manually: Copy the 32-bit dll’s from C:\Program Files\Smartek\GigEVisionSDK\bin\Win32 C:\Program Files\Smartek\GigEVisionSDK\GenICam\bin\Win32_i86 DEWESoft’s Addons folder.
- Page 22 DEWESoft™ DEWESoft™ Also an overloaded DEWESoft setup (many displays, e.g. high resolution FFT instruments) will take system power. Try at first only with camera video instruments. Press <Ctrl>+<Shift>+<P> in DEWESoft Measure mode. On the right side the performance monitor will appear.
-
Page 23: 5Documentation Version
1.0.7 02.07.13 Changed name to “DS-CAM-120c”; minor hints and corrections, dimensions added 1.0.8 16.10.13 Added FAQ “GigE plugin is not found in DEWESoft” 1.0.9 26.11.13 Added FAQ “Maximum framerate @ VGA resolution only 36 fps” 1.1.0 22.12.14 Merge of DS-CAM-88c and DS-CAM-120c into one manual...
