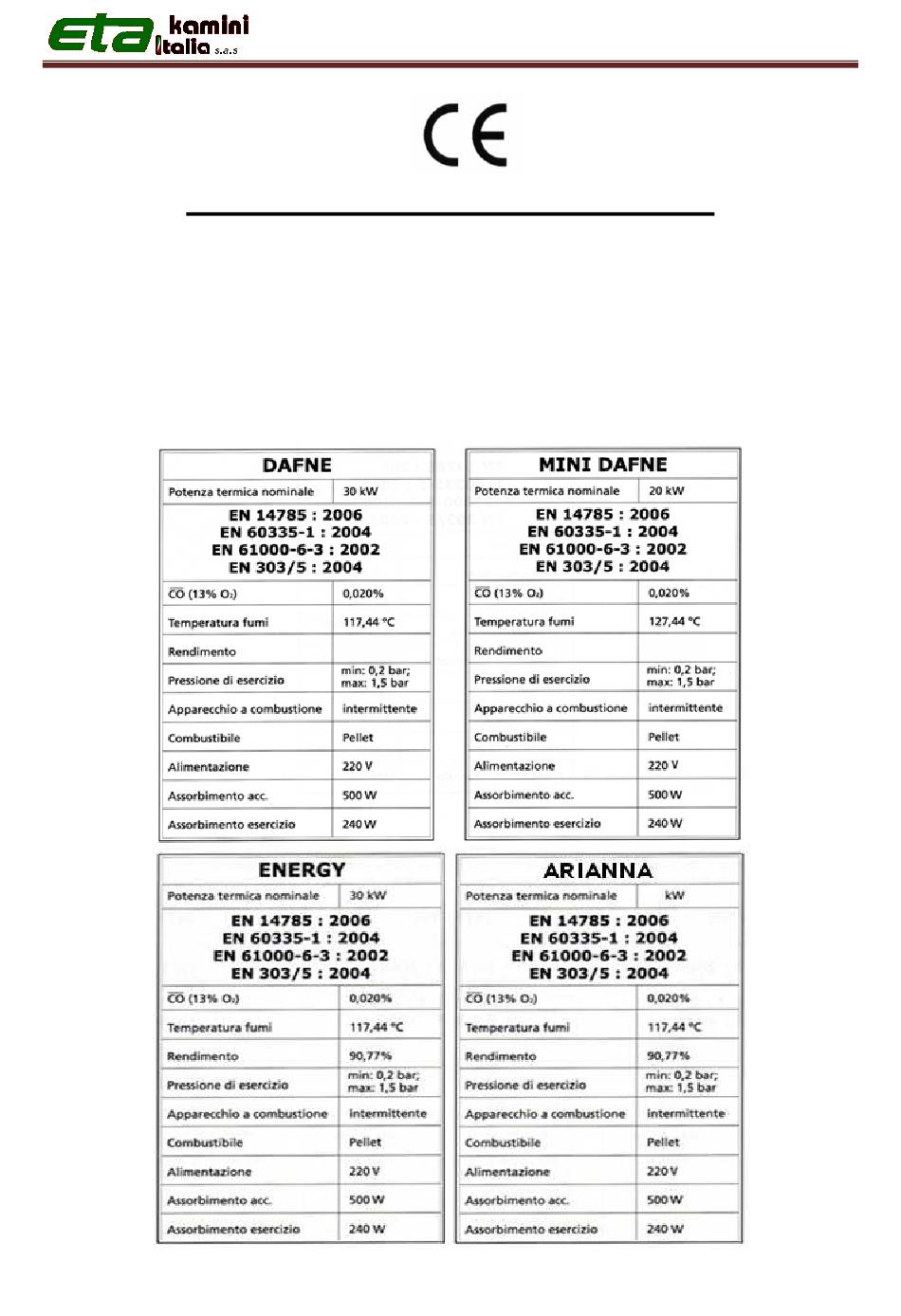

CONFORMITY DECLARATION
ACCORDING TO THE FOLLOWING EUROPEAN NORMS:
1. CEE 73/23 AND SUBSEQUENT AMENDMENT
2. CEE 89/336 AND SUBSEQUENT AMENDMENT
ETA KAMINI ITALIA S.a.s., declares under its own responsibility that Pellet burning Thermo
Stoves have been designed and built according to security norm requirements for CE brand.
Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna
91,00%
93/68 CEE
93/68 CEE
92/31 CEE
93/97 CEE
91,00%
1
Advertisement
Table of Contents
Related Manuals for eta Dafne
Summary of Contents for eta Dafne
- Page 1 2. CEE 89/336 AND SUBSEQUENT AMENDMENT 93/68 CEE 92/31 CEE 93/97 CEE ETA KAMINI ITALIA S.a.s., declares under its own responsibility that Pellet burning Thermo Stoves have been designed and built according to security norm requirements for CE brand. 91,00% 91,00%...
- Page 2 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna PRESENTATION "Thank you for choosing the thermo pellet "DAFNE / Mini DAFNE / ENERGY / ARIANNA" ETA Kamini Italy S.A.S. " This product resulted from a careful study design and competent, is built with quality materials that have been Know-worked-out by highly qualified using HDF machines components electrical and electronic choices, are of high quality.
-
Page 3: General Warnings
• This manual has been prepared by the manufacturer and is incorporated into the product and must be preserved carefully by the user. The instructions contained herein apply to both the thermo "Daphne" and for "Mini Dafne" for "Energy" and the "Arianna", having as the only element of the diversification potential of warming and the overall dimensions (see specifications techniques to p. - Page 4 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna RULES OF PROPER USE • Glass has to be cleaned when is cold, NEVER HOT; • Do not open door during operation, this would cause the release of smoke and fire sparks • In case of breakage of glass does not use boiler before did not provided to replace it;...
- Page 5 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna...
- Page 6 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna...
- Page 7 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna...
- Page 8 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna NOTA BENE La Termostufa “Arianna” è nata per il solo riscaldamento domestico, non prevede la produzione di acqua calda sanitaria ed è provvista di una valvola manuale di carico.
- Page 9 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna COMPONENTS USE In this section are listed, simplified, the components use of Thermo stove in order to give an overview of the need for use and operation of the product. • SPARK PLUGS: are positioned at the base of the brazier, used for starting combustion.
-
Page 10: Safety Devices
Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna SAFETY DEVICES Listed below are the safety devices installed on the stove. Please read this section carefully so as to control the proper operation and to avoid any failures or malfunctions due to negligence by the user in order not to encumber or seek to break up the other components of the product. - Page 11 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna FUNCTIONING The Thermo stove “DAFNE” is prepared for two functioning ways: USING ROOM THERMOSTAT Temperature you want to reach in the room has to be set on the thermostat, while the temperature of modulation of the water in the boiler, of 65 º C, is setted into parameters (H When this temperature is reached, taking the thermo regulates itself to a minimum and stays there until the maximum operating temperature (70 º...
- Page 12 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna Hot Domestic Water is continuously produced (≈10 l/min) with an increase ∆T 25º C, by a plate heat exchanger, specially installed hich constitutes a secondary circuit and separated, only for the heating of the water used for domestic purposes .
-
Page 13: Installazione
Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna INSTALLAZIONE The installation of the thermo stove should be performed by qualified personnel who, following the safety rules and technical standards, release, following an audit, a statement of compliance (conformity declaration) with the L.37/08 (ex 46/90). - Page 14 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna...
-
Page 15: Hydraulic Connection
Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna HYDRAULIC CONNECTION water connections must be made by competent or qualified, to ensure and certify compliance of the system according to the Law 37/08 (ex L. 46/90) respecting the existing legislation, in particular, referring to UNI 10683/98 and by carefully following the manufacturer's instructions. - Page 16 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna It is reported, purely by way of illustration, some examples of installation. Proper enforcement is left, however, the installation technician.
-
Page 17: Components - Connections
Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna COMPONENTS - CONNECTIONS... - Page 18 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna Particular Components...
- Page 19 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna CONTROL PANEL FUNCTIONS AND FUNCTION KEY APOWER ON/ POWER OFF The first time, on the panel display:...
- Page 20 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna At this point , setting clock. HOW TO DO: • Enter menu pushing • Proceed pushing until “SET CLOCK”, and pushing • Pusch button [+] and [-] to change houres. • Pusch to pass minutes. • Push buttons [+] e [-] to change minutes.
- Page 21 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna POWER ON Thermo stove lighting and switching off goes through the On/Off During the ignition phase lasts from 15 to 25 minutes, in this time interval the glow plugs shall to trigger the ignition of the pellets into the combustion chamber.
- Page 22 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna !!Warning!! If the thermo stove turned off the flame continue present until exhaustion of the fuel contained in the burner. This phase may last for several minutes. During shutdown the message SHUTDOWN appears on the display until the end of the transaction...
- Page 23 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna FLAME VARIATION FLAME AND POWER VARIATION Pushing the button it’s possible to change or modify flame power in order to reach the requested temperature quickly. on the display will be indicated requested temperature, whose meaning is as below: •...
-
Page 24: Manual Mode
Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna PROGRAMMING In order to enter into programmino menu and at the base functions of stove, push the key Press the key and items appear in submenus: WATER AND SMOKES TEMPERATURES; RPM FAN; SET WINTER/SUMMER > SET CLOCK >... -
Page 25: Automatic Mode
Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna AUTOMATIC MODE In the case of Thermo stove ON, depending on the mode, the display will show the following messages: MANUAL MODE AUTOMATIC MODE WEEKLY PROGRAM OPERATION To enter into weekly programm menu, in the case of automatic mode, you have to press button 5... -
Page 26: Recovery Operation
Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna On the line has visible the half-hour programmable. o Ligh On STOVE ON | ON → • Ligh Off STOVE OFF . OFF → To change half- hour push the buttons to go back and forth, while pressing buttons activates or deactivates half - hour. -
Page 27: Language Menu
Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna LANGUAGE MENU To access the LANGUAGE MENU push 6 times the kay and to choose the language desired trough the key [+] and [-], finally, to came back tomain menu push 2 times the button PARAMETERS This sections is manly used by builder and technicians for changing, when necessary, functions parameters of thermo stove. - Page 28 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna By pressing the keys you are able to rewind or advance respectivel, while trough the keys it’s possible change the number. PARAMETERS MENU section is divided as follow: PARAMETERS → ↓ HOT WATER PRODUCTION → YES / NO ↓...
- Page 29 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna TEMPERATURE MENU section is divide as follow: TEMPERATURE → ↓ IGNICTION °C SMOKES ↓ FIRE °C SMOKES ↓ MAINTENANCE °C WATER ↓ SHOUTDOWN °C WATER ↓ PUMP °C WATER ↓ FAN STOP °C SMOKES ↓ DELTA RE-STARTING °C SMOKES ↓...
- Page 30 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna ↓ STABILIZeE TIME (minutes) ↓ CLEENING IGNITION (seconds) ↓ CLEENING RESTARTING (seconds) ↓ CLEENING CYCLE (seconds) ↓ RANGE (minutes) One time imposted parameters it’s possible to exit from control menu : Pusching the button is turned to main menu.
- Page 31 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna WIRING THERMO STOVE DAFNE – MINI DAFNE – ENERGY – ARIANNA HOT DOMWSTIC WATER NOTE : In the case of thermo stove without hot domestic water, as well as for Thermo stove Arianna, electrical connections related to the flow and the three-way valve, are not present.
-
Page 32: Maintenance
Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna MAINTENANCE A good working of the system and the system duration depends from a right and periodic maintenance; for this reason we recommend as follow: • Before doing anything on the system, disconnect it from the electricity network;... - Page 33 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna YEARLY • Have it checked, if necessary, clean, all electrical and mechanical systems of which the thermo and equipped; • Inspect and clean the top of the heat exchanger, where you place the mechanism for cleaning the flue. This is done by removing the lid sealed on the top instead of the heat exchanger, in order to proceed aspiration of residual dust;...
- Page 34 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna FAILURE IDENTIFICATIONAND SOLUTION If thermo stove does not came on check thata: - There is a pressure of 1,2 bar; - There is electic connection to the network; - The door is closed; - Pellets get to the burner;...
-
Page 35: Troubleshooting
Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna TROUBLESHOOTING... -
Page 36: Warranty
Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna WARRANTY ETA KAMINI ITALIA S.a.s. guarantees your product against defects in construction and itrecognizes the validity for a period of 2 YEARS from the date of first ignition with the exception of electrical or electronic components (smoke extractor, small panel with electronic controls and electromagnetic filter), for which warranty is given by the manufacturer and covers a period of 6 MONTHS. - Page 37 Instruction book/Use/Maintenance/Warranty Dafne/Mini Dafne/Energy/Arianna...
