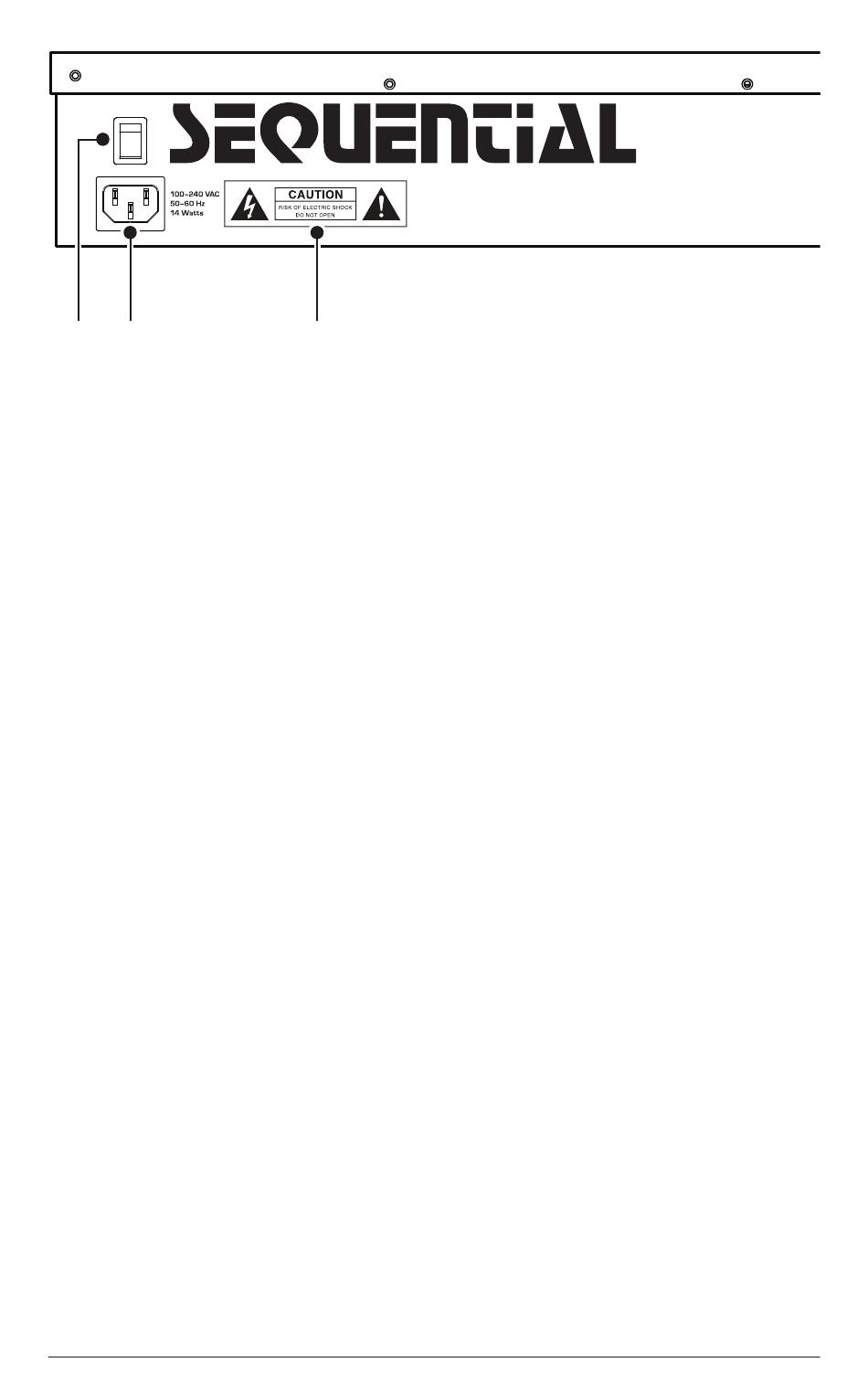

Rear Panel Connections

The rear panel of the Take 5 has connectors for power, USB, MIDI,
audio, and pedals.
This rocker switch controls power on and off to the
1 . Power On/Off—
Take 5.
Accepts a standard, grounded IEC power
2 . AC Power Connector—
cord. Operates over a range of 100 to 240 volts, 50 to 60 Hz, and 14W.
These symbols warn that you risk
3 . Electric Shock Hazard Warning—
electrical shock if you open the Take 5 enclosure. Please do not open.
For bidirectional MIDI communication with a computer. The
4 . USB—
Take 5 is a Class Compliant USB device and does not require additional
drivers when used with Mac OS or Windows.
Standard 5-pin MIDI DIN connectors for
5 . MIDI In, Out, Thru—
communicating with MIDI-equipped devices.
Accepts a momentary, normally open or normally closed
6 . Footswitch—
footswitch to control sustain or to latch the Arpeggiator on when keys are
held.
Accepts a standard expression pedal that has a variable resis-
7 . Pedal—
tor on a TRS (tip-ring-sleeve) ¼ inch phone plug. Once connected, you
can use the modulation matrix to route the pedal to control a variety of
things such as volume or filter cutoff frequency to add expressiveness to
live performance.
