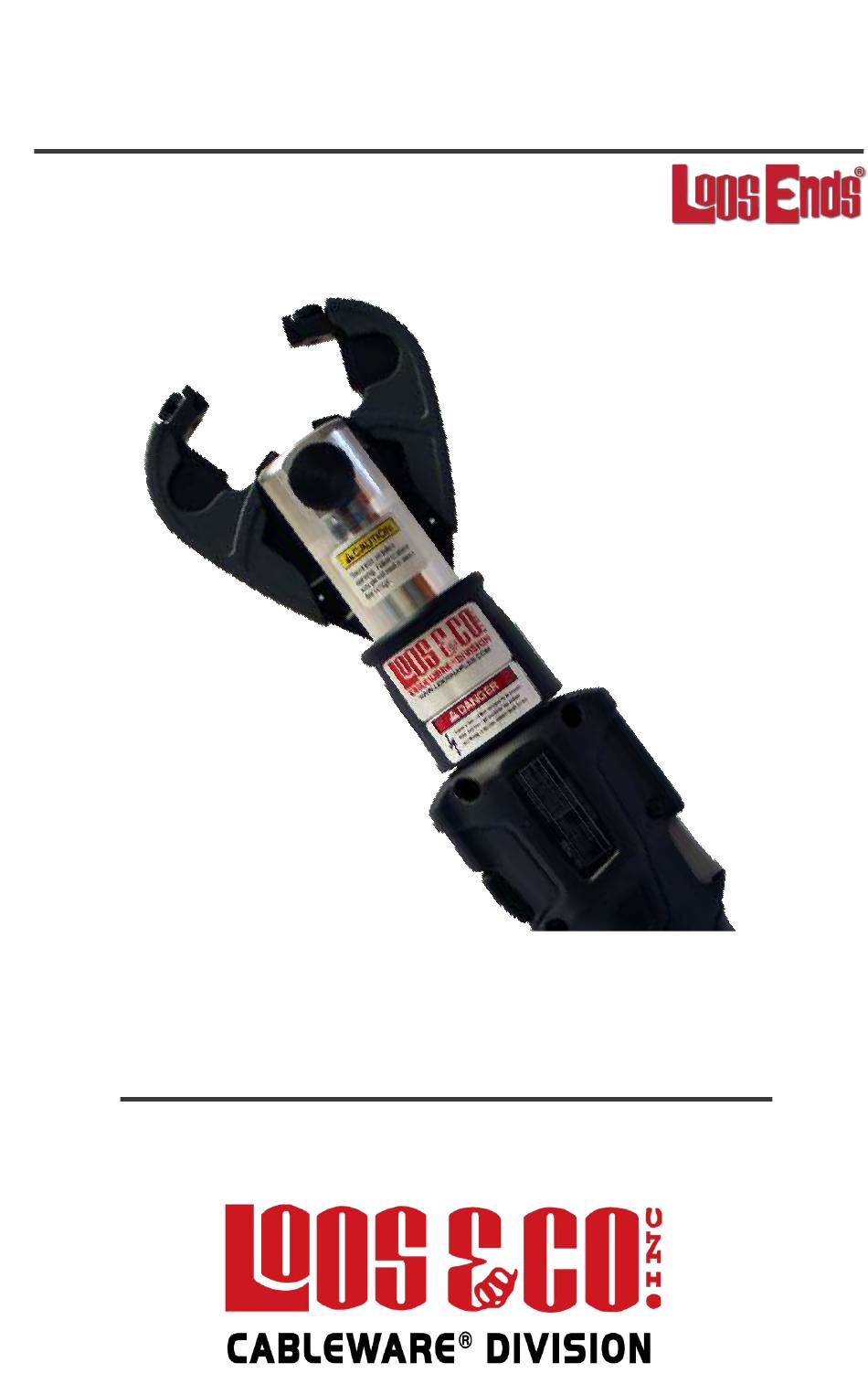

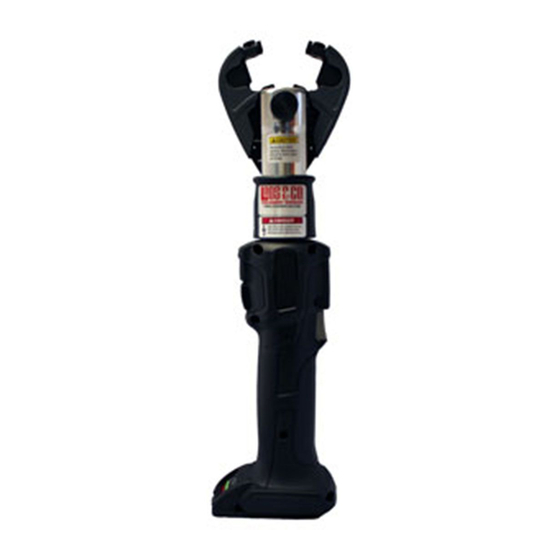

- Page 1 Locoloc ® Swaging Tools SL-7NDK-R Hand Swaging Tool Battery-Powered Operator’s Manual This manual covers SL-7NDK-R2 through R10...
-
Page 3: Specifications
SPECIFICATIONS Swages aluminum and copper oval sleeves for 1/16, 3/32, 1/8, 5/32, 3/16, 7/32, 1/4, 9/32, and 5/16 sizes wire rope. CRIMPING TOOL Output: 6 ton Weight: 5.9 lbs. with battery Size: 15.8”L x 4.5” H x 3.3” W BATTERY CARTRIDGE (BP-185) Battery Type: Lithium Ion Voltage:... -
Page 4: Standard Accessories
STANDARD ACCESSORIES • 1 Set of Dies • 2 BP-185 Lithium Ion Batteries • 1 Carrying Case • 1 Carrying Strap • 2 Gauges (GA-1P & GA-2P) • 1 Battery Charger 1/16 3/32 5/32 3/16 7/32 9/32 5/16 1 die set included. Others sold separately CARRYING STRAP GA-2P BATTERY CHARGER... -
Page 5: Charging The Battery
OPERATING INSTRUCTIONS CHARGING THE BATTERY 1. Insert the plug end into 120V power source. The LED indicator will be steady green indicating the charger is now in “stand-by” mode and ready to charge the battery. Do not plug the charger into a generator as this will likely cause the fuse in the charger to short, and will not operate. - Page 6 Ensure that you have read and understand the safety instructions included in this manual before you operate the tool. Check whether the tool is damaged. Before using the tool, always carefully check that parts are functioning correctly. Check that moving parts do not become stuck and are not damaged. DO NOT use the tool if damaged or defective parts are detected.
- Page 7 REPLACEABLE DIES (Sold Separately) 1/16 3/32 5/32 3/16 7/32 9/32 5/16 INSERT DIE SET Activate the retract trigger to open jaws of tool. Select proper die to be used and slide both pieces of the die set into jaws of the tool by unscrewing the insert screw (5) on slide of jaw, then slide die into place and hand tighten only.
- Page 8 3/16 To assure maximum holding, allow end of the cable to extend at least one cable diameter beyond the sleeve after it is compressed . Finished sleeve should look like this. Be sure sleeves have been compressed the proper number of times. (See NUMBER OF COMPRESSIONS Figure 1) Use the swaging gauge provided with the tool to check proper after swage diameter of sleeve.
- Page 9 SAFETY Read all instructions - Failure to follow all instructions listed below may result in electric shock, fire and/ or serious injury. The term “power tool” in all the warnings listed below refers to your battery operated (cordless) power tool. •...
- Page 10 • Disconnect the battery pack from the tool before making any adjustments, changing accessories, or storing. Such preventive safety measures reduce the risk of starting the tool accidentally. • Store idle tools out of the reach of children and do not allow persons unfamiliar with the tool or these instructions to operate the tool.
- Page 11 • Charge the battery pack in a well ventilated place, do not cover the charger and battery pack with a cloth, etc., while charging. • Use of an attachment not recommended may result in a risk of fire, electric shock, or personal injury. •...
-
Page 12: Led Screen
LED SCREEN ADVANCED TOOL AND BATTERY PERFORMANCE MONITORING The SERIES 7 tools feature newly developed PCB integrated into the tools hydraulic circuit for monitoring battery capacity, recording cycle count and output pressure, as well as the time, date, and location stamp. There is a visual display integrated into the tool housing on all “REC”... -
Page 13: Bluetooth Connectivity
BLUETOOTH CONNECTIVITY BLUETOOTH CONNECTIVITY The tools use a Bluetooth signal to connect to a laptop, desktop, or smart device via an APP. This connection will serve as a means by which the software can “read” and “write” data stored in the tool circuitry. The stored data can be read and exported to .pdf document or a Microsoft Excel document via the proprietary software “Huskie SERIES 7 Data Management System”, which is available for free download at... -
Page 14: Troubleshooting Guide
TROUBLESHOOTING GUIDE Troubleshooting Before You Begin 1) Make sure that the battery is charged. Recheck the battery after several minutes to make sure the battery is holding its charge. 2) Use a nonflammable contact cleaner or pencil eraser to clean the elec- trical contacts on the battery and tool. -
Page 15: Product Warranty
WARRANTY Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to back its tools as we do. PRODUCT WARRANTY REC-Series battery-operated products 5 Years 7 Pro Line Battery Operated Products 5 Years Power Tools 3 Years... - Page 16 WARRANTY (CONT.) Huskie reserves the right to determine all warranty claims. Huskie will not warranty tools containing parts or batteries not originally supplied by Huskie. Failure due to misuse, improper maintenance, misapplication, not following instructions or warnings, abuse or repairs attempted by anyone other than Huskie Tools, Inc.
-
Page 17: Limited Warranty
LIMITED WARRANTY Every tool supplied by Huskie Tools (“Huskie”) is warranted to original purchaser only, to be free of defects in material and workmanship. Subject to certain exceptions; Huskie will repair or replace any tool which, after examination, is determined by Huskie to be defective in material or workmanship for a period of five (5) years after date of purchase unless otherwise noted*. - Page 18 WARRANTY (CONT.) Warranty claims must be sent to Huskie Tools or Authorized Warranty Repair Center for evaluation, authorization, and repair. • Product return to Huskie Tools or an Authorized Warranty Repair Center, freight prepaid and insured, is required. • Huskie Tools and Authorized Warranty Repair Center contact information can be found at https://huskietools.com/resources/repairs-and-returns.
- Page 19 195 Internationale Blvd, Glendale Heights, IL 60139 Phone: (800) 860-6170 Fax: (800) 345-3767 HuskieTools.com www.loosnaples.com Toll Free: 800-321-LOOS (5667)
- Page 20 901 Industrial Blvd • Naples, FL 34104 Tel: (239) 643-LOOS • Fax (239) 643-4558 E-mail: sales@loosnaples.com • Website: www.loosnaples.com INST-37 Rev. 1.1.2021...
