Summary of Contents for Spraying Systems AUTOJET 1550+

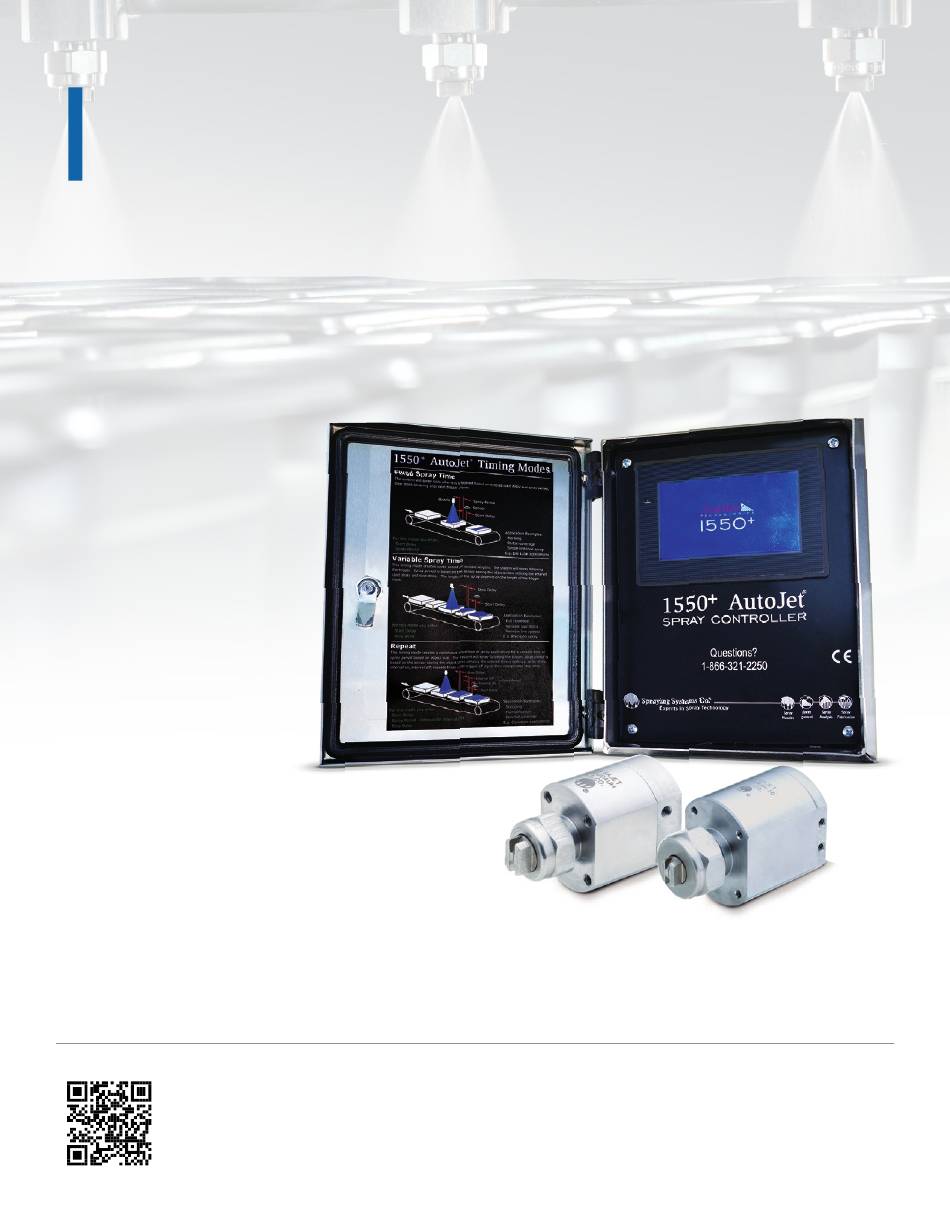

- Page 1 AUTOJET 1550+ SPRAY CONTROL PANEL ® QUICK START GUIDE Scan the QR code, or visit spray.com/autojetspraycontrol, to access manuals, videos and additional resources on the AutoJet 1550+ control panel. ®...
- Page 2 POSITION OR MOUNT 8.00" (203.2 mm) 0.27" (6.8 mm) 5.44" (138 mm) THE PANEL 0.83" (21 mm) 4 Places Position or mount the panel to a wall in a location that is close to your nozzles. Install wall anchors that are designed to support at least 50 lbs.
- Page 3 CONNECT TRIGGER OR SENSOR Connect cable to “Trig” connection that will be used 1550 to start spray sequence. Available triggers are: SPRAY CONTROLLER • Trigger cable (for use with customer-supplied trigger signal) • Sensor (type should be selected based on customer’s application) - Photo - Prox - Laser...
- Page 4 HMI operation, please refer to section 6 of the owner’s manual. HMI Screen North Avenue and Schmale Road, P.O. Box 7900, Wheaton, IL 60187-7901 USA spray.com | 1.800.95.SPRAY | Intl. Tel: 1.630.665.5000 ©Spraying Systems Co. 2020 PN: ML001550CONQS...
