Summary of Contents for Spraying Systems AUTOJET 1750+

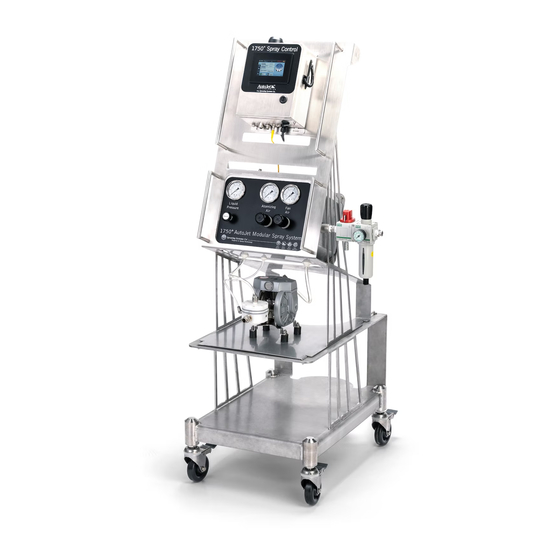

- Page 1 AUTOJET 1750+ SPRAY CONTROL PANEL ® QUICK START GUIDE Scan the QR code, or visit spray.com/autojetspraycontrol, to access manuals, videos and additional resources on the AutoJet 1750+ Spray Control Panel.
- Page 2 8.00" (203.2 mm) POSITION OR MOUNT 0.27" 5.44" (138 mm) (6.8 mm) THE PANEL 0.83" (21 mm) 4 Places Mount the panel to a wall in a location that is close 1750+ Spray Control to your nozzles. Install wall anchors that are designed to support at least 50 lbs.
- Page 3 CONNECT TRIGGER OR SENSOR Connect cable to “Trig” connection that will be used to start spray sequence. Available triggers are: 1750 SPRAY CONTROLLER • Trigger cable (for use with customer-supplied trigger signal) • Sensor, including: photo, prox, laser or thru-beam (type should be selected based on customer’s application) •...
- Page 4 REMOTE DUTY CYCLE (IF APPLICABLE) If using remote setpoint for Precision Spray Control (PSC), connect input of a 4-20mA analog signal to “4-20mA” 1750 connection to adjust the duty cycle remotely. SPRAY CONTROLLER POWER UP THE PANEL Plug into grounded (115-230 VAC, 1ph.) power source 1750 and turn on power.
- Page 5 Name your system, hit create, then connect North Avenue and Schmale Road, P.O. Box 7900, Wheaton, IL 60187-7901 USA Tel: 1.800.95.SPRAY Intl. Tel: 1.630.665.5000 Fax: 1.888.95.SPRAY Intl. Fax: 1.630.260.0842 Email: info@spray.com www.spray.com © 2020 Spraying Systems Co. All rights reserved. PN: ML001750CONQS...
