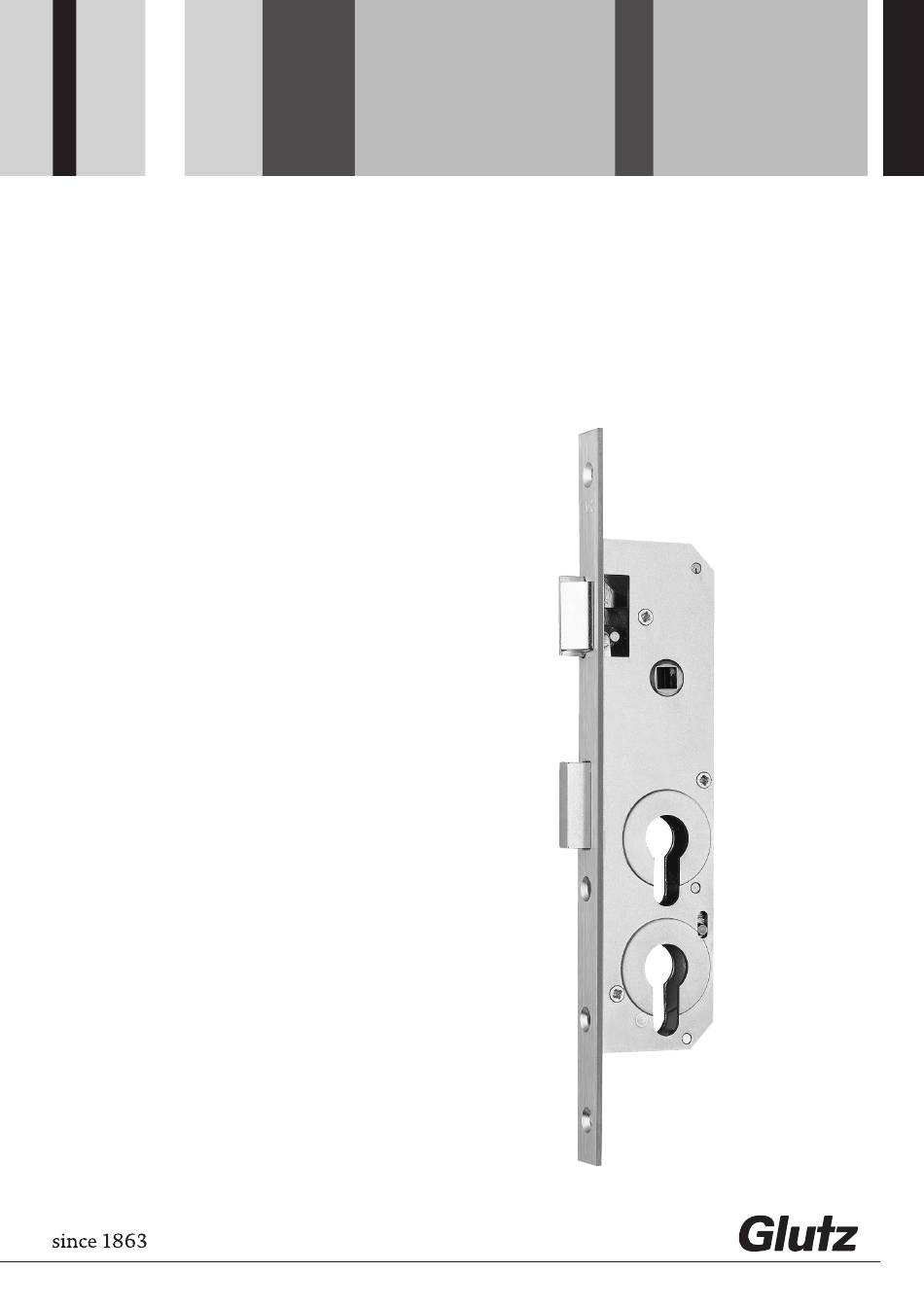

- Page 1 Assembly and Maintenance Instructions Panic Lock 1204 MA-10100...
-
Page 2: Table Of Contents
Table of Contents Important safety information General information Description of escape route door functions Contour for striking plate recess Installation overview for single-leaf panic doors Permissible clearances Data sheet / lock installation dimensions Lock assembly Lock dimensional drawing Maintenance instructions / disposal Suitable lever handles... -
Page 3: Important Safety Information
Important safety information This assembly manual applies for the assembly of the lock only. Refer to the manual accompanying the respective products for instructions for the fittings. The safety features of this product are essential for compliance with EN 179. With the exception of modifications described in this manual, no other changes of any type are permitted. - Page 4 Important safety information • Our products in compliance with EN 179 and EN 1125 guarantee a very high quality and safety standard. In order to ensure that this high standard is maintained, the doors must remain in faultless condition during and after assembly. The door must be tested for correct, smooth, and unimpeded opening and may not show any signs of warpage.
-
Page 5: General Information
General information Do not use force to strike the Do not drill in the lock area of the Do not paint or apply a coating to square spindle through the lock door leaf with installed lock. the latch and bolt. follower. - Page 6 General information Once there are signs of the Do not engage the bolt when the Do not carry the door leaf by the application of force, the lock door is open. lever handle. must be replaced. Once there are signs of the Locks must be lubricated at least Do not force double-leaf doors application of force, the lock...
-
Page 7: Description Of Escape Route Door Functions
Description of escape route door functions Function E Latch withdrawal function Application For door systems where unauthorised opening from outside should be prevented. As a basic principle, it is always possible to open the door from the danger side (escape route door function). Danger side function There is a lever handle and/or handle/push bar on the danger side. -
Page 8: Contour For Striking Plate Recess
Contour for striking plate recess 15.5 11.5 Minimum material thickness of 1.5 mm in V52557-3, Blatt 3 accordance with EN 179 04.06.14, koa Minimum material thickness of 3 mm in accordance with EN 1125... -
Page 9: Installation Overview For Single-Leaf Panic Doors
Installation overview for single-leaf panic doors 900 - 1100 Fussboden V52557-3 Blatt 6 03.03.2015, koa... -
Page 10: Permissible Clearances
Permissible clearances 2...5 mm V52557-3, Blatt 2 04.06.14, koa... -
Page 11: Data Sheet / Lock Installation Dimensions
Data sheet / lock installation dimensions 0.5 (DIN L) 0.5 (DIN R) DM+22 V52557-3, Blatt 5 04.06.14, koa... -
Page 12: Lock Assembly
Lock assembly... -
Page 13: Lock Dimensional Drawing
Lock dimensional drawing... -
Page 14: Maintenance Instructions / Disposal
Disposal: • Do not dispose of the product in local household waste. • Return the product to Glutz or dispose of it at a local municipal collection centre for waste metal. In case of enquiries, please contact: Glutz AG... -
Page 15: Suitable Lever Handles
Suitable door lever handles: Configuration of Glutz door handle fittings in accordance with EN 179 All fittings in accordance with DIN 18273 FS Stainless steel door lever handles 5033 Vicenca II, 5038 Lugano, 5046 Paris, 5054 Uppsala, 5055 Malmö, 5062 New Orleans, 5064 Oslo, 5065 Rena, 5066 Savannah, 5069 Hannover, 5098 Olten, 5099 Helsinki, 5154 Stockholm, 5162 Stella, 5083 Tulln, 5092 München, 5096 Baar, 6031 Westridge, 5074, 6045 Cham, 33000, 33001, 50040, 50935... - Page 16 Braintree CM7 2SF, United Kingdom Tel. +44 1376 348 808, Fax +44 1376 348 848 info-uk@glutz.com, www.glutz.com Glutz Singapore Pte Ltd. 50 Tagore Lane, #03-09, Entrepreneur Centre Singapore 787 494 Tel. +65 6 55 44 111, Fax +65 6 55 44 610 info-sg@glutz.com, www.glutz.com...
