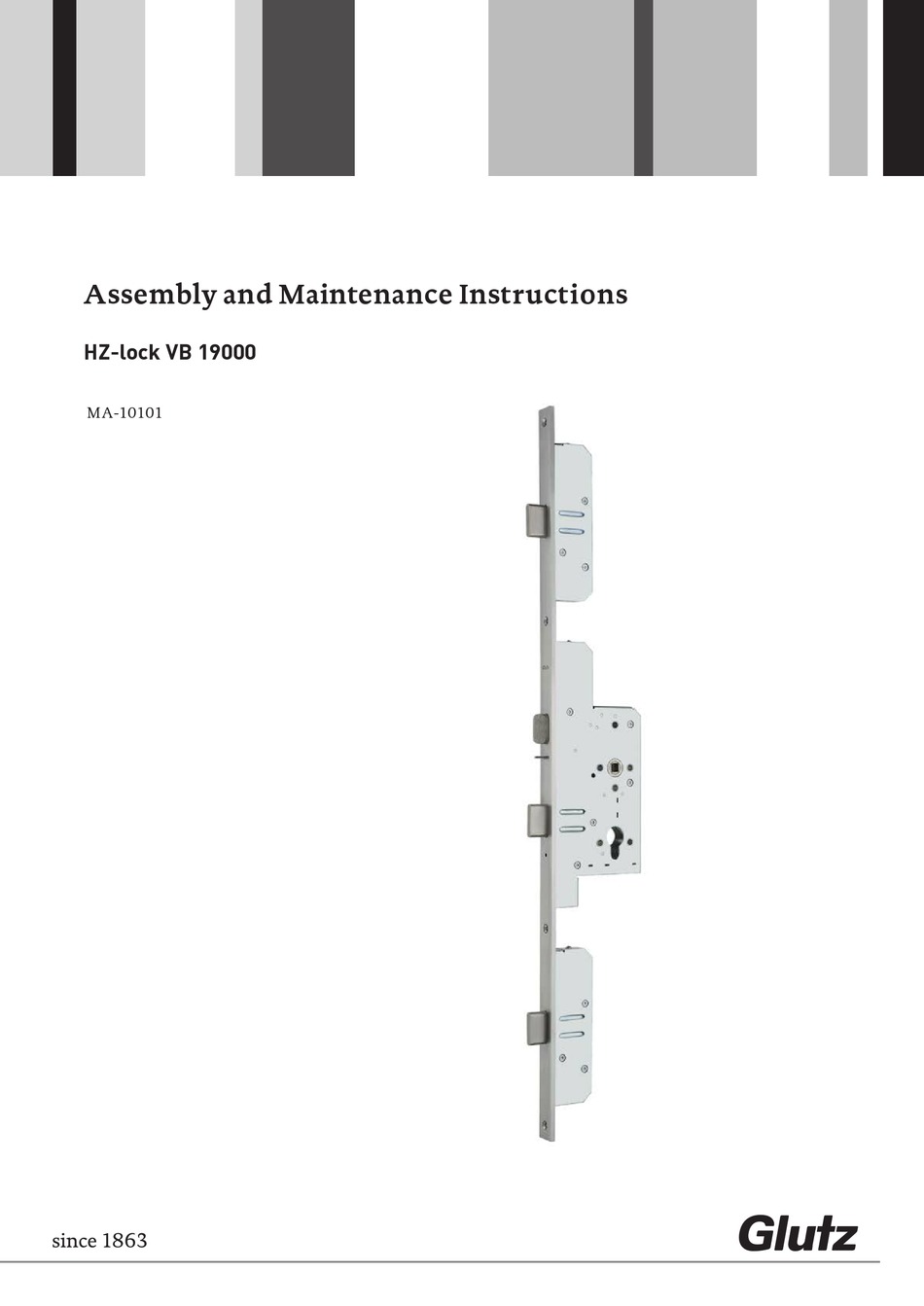

- Page 1 Assembly and Maintenance Instructions HZ-lock VB 19000 MA-10101...
-
Page 3: Table Of Contents
Important information and safety measures General information Functional description The advantages at a glance Information about the HZ-lock VB 19000 and the fittings Instructions for the user and instructions for maintenance Assembly instructions HZ-lock VB 19000 - multipoint lock Assembly requirements... -
Page 4: Important Information And Safety Measures
Important information and safety measures This assembly manual applies for the assembly of the lock only. Refer to the manual accompanying the respective products for instructions for the fittings. The safety features of this product are essential for compliance with EN 179. With the exception of modi- fications described in this manual, no other changes of any type are permitted. - Page 5 Important information and safety measures • Our products in compliance with EN 179 and EN 1125 guarantee a very high quality and safety stan- dard. In order to ensure that this high standard is maintained, the doors must remain in faultless condi- tion during and after assembly.
-
Page 6: General Information
General information Do not drill in the lock area of the Do not use force to strike the Do not paint or apply a coating to door leaf with installed lock. square spindle through the lock the latch and bolt. follower. - Page 7 General information Once there are signs of the appli- Do not engage the bolt when the Do not carry the door leaf by the door is open. cation of force, the lock must be lever handle. replaced. Once there are signs of the appli- Locks must be lubricated at least Do not force double-leaf doors cation of force, the lock must be...
-
Page 8: Functional Description
DIN 18251-3 Class 4, and thereby fulfils requirements on a lock for increased burglary resistance and high usage frequency. It has a certificate as an emergency exit lock in accordance with EN 179 with Glutz security fittings for doors weight up to 400 kg. -
Page 9: The Advantages At A Glance
The advantages at a glance 1. Multi-functionality • Burglary resistance up to resistance class RC4 • Automatic locking • Control with any access control system (even with exit control) • Emergency exit lock in accordance with EN 179 tested for doors weighing up to 400 kg •... -
Page 10: Information About The Hz-Lock Vb 19000 And The Fittings
The latch serves as the locking device. The blocking is assumed by the bolt or bolts. With the locking process of a door with HZ-lock VB 19000 security door lock, the latch first engages in the appropriate recess in the frame or in the striking plate. - Page 11 • inappropriately high stresses and torques exceeding the normal force of hand actuation are applied to the fixing system or to the security cylinder, • non-matching, e.g. dimensionally deviating or incorrectly installed locking mechanism is used, • unsuitable security plates are used or they are not mounted as required and free from tilting, •...
- Page 12 Therefore, the HZ-lock VB 19000 may only be used in combination with a matching striking plate from Glutz. If the HZ-lock VB 19000 is used with a third-party striking plate, Glutz AG cannot guarantee the fault-free functionality of the lock.
-
Page 13: Instructions For The User And Instructions For Maintenance
5. Disposal • Do not dispose of the product in local household waste. • Return the product to Glutz or dispose of it at a local municipal collection centre for waste metal. -
Page 14: Assembly Instructions
Assembly instructions Important: In order to ensure that all functions are fault-free, the assembly requirements must be studied and installa- tion must take place with precision and care! ATTENTION: • Assemble the forend carefully! • Do not kink connecting bars when inserting them into the main lock (automatically engaging) To disconnect the forend extension, insert the square spindle, apply light pressure, and carefully pull apart without bending. -
Page 15: Hz-Lock Vb 19000 - Multipoint Lock
HZ-lock VB 19000 - multipoint lock Specifications With the HZ-lock VB you fulfil various requirements and functions in compliance with regulations and in a user-friendly manner: • Burglary resistance up to RC4 • Access control • Automatic locking • Escape route door / rescue route (EN 179) •... -
Page 16: Assembly Requirements
• The safety features of this product are essential for compliance with EN 179. With the exception of mo- difications described in this manual, no other changes of any type are permitted. • The HZ-lock VB 19000 is suitable for door elements weighing up to 400 kg and for burglary-resistant door elements up to RC4. - Page 17 5. Installation of the security plate / split square spindle The HZ-lock VB 19000 together with the Glutz RR ES-2 and ES-3 security plates and the matching split square spindle has been tested as an emergency exit lock in accordance with EN 179. A stable, fixed mobile fastening of the two lever handles on the plates is important (twin glide easyfix®).
-
Page 18: Switching The Panic Function
1 Lever handle spindle part 9x9 mm 1 Allen key 1.5 mm 1 Security half or double cylinder with key (HZ-lock VB 19000: Switching from freewheeling to panic function starting with point 7, M2 x 5 mm Allen screw required) Procedure: 1. -
Page 19: Removing The Panic Function
Removing the panic function Required tools: 1 Lever handle spindle part 9x9 mm 1 Allen key 1.5 mm Procedure: 1. Fix the lower lock section with panic function side at the top on a workbench. 2. Remove the round sticker with HZ symbol next to the handle follower, which will expose a round opening in the lock case. -
Page 20: Hz-Lock Vb 19000 With Auxiliary Latch
HZ-lock VB 19000 with auxiliary latch The HZ-lock VB 19000 with auxiliary latch is used for the following requirements: • Burglary-resistant door • Doors in escape and rescue routes • Access control or remote operation • Exit control and/or airlock locking An additional locking latch is integrated in the upper forend extension. -
Page 21: Optional: Disengageable Inside Handle
With the new ‚disengageable inside handle‘ function, the HZ-lock VB 19000 provides a solution to this pro- blem. Therefore, the inside lever handle can be disengage during non-business hours. At the same time, when... -
Page 22: Permanent Magnet For Hz-Lock Vb Leaf Position Contact
Permanent magnet for HZ-lock BB leaf position contact 2696 - Ø15mm magnet for steel frames and individual steel striking plate brass case with adjustable magnet position 2697 Ø10 mm round magnet, height 5 mm For drilling into wooden frames under individual striking plate made of non-magnetic stainless steel Centre fastening with nickel plated brass screw 2698 Flat permanent magnet with cap profile for striking plates made of non-magnetic stainless steel... -
Page 23: Hz-Lock Vb 19000 Dimensional Drawing
HZ-lock VB 19000 dimensional drawing 2050 1005 2150 1105 Top can be shortened 100 mm 2250 1205 Auxiliary latch (optional) Daytime function (optional) 11.6 24.2 Bottom can be shortened 30 mm Glutz AG / Massblatt / HZ-Lock-mit-Tagesfunktion/ Zsm / 23.05.13... -
Page 24: Connection Diagram
Connection diagram DIN cable colours Kabelfarben DIN Anschluss-Schema Bolt position contact Riegelstellungs- weiss white kontakt Option: braun brown Auskupplungs- Options magnet Disengagement magnet grün für ausschaltbaren For disengageable green inside lever handles Innendrücker gelb yellow grau grey Eintritt mit Schlüssel rosa Entry pink... -
Page 25: Electrical Connections / Control And Monitoring Functions
Electrical connections / control and monitoring functions... -
Page 26: Faults - Causes - Remedy
Faults - Causes - Remedy 1. Lock functions Fault Cause Remedy 1.1 The door does not lock 1. The lock latch cannot engage in the 1. Increase the size of the latch cutout in automatically after closing, the striking plate. the striking plate or in the frame. - Page 27 Faults - Causes - Remedy 2. Control and monitoring functions Fault Cause Remedy 2.1 'Door position - door locking' 1. The magnet in the striking plate 1. Reposition the magnet; the correct feedback does not work. is not positioned correctly or the position must be determined by rebate gap is too large.
- Page 28 Glutz Ltd. Glutz Segetzstrasse 13 CH-4502 Solothurn Switzerland Multipointlock HZ-lock VB 19000, RR 19010, RR 19015 LE/DoP-Nr. : 025E/CPR/2017-01-16 EN 179: 2008 Emergency exit devices operated by a lever handle or push pad, for use on escape routes Ability to release fulfilled (≤...
- Page 29 Segetzstrasse 13, 4502 Solothurn, Schweiz Tel. +41 32 625 65 20, Fax +41 32 625 65 35 info@glutz.com, www.glutz.com Glutz Deutschland GmbH Schmalenhofer Strasse 61, 42551 Velbert, Deutschland Tel. +49 2051 8013 51-0, Fax +49 2051 8013 51-15 info-de@glutz.com, www.glutz.com Glutz GmbH Österreich...
