The top side panel of the amplifier unit contains the connectors for two direct current
channels attachment, the connector for breath sensor attachment, USB cable for the
attachment to computer, the trigger socket (trig-in/trig-out) to attach the stimulators of
other manufacturers, the connector for pattern-stimulator adapter attachment, the
connector for visual stimulator attachment, the connector for the auditory stimulator
attachment (Fig ).
. 3
DC2 direct current channel

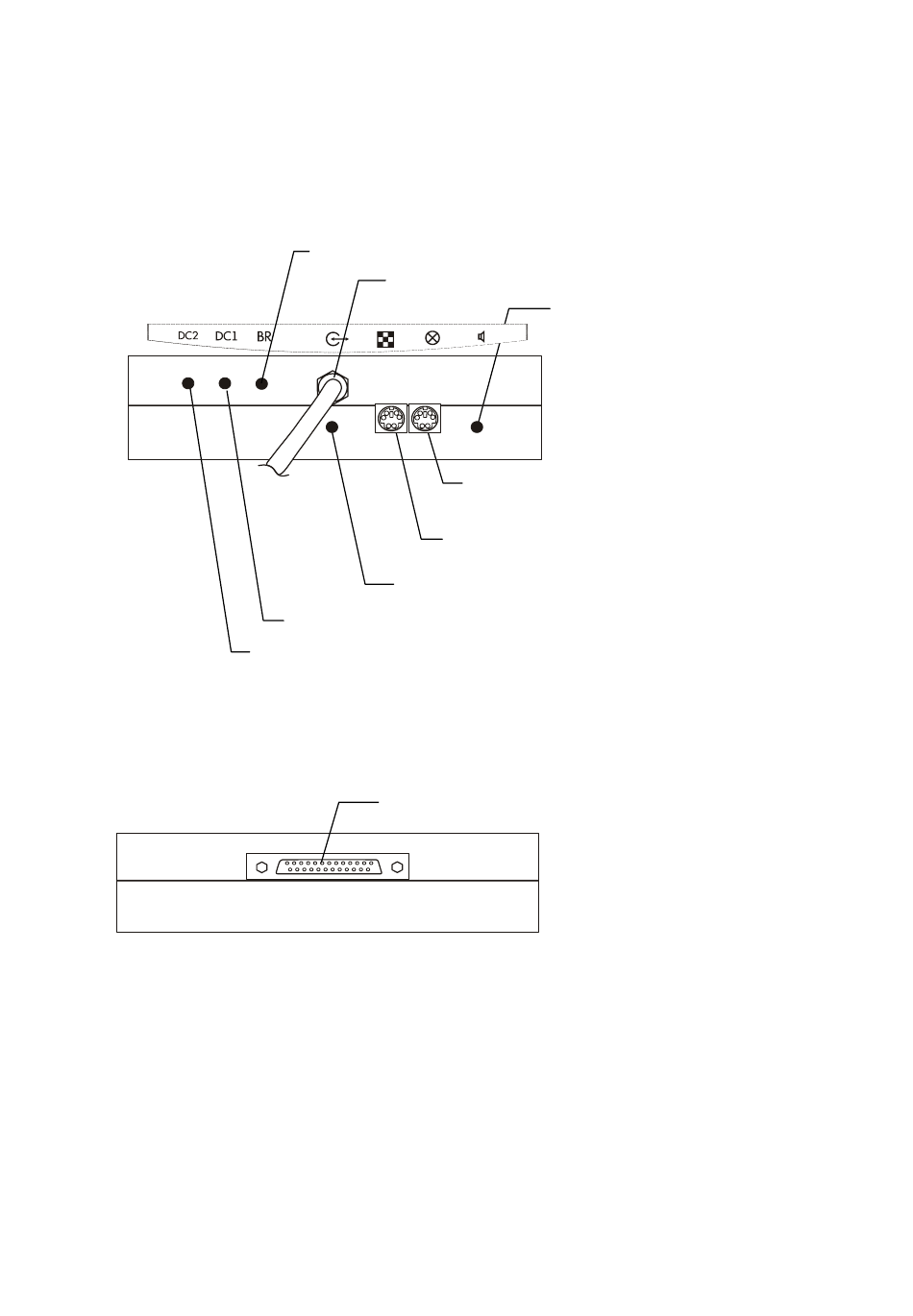

Fig. 3. The external view of the top side panel.
The bottom side panel contains the connector for electrode cap attachment (Fig
Fig. 4. The external view of the bottom side panel.
Connector for breath sensor attachment
USB cable
Connector for pattern-stimulator adaptor
attachment
Trigger socket (trig-in/trig-out)
DC1 direct current channel
Connector for electrode cap attachment
Connector for auditory
stimulator attachment
Connector for visual stimulator
connection
