Sauder Edge Water 422406 Manual
  1. Manuals
  2. Brands
  3. Sauder Manuals
  4. Indoor Furnishing
  5. Edge Water 422406
  6. Manual

Sauder Edge Water 422406 Manual

Side table
Hide thumbs

Advertisement

Quick Links

Download this manual
sauder.com

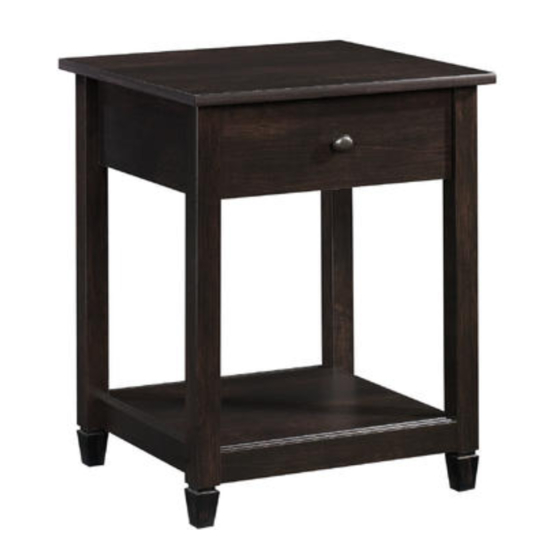

Side Table
Edge Water Collection | Model 422406
Need help? Visit Sauder.com to view video assembly tips or chat with a live rep.
Prefer the phone? Call 1-800-523-3987.
Share your journey!
One heck of a sidekick.
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-17
Français pg 18-19
Español pg 20-21
Lot # 506376
07/07/17
Purchased: __________________
Be sure to give us a ring before
making any returns. 1-800-523-3987

Advertisement

loading
Need help?

Need help?

Do you have a question about the Edge Water 422406 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sauder Edge Water 422406

Summary of Contents for Sauder Edge Water 422406

  • Page 1 Edge Water Collection | Model 422406 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. Need help? Visit Sauder.com to view video assembly tips or chat with a live rep. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Prefer the phone? Call 1-800-523-3987.
  • Page 2 Assembly Tools Required Part Identifi cation No. 2 Phillips Screwdriver Tip Shown Actual Size Hardware Identifi cation Assembly Steps 5-17 Hammer Not actual size Français 18-19 Español 20-21 Skip the power trip. Safety This time. Warranty Page 2 422406 www.sauder.com/services...
  • Page 3 D154 DRAWER BACK (1) D959 DRAWER BOTTOM (1) RIGHT FRONT LEG (1) LEFT FRONT LEG (1) RIGHT REAR LEG (1) LEFT REAR LEG (1) SIDE SKIRT (2) SKIRT (2) DRAWER FRONT (1) FOOT (4) D154 D959 www.sauder.com/services 422406 Page 3...
  • Page 4 CAM SCREW - 14 SMALL CAM 17K KNOB - 1 WOOD DOWEL - 4 SCREW - 6 3S GOLD 5/16" FLAT HEAD SCREW - 8 30S BLACK 1-9/16" FLAT HEAD SCREW - 8 BLACK 7/8" MACHINE SCREW - 1 Page 4 422406 www.sauder.com/services...
  • Page 5 Look for this icon. It means a Step 1 video assembly tip is available at www.sauder.com/services/tips Assemble your unit on a carpeted fl oor or on the empty å carton to avoid scratching your unit or the fl oor. Push six HIDDEN CAMS (1F) into the ENDS (A) and BACK (D).
  • Page 6 BOTTOM (C), BACK (D), and SKIRTS (I and J). Some assembly (and snacks) required. Arrow (20 used) Arrow Arrow Hole The arrow in the HIDDEN CAM must point toward the hole in the edge of the board. Arrow Arrow Page 6 422406 www.sauder.com/services...
  • Page 7 Step 3 Turn six SMALL CAM SCREWS (20F) into å the SKIRTS (I and J). (6 used) www.sauder.com/services 422406 Page 7...
  • Page 8 Step 4 Turn fourteen CAM SCREWS (8F) into å the LEGS (E, F, G, and H). (14 used) Page 8 422406 www.sauder.com/services...
  • Page 9 H I D D E N D E N H I D Edge with Edge with CAM SCREW CAM SCREW These surfaces should be even. Suface with Suface with HIDDEN CAMS HIDDEN CAMS www.sauder.com/services 422406 Page 9...
  • Page 10 BLACK 1-9/16" FLAT HEAD SCREWS (30S). Roller end GOLD 5/16" FLAT HEAD SCREW (4 used in this step) Use the exact holes shown. Roller end Use the exact holes shown. BLACK 1-9/16" FLAT HEAD SCREW (4 used for the FEET) Page 10 422406 www.sauder.com/services...
  • Page 11 CAM SCREWS S u r f a c i t h H I D D E N Edge without CAM SCREWS S u r f a c i t h o u t H I D D www.sauder.com/services 422406 Page 11...
  • Page 12 å LEGS (E, F, G, and H) and SIDE SKIRTS (I). Tighten eight HIDDEN CAMS. Surface and edge with HIDDEN CAMS i t h f a c S u r D E N H I D Page 12 422406 www.sauder.com/services...
  • Page 13 Tighten Risk of damage or Arrow injury. HIDDEN CAMS must be completely Arrow Maximum tightened. HIDDEN 210 degrees CAMS that are not completely tightened may loosen, and parts may separate. To Minimum completely tighten: 190 degrees www.sauder.com/services 422406 Page 13...
  • Page 14 Fasten the DRAWER BACK (D154) to the DRAWER SIDES (D16 and D17). Use four BLACK 1-9/16" FLAT HEAD SCREWS (30S). å NOTE: Be sure the DRAWER BOTTOM (D959) inserts into the groove of the DRAWER BACK (D154). å Page 14 422406 www.sauder.com/services...
  • Page 15 Roller end (1 used for the KNOB) Screw head - turn CAM to line up holes in the SLIDES with holes in DRAWER SIDES Roller end GOLD 5/16" FLAT HEAD SCREW (4 used in this step) www.sauder.com/services 422406 Page 15...
  • Page 16 Lift the front of the drawer up and slide it into the unit. 40 lbs. 15 lbs. 30 lbs. Place the roller on the SLIDE behind the roller on the RAIL. Page 16 422406 www.sauder.com/services...
  • Page 17 #3. The higher the screw in the oblong hole, the higher your drawer front will be. The lower the screw, the lower the drawer front. www.sauder.com/services 422406 Page 17...
  • Page 18 QUANTITÉ d’ a chat de cet élément et conserver le livret pour future référence. EXTRÉMITÉ ..............2 35GA ÉLÉMENT DROITE............1 Pour contacter Sauder DESSUS ................1 35GB ÉLÉMENT GAUCHE ...........1 en ce qui concerne cet DESSOUS ................1 35GC TIROIR DROIT ..............1 élément, faire référence au numéro de lot et...
  • Page 19 Ceci complète l'assemblage. Nettoyer à l’ a ide d’une encaustique REMARQUE : S'assurer de bien insérer les CHEVILLES EN BOIS pour meubles ou d’un chiff on humide. Essuyer. situées sur les PIEDS dans les trous dans le DESSUS. www.sauder.com/services 422406 Page 19...
  • Page 20 EXTREMO ................2 35GA GABINETE DERECHO ..........1 et conserver le livret pour future référence. PANEL SUPERIOR ............1 35GB GABINETE IZQUIERDO ...........1 Pour contacter Sauder FONDO .................1 35GC CAJÓN DERECHO ............1 en ce qui concerne cet DORSO .................1 35GD CAJÓN IZQUIERDO ...........1 élément, faire référence...
  • Page 21 Fije el PANEL SUPERIOR (B) a los EXTREMOS (A) y al DORSO (D). Esto completa el ensamblaje. Limpie con su pulimento para Apriete seis EXCÉNTRICOS ESCONDIDOS. muebles preferido o un paño húmedo. Seque con un paño. www.sauder.com/services 422406 Page 21...
  • Page 22 Además, el peso y la ubicación del tubo de imagen tienden a causar la inestabilidad de televisores y son propensos a inclinarse hacia adelante. Page 22 422406 www.sauder.com/services...
  • Page 23 à compter de la date d'achat la première fois et qui sont signalés à Sauder dans les limites de couverture de la contre tout défaut de matériaux ou de fabrication des composantes de mobilier Sauder.
  • Page 24 Dear Valued Customer: So, how did it go? Thanks so much for choosing Sauder® furniture. I hope the Set a world record for speed? purchase and assembly process was a positive experience Feeling good about yourself? and you feel good about the furniture you just built. If you Nice.
