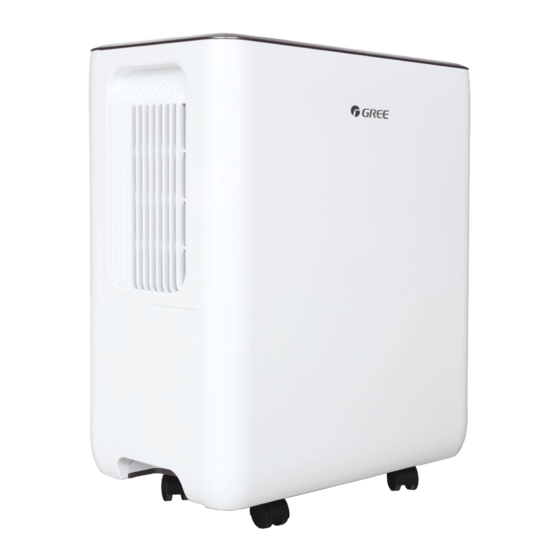

Gree GDN10BF-K5EBA2A Owner's Manual
  1. Manuals
  2. Brands
  3. Gree Manuals
  4. Dehumidifier
  5. GDN10BF-K5EBA2A
  6. Owner's manual

Gree GDN10BF-K5EBA2A Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Change for life
Owner's Manual
Original Instructions
Dehumidifier
Thank you for choosing our product.
Please read this Owner's Manual carefully before operation and
retain it for future reference.
If you have lost the Owner's Manual, please contact the local agent
or visit www.gree.com or send an email to global@cn.gree.com for
the electronic version.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GDN10BF-K5EBA2A and is the answer not in the manual?

Questions and answers

Related Manuals for Gree GDN10BF-K5EBA2A

Summary of Contents for Gree GDN10BF-K5EBA2A

  • Page 1 Thank you for choosing our product. Please read this Owner’s Manual carefully before operation and retain it for future reference. If you have lost the Owner's Manual, please contact the local agent or visit www.gree.com or send an email to global@cn.gree.com for the electronic version.
  • Page 2 GDN10BF-K5EBA2A GDN12BF-K5EBA2A GDN16BF-K5EBA2A...

  • Page 3: Table Of Contents

    Content Operation Notices ● The Refrigerant..................1 ● Safety Precautions..................2 ● Operation Area..................3 ● Parts Name.....................4 Operation Instructions ● Operation Method...................5 ● Drainage Method ..................8 Maintenance ● Clean and Maintenance................10 Malfunction ● Troubleshooting..................12 ● Malfunction Codes................14 ● Electric schematic diagram ..............15 ●...
  • Page 4 Explanation of Symbols Indicates a hazardous situation that, if not avoided, will DANGER result in death or serious injury. Indicates a hazardous situation that, if not avoided, could WARNING result in death or serious injury. Indicates a hazardous situation that, if not avoided, may CAUTION result in minor or moderate injury.

  • Page 5: The Refrigerant

    Appliance filled with flammable gas R290. Before install and use the appliance, read the owner’s manual first. Before install the appliance, read the installation manual first. Before repair the appliance, read the service manual first. The Refrigerant To realize the function of the unit, a special refrigerant circulates in the system. The used refrigerant is the fluoride R290, which is specially cleaned.

  • Page 6: Safety Precautions

    Safety Precautions ● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experienc e and knowledge if they have been given supervision or instruction concerning use of the app- liance in a safe way and understand the hazards involved.

  • Page 7: Operation Area

    Operation Area not be used for commercial or industrial applications. enclosed area, such as a closet. temperature will not below 5°C or above 32°C. ● Allow at least 30 cm of air space on all sides of the unit. ● Close all doors, windows and other outside openings of the room to improve the working effect.

  • Page 8: Parts Name

    Parts Name Front Side Control Panel Air-out Grille Panel Water Bucket Castors Back Side Air-in Filter Drain Cover Rear Case Power Plug...

  • Page 9: Operation Method

    Operation Method High fan speed Low fan speed UV indicator Running indicator Bucket full light indicates Standby indicator bucket needs to be emptied WiFi indicator or it is not in the proper place High Low Display WiFi Humidity Full UV ONLY CHILD LOCK (3S) (3S)
  • Page 10 Press this button can freely switch from high fan speed to low fan speed. When you need fast dehumidification, select high fan speed; when you need the unit to work quietly, select low fan speed. Hold this button for 3S to enter or exit child lock status. When the unit enters child lock status, the display window will flash “LC”...
  • Page 11 Memory Function If power is lost, all of the control settings are remembered. So when power is restored, the unit will start back up in the settings it was in when power was lost. 4. Bucket full light This indicates that bucket is full or removed or not placed correctly.

  • Page 12: Drainage Method

    Drainage Method Option 1 Emptying Manually Notes: Do not remove the bucket when unit is in operation or has just stopped. Do not use the hose if using water bucket to collect water. When the hose is connected, water will be drained out through it instead of into the bucket. Hold the handles on bottom side of the water bucket and pull it out following the arrow direction.
  • Page 13 Option 2 Gravity Drain Hose Hose is not provided, so user shall prepare it in advance. [Size: The hose should have an inner diameter of 14mm] Unscrew the drain cover, and pull out the rubber plug from the unit as instructed.

  • Page 14: Clean And Maintenance

    Clean and Maintenance Warning: may lead to electric shock. Otherwise it will damage unit's appearance. Grille and Case To clean the case: When there is dust on the case, use soft towel to dust it off; When the case is very dirty(greasy), use mild detergent to clean it.
  • Page 15 Check Before Use-season ● Check whether air outlet is blocked. ● Check whether power plug and power socket are in good condition. ● Check whether drain hose is damaged. Care After Use-season ● Disconnect power. ● Empty the water bucket. Long-time Storage steps below in order to maintain the unit in good condition.

  • Page 16: Troubleshooting

    Troubleshooting ● Not all the following problems are malfunctions. Problem Possible Causes ● Unit is operating in an area where temperature is higher than 32°C or lower than 5°C. Controls can not be set. ● Bucket is full. ● Noise will rise if compressor has just started. Noise suddenly rises during ●...
  • Page 17 Problem Possible Causes Solution ● Check if power is lost. If yes, wait for the power to restore. ● If not, check whether the ● Power is not supplied for power circuit or power socket Power indicator is has been damaged. power plug is not well not lit when power ●...

  • Page 18: Malfunction Codes

    Malfunction Codes ● Unit's Malfunction Codes Display Code Malfunction Unit's Possible Causes Name Condition Display Window ● Ambient temperature sensor is loosen or is poorly connected with the terminal of display board. ● Some element of display board Ambient may have been put upside down Compressor Temperature and cause short circuit.

  • Page 19: Electric Schematic Diagram

    Display Code Malfunction Unit's Possible Causes Name Condition Display Window Freon-lacking ● Refrigerant is leaking. protection ● System is blocked Compressor stops opera- ● Ambient operation condition is tion. 30s lat- High-tempe- bad. er , the fan rature over ● The evaporator and condenser will also stop load are blocked with filth.

  • Page 20: Specialist's Manual

    Specialist's Manual Aptitude requirement for maintenance man(repairs should be done only be specialists). a) Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authori- ty, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specification.
  • Page 21 Specialist's Manual lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which refrigerant can possibly be released to the sur- rounding space.
  • Page 22 Specialist's Manual Repairs to sealed components During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absonecessary to have an electrical supply to equipment during servicing, then a permoperating form of leak detection shall be located at the most critical point lutely anently to warn of a potentially hazardous situation.
  • Page 23 Specialist's Manual tion.(Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant andshall be calibrated to the refrigerant employed, and the appropriate percentage of gas (25% maximum) is confirmed.
  • Page 24 Specialist's Manual —Cylinders shall be kept upright. —Ensure that the refrigeration system is earthed prior to charging the system with refrigerant. —Label the system when charging is complete (if not already). —Extreme care shall be taken not to overfill the refrigeration system. Prior to recharging the system, it shall be pressure-tested with the appropriate purg- ing gas.
  • Page 25 Specialist's Manual Recovery When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for hold- ing the total system charge are available.
  • Page 26 GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI Add: West Jinji Rd, Qianshan, Zhuhai,Guangdong, China, 519070 Tel: (+86-756) 8522218 Fax: (+86-756) 8669426 E-mail: global@cn.gree.com Web: www.gree.com 600005063436...
