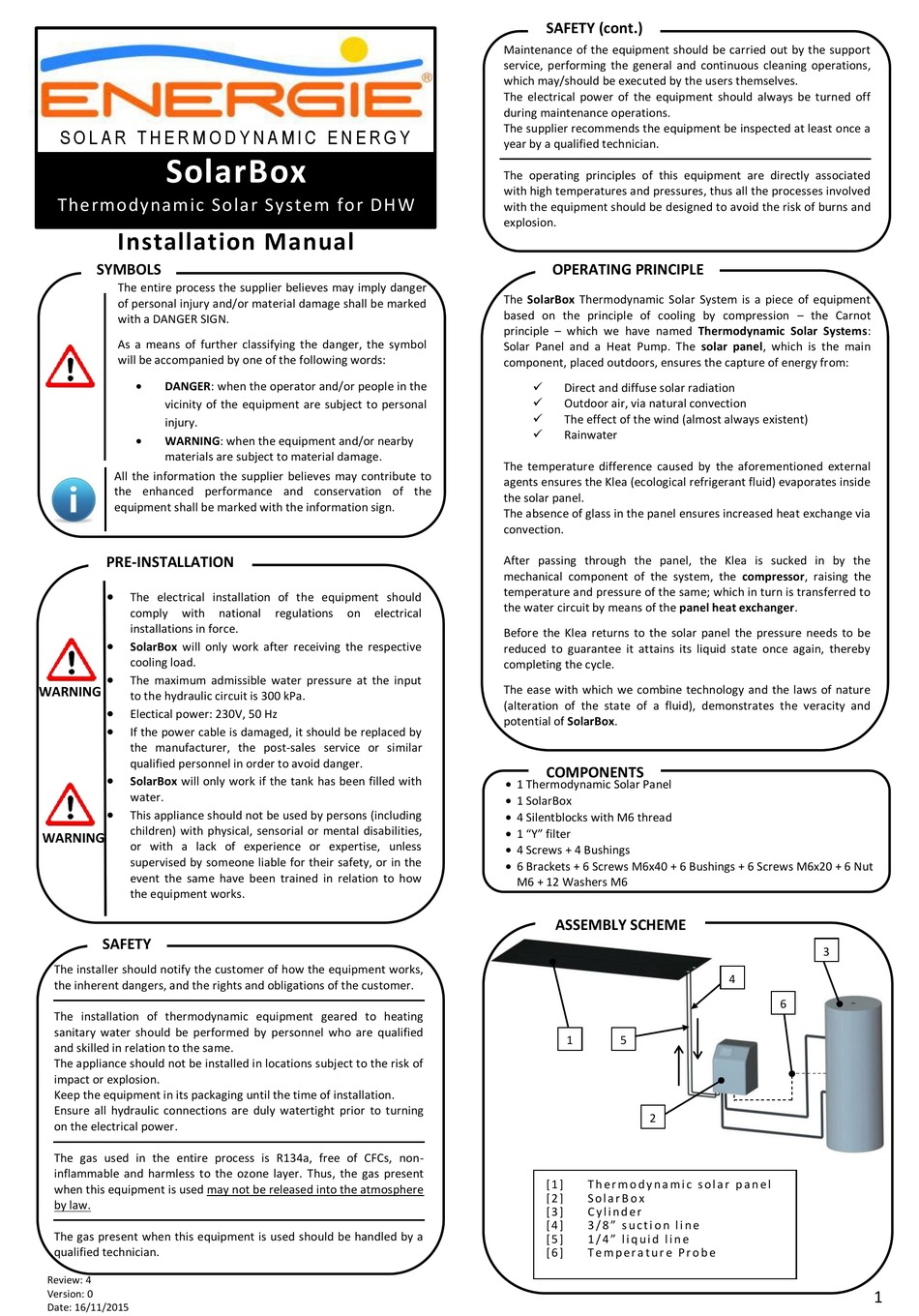

Energie SolarBox Installation Manual

Thermodynamic solar system for dhw

Advertisement

Quick Links

S O L A R T H E R M O D Y N A M I C E N E R G Y
SolarBox
The rmodynamic Solar System for DHW
Installation Manual

SYMBOLS

The entire process the supplier believes may imply danger
of personal injury and/or material damage shall be marked
with a DANGER SIGN.
As a means of further classifying the danger, the symbol
will be accompanied by one of the following words:
DANGER: when the operator and/or people in the
vicinity of the equipment are subject to personal
injury.
WARNING: when the equipment and/or nearby
materials are subject to material damage.
All the information the supplier believes may contribute to
the enhanced performance and conservation of the
equipment shall be marked with the information sign.

PRE-INSTALLATION

The electrical installation of the equipment should
comply
with
installations in force.
SolarBox will only work after receiving the respective
cooling load.
The maximum admissible water pressure at the input
WARNING
to the hydraulic circuit is 300 kPa.
Electical power: 230V, 50 Hz
If the power cable is damaged, it should be replaced by
the manufacturer, the post-sales service or similar
qualified personnel in order to avoid danger.
SolarBox will only work if the tank has been filled with
water.
This appliance should not be used by persons (including
children) with physical, sensorial or mental disabilities,
WARNING
or with a lack of experience or expertise, unless
supervised by someone liable for their safety, or in the
event the same have been trained in relation to how
the equipment works.

SAFETY

The installer should notify the customer of how the equipment works,
the inherent dangers, and the rights and obligations of the customer.
The installation of thermodynamic equipment geared to heating
sanitary water should be performed by personnel who are qualified
and skilled in relation to the same.
The appliance should not be installed in locations subject to the risk of
impact or explosion.
Keep the equipment in its packaging until the time of installation.
Ensure all hydraulic connections are duly watertight prior to turning
on the electrical power.
The gas used in the entire process is R134a, free of CFCs, non-
inflammable and harmless to the ozone layer. Thus, the gas present
when this equipment is used may not be released into the atmosphere
by law.
The gas present when this equipment is used should be handled by a
qualified technician.
Review: 4
Version: 0
Date: 16/11/2015
national
regulations
on
electrical
SAFETY (cont.)
Maintenance of the equipment should be carried out by the support
service, performing the general and continuous cleaning operations,
which may/should be executed by the users themselves.
The electrical power of the equipment should always be turned off
during maintenance operations.
The supplier recommends the equipment be inspected at least once a
year by a qualified technician.
The operating principles of this equipment are directly associated
with high temperatures and pressures, thus all the processes involved
with the equipment should be designed to avoid the risk of burns and
explosion.

OPERATING PRINCIPLE

The SolarBox Thermodynamic Solar System is a piece of equipment
based on the principle of cooling by compression – the Carnot
principle – which we have named Thermodynamic Solar Systems:
Solar Panel and a Heat Pump. The solar panel, which is the main
component, placed outdoors, ensures the capture of energy from:
Direct and diffuse solar radiation
Outdoor air, via natural convection
The effect of the wind (almost always existent)
Rainwater
The temperature difference caused by the aforementioned external
agents ensures the Klea (ecological refrigerant fluid) evaporates inside
the solar panel.
The absence of glass in the panel ensures increased heat exchange via
convection.
After passing through the panel, the Klea is sucked in by the
mechanical component of the system, the compressor, raising the
temperature and pressure of the same; which in turn is transferred to
the water circuit by means of the panel heat exchanger.
Before the Klea returns to the solar panel the pressure needs to be
reduced to guarantee it attains its liquid state once again, thereby
completing the cycle.
The ease with which we combine technology and the laws of nature
(alteration of the state of a fluid), demonstrates the veracity and
potential of SolarBox.

COMPONENTS

 1 Thermodynamic Solar Panel
 1 SolarBox
 4 Silentblocks with M6 thread
 1 "Y" filter
 4 Screws + 4 Bushings
 6 Brackets + 6 Screws M6x40 + 6 Bushings + 6 Screws M6x20 + 6 Nut
M6 + 12 Washers M6

ASSEMBLY SCHEME

1
5
2
[ 1 ]
T h e r m o d y n a m i c s o l a r p a n e l
[ 2 ]
S o l a r B o x
[ 3 ]
C y l i n d e r
[ 4 ]
3 / 8 " s u c t i o n l i n e
[ 5 ]
1 / 4 " l i q u i d l i n e
[ 6 ]
T e m p e r a t u r e P r o b e
3
4
6
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SolarBox and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Energie SolarBox

  • Page 1 If the power cable is damaged, it should be replaced by the manufacturer, the post-sales service or similar qualified personnel in order to avoid danger. COMPONENTS  SolarBox will only work if the tank has been filled with  1 Thermodynamic Solar Panel water.  1 SolarBox ...
  • Page 2 Minimum Coil Area (when using backup SolarBox connections) SolarBox may be fixed to a wall using the four holes in the back or placed on a horizontal surface using the four silentblocks. In either case, DIMENSIONS the device should be correctly levelled.
  • Page 3 14 a 16 coolant. 3/8” 33 a 42 Refrigerant Connections - SolarBox The use of a thread sealant is recommended for all Some of the steps involved here are exactly the same as the procedures followed to connect the panel.
  • Page 4 Non return Valve Mains Water Pressure Reducing Valve Hot Water Outlet SolarBox may be installed in tanks with two or more connections. The Security Group SolarBox diagrams below illustrate two types of connection to a tank: Expansion Vessel...
  • Page 5 ELECTRICAL CONNECTIONS Check the following conditions before implementing the electrical connections: a) The thermodynamic equipment should only be powered electrically after the tank has been filled. b) The thermodynamic equipment should be connected to monophasic voltage (230 VAC / 50 or 60Hz) Connections should always comply with the installation regulations in force in the country in which the thermodynamic equipment is installed.
  • Page 6 ELECTRONIC PANEL (EXTERNAL ASPECT AND CONNECTIONS DIAGRAM) cont. 4 - Alarm Function If the temperature read by the Probe is over the value Alarm Thermostat P04  The acoustic and visual signal is activated  SILENCE Function: the acoustic signal could be deactivated for 5 minutes pushing any button. After this time, if the alarm condition remains the acoustic signal starts again.
  • Page 7 WIRING DIAGRAM Legend: Compressor Circulator Pump Raux Auxiliar Relay Backup Electric Heater Low Pressure Switch High Pressure Switch Temperature Probe NOTE: “EH” is not included on the equipment. It’s the responsibility of the installer to make its Installation TROUBLESHOOTING PROBLEM POSSIBLE CAUSES REMARK Check for the presence of electrical power...
  • Page 8  Thermodynamic Block 5 Years: Stainless Steel (2 + 3 years)* 10 Years  Solar Block 5 Years: Enamelled (2 + 3 years)*  Solarbox Against Production  Split Manufacturer Warranty Defects and corrosion  Monobloc (except cylinder)  Combi Block ...
