Summary of Contents for Technoline WT549
- Page 1 WT549 Manual Product Appearance...

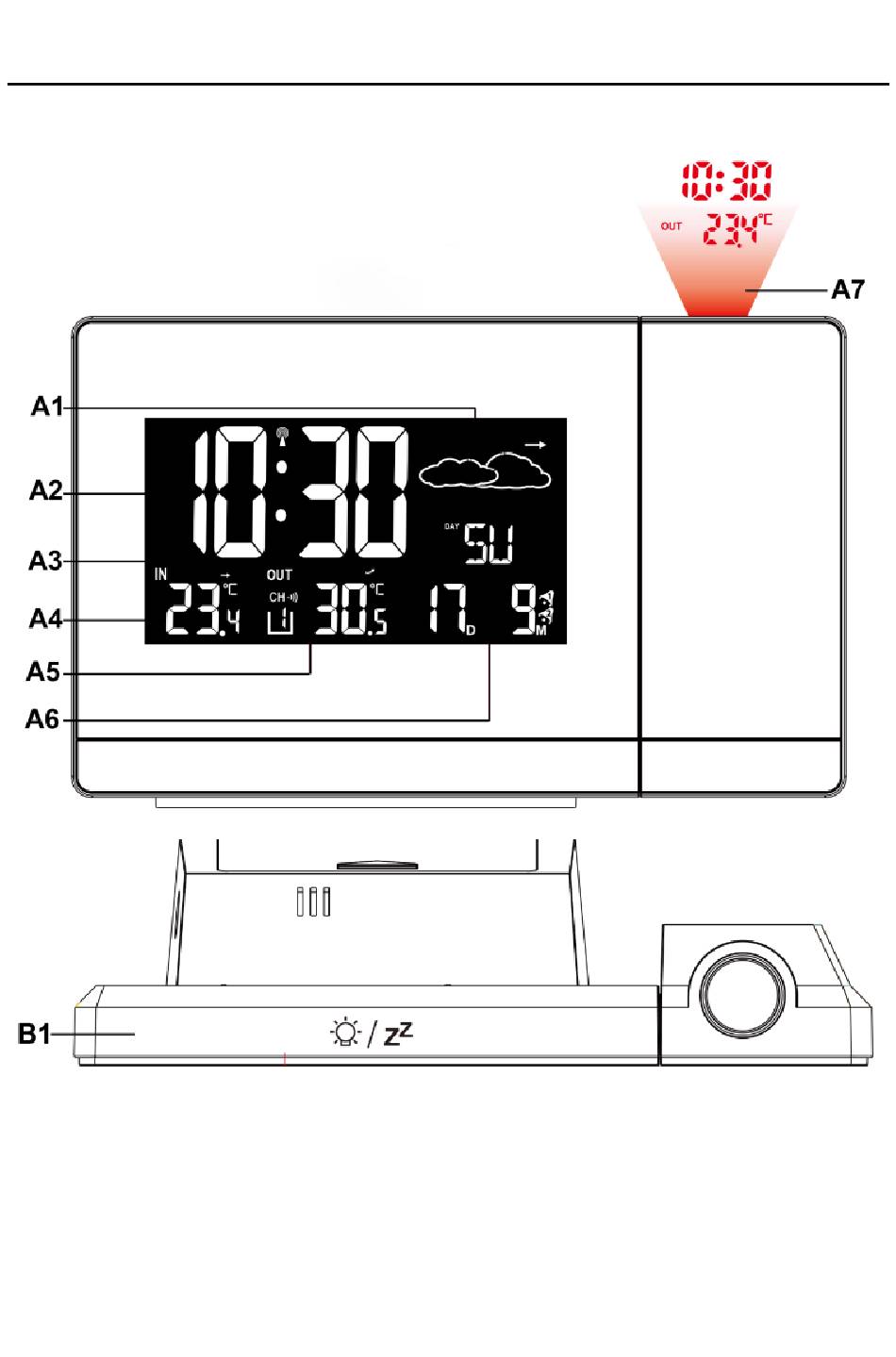

- Page 2 WT549 Manual Part A-Positive LCD A1: Weather Forecasting A2: Time A3: Week A4: Indoor Temperature A5: Outdoor Temperature A6: Calendar A7: Projection display Part B – Back button and power B1: “Snooze/Light” button...
- Page 3 WT549 Manual B2: “Rainbow” button B3: Alarm1 on/off shift switch B4: “Mode/Set” button B5: “Mem/Alarm” button B6: “Loop” button B7: “+/ch” button B8: “-/light” button B9: Alarm2 on/off shift switch B10: Power supply socket B11: Battery compartment Features: Radio controlled DCF-77 clock ...
-
Page 4: Environmental Reception Effects
WT549 Manual Indoor measurement range: -9.9°C ~ 49.9°C Power: DC-adapter (included), battery 1.5V “AAA” size x 2 pcs (not included) LR03 Environmental reception effects The clock obtains the accurate time with wireless technology. Same as all wireless devices, the... - Page 5 WT549 Manual Place the clock at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances. Precautions This main unit is intended to be used only indoors. Do not subject the unit to excessive force or shock.
- Page 6 WT549 Manual Never mix used and new batteries. Remove exhausted batteries immediately. Remove batteries when not in use. Do not recharge and do not dispose of batteries in fire as the batteries may explode. Ensure batteries are stored away from metal objects as contact may cause a short circuit.
-
Page 7: Initial Operation
WT549 Manual distributors and other collecting points! Consideration of duty according to the law of electrical devices This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. -
Page 8: Projection Function
WT549 Manual display will light up for 3 seconds, you will hear a beep tone and the clock detects indoor temperature. Then the clock will enter the radio controlled time signal reception mode. Projection function: Continuous projection is only possible by using the power adapter ... -
Page 9: Reception Of The Radio Signal
WT549 Manual button can choose high brightness / low brightness / no backlight brightness. The projection will always work. Please note: When the projection is triggered, the projection distance is about 2 meters. Reception of the Radio signal The clock automatically starts the DCF signal search of any restart or changing of new fresh batteries. - Page 10 WT549 Manual carries out the synchronization procedure with the DCF signal to correct any deviations to the exact time. If this synchronization attempt is unsuccessful (the radio mast icon disappears from the display), the system will automatically attempt another synchronization at the next full hour. This procedure is repeated automatically up to total 5 times.
-
Page 11: Manual Time Setting
WT549 Manual Radio reception is weaker in rooms with concrete walls (e.g.: in cellars) and in offices. In such extreme circumstances, place the system close to the window. During the radio controlled clock signal receive mode, only the "SNOOZE" button function, other buttons have no function. - Page 12 WT549 Manual buttons to set the date. Press “MODE-SET” button to confirm your setting, the language selection for the Weekday displays starts to flash. Now use “+” and “-” buttons to select a language: German, English, French, Italian, Spanish, Dutch, Danish Press “...
-
Page 13: Setting The Daily Alarms
WT549 Manual and the ° C / ° F temperature display will flash. Press the "+" or "-" button to change the format. Press the "MODE-SET" button to confirm the setting and the weather forecast will start to flash. Press the "+"... - Page 14 WT549 Manual Press and hold “ALARM” button for 2 seconds until hour of the first Alarm time starts to flash. Use the “+” and “-” buttons to set the required hour. Press “ALARM” button to confirm your setting, The Minute of the Alarm time starts to flash.
-
Page 15: Switching Off The Alarm Signal
WT549 Manual Normal clock mode. The alarm will sound for 2 minutes if you do not deactivate it by pressing any button. In this case the alarm will be repeated automatically after 24 hours. Rising alarm sound (crescendo, duration: 2 minutes) changes the volume 4 times whilst the alarm signal is heard. -
Page 16: Weather Forecast
WT549 Manual color change. Turn off the loop function and press “Rainbow” button, the backlight will change its color in this sequence: white > red > orange > yellow > green > cyan > blue > purple Checking MAX/MIN temperature records ... -
Page 17: Temperature Trend
WT549 Manual the sensor search. Temperature trend The temperature-trend indicator shows the trends of changes in the forthcoming few minutes. Arrows indicate a rising, steady or falling trend. Low battery indicator If the low battery indicator “ ” displays in the... - Page 18 WT549 Manual -40°C~70°C/-40°F~158°F Temperature alternatively in °C or °F Transmitting frequency: 433.92MHz EN18...
