Technoline WT 514 User Manual

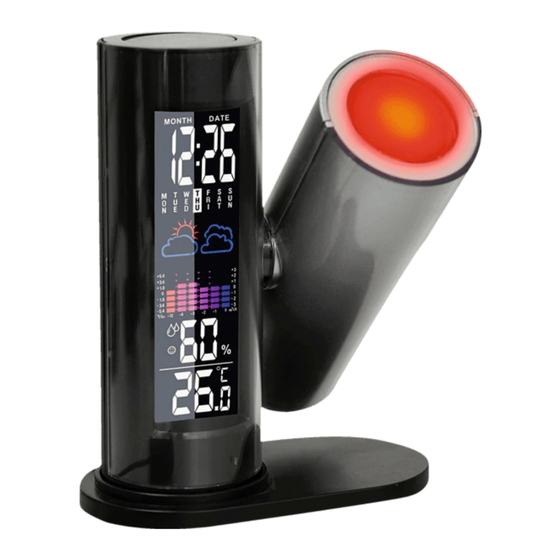

WT 514 - MULTI-FUNCTION PROJECTION CLOCK

FEATURES:

Measuring temperature range: 0 ~ 50°C ( 32 ~ 122°F)
Measuring humidity range: 20 ~ 99%
Resolution: 1° C
Display: MIN/MAX temperature and humidity records
Calendar: 2001 -2099 year
Power: 4.5v adaptor (included) supplied and/or 2x UM-4/AAA (not included)

COMFORT LEVEL INDICATION:

Temperature at any degree
Humidity value < 40% RH

WEATHER FORECAST:

The weather is based on the temperature and humidity chart to create the next 12-
hour weather forecasts. This is meant as a fun addition to the clock as the reading
is affected by indoor conditions such as air conditioning and central heating which
will affect the accuracy.
They are 4 possible weather symbols shown below:
sunny

OPERATION:

Press MODE one time to view the alarm time.
Press MODE one more time to the view calendar.

SETTING THE TIME:

Press and hold MODE for 3 seconds to enter the time setting mode.
The hour digits are blinking and can be set by pressing UP or DOWN for setting hour.
Press MODE again:
The minute digits are blinking and can be set by pressing UP or DOWN for setting
minute.

SETTING THE ALARM:

Press MODE for 2 times to view the alarm time.
Press MODE hold for 3 seconds to enter the alarm setting mode.
The hour digits are blinking and can be set by pressing UP or DOWN for setting hour.
DRY COMFORT
20 ℃ ℃ ℃ ℃ -25℃ ℃ ℃ ℃
40% RH-70% RH
slight cloudly
NO ICON
WET
shown
At any degree
out of 20 ℃ ℃ ℃ ℃ -25℃ ℃ ℃ ℃
>70% RH 40%RH-70%RH
cloudly rainy
