Kenmore 625.384200 Use & Care Manual page 29

Key
Part No.
No.
Motor, Cam & Gear Kit, 1"
– 7384691
(includes Key Nos. 50-52)
50 Motor
51 Cam & Gear
52 7224087 Screw, #8-32 x 1" (2 req.)
53 7231393 Motor Plate
54 0900857 Screw, #6-20 x 3/8" (3 req.)
55 7171250 Bearing
Drain Hose Adaptor Kit
– 7331169
(incl. Key Nos. 56-60)
56 Clip, Drain
57 Hose Clamp
58 Adaptor, Drain Hose
59 O-Ring, 15/16" x 1-3/16"
60 Flow Plug, 2.0 gpm
– 7185487 Seal Kit (includes Key Nos. 61-66)
61 O-Ring, 5/8" x 13/16"
62 O-Ring, 1-1/8" x 1-1/2"
63 O-Ring, 4-1/2" x 4-7/8"
64 Rotor Seal
65 Seal
66 Seal, Nozzle & Venturi
67 7174313 Bearing, Wave Washer
68 7185500 Rotor & Disc
Drain Plug, Kit, 1"
– 7342712
(includes Key Nos. 65, 69 & 70)
69 Plug, Drain Seal
70 Spring
Installation Adaptor Kit, 1",
71 7262506 (includes 2 ea. copper tubes, clips
& washers)
72 7337589 Clip, 1", pack of 4
Questions? Visit www.kenmorewatersolutions.com or call 1-800-695-2761.

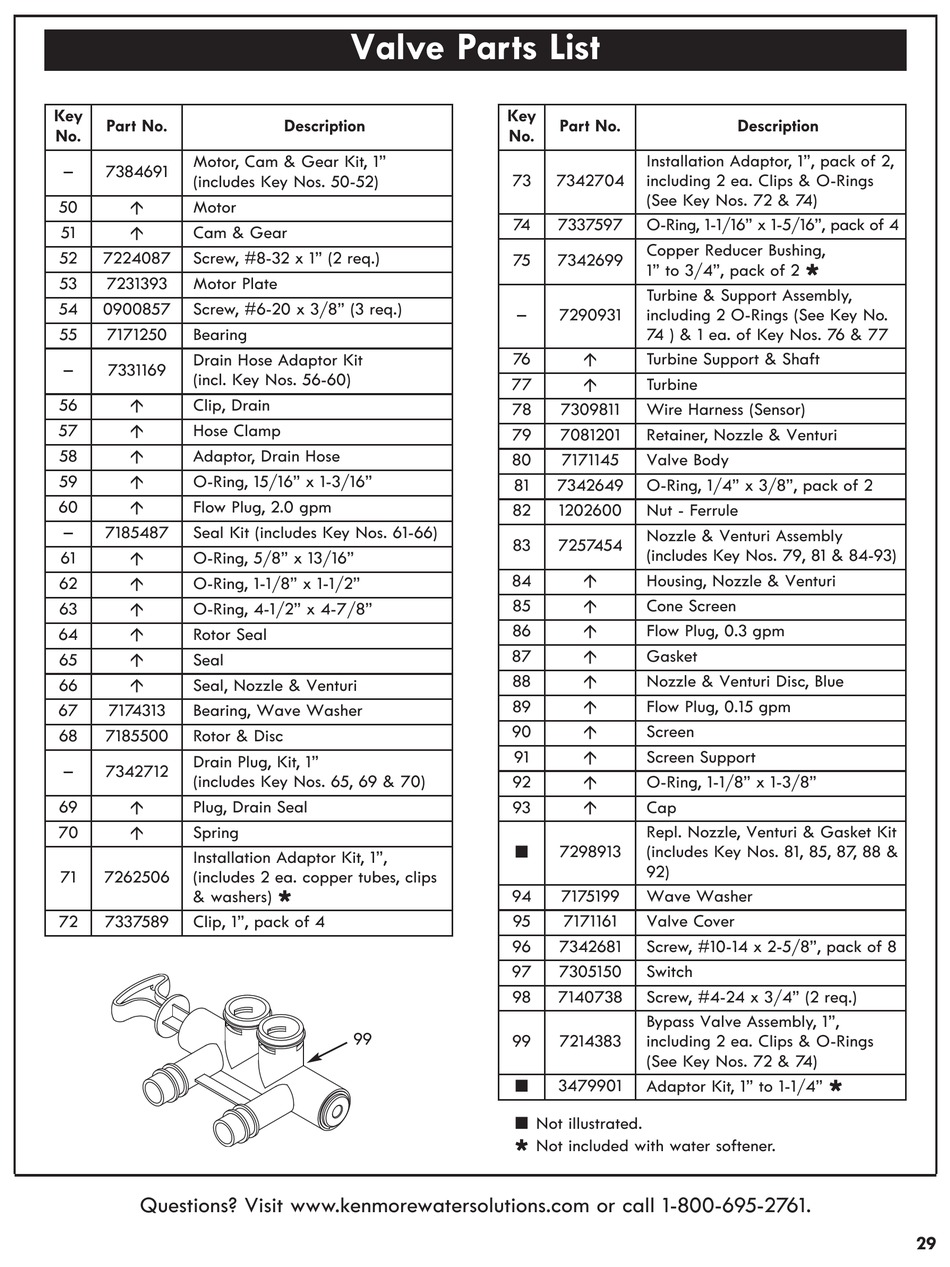

Valve Parts List
