VC-55™ PR Voice Codec Board
(Preliminary)
User's Manual
J10
Power RS-232
J11
Digital I/O

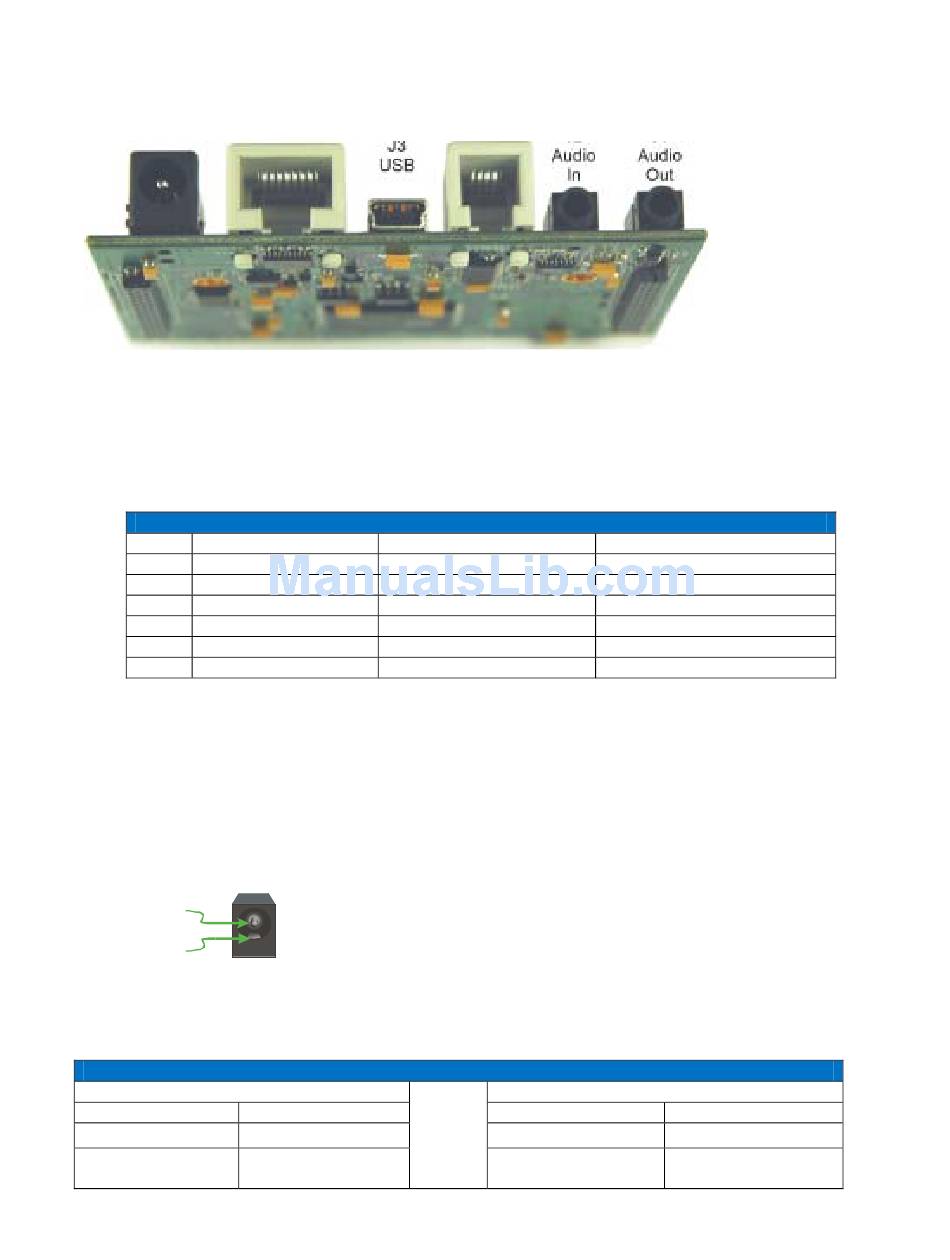

Figure 2 VC-55™- PR Vocoder Board Top
Item Name
J6 Serial Port
J3 USB*
J2 Analog Line In
J1 Analog Line Out
J5 Handset
J10 DC Line In
Table 2 Top Panel Connectors

Connecting DC Power

The user must supply the VC-55™-PR Vocoder Board with a 5 V digital power supply There are no user
settings. Just plug in the 5V DC 250ma power source into the DC power receptacle on the board
receptacle (See Table 2 Top Panel Connectors item 9). DVSI offers an optional accessories kit that
contains a AC to DC converter for the VC-55™-PR Vocoder Board.
+5Volts
DC Ground
Figure 3 Power Input Connection
The OEM version of the board has the Power connections located on J11. The board will operate with
either 3.3 V DC or 5.0 V DC as shown in the following table:
5.0 V DC Power
Pins
6,8
1, 3, 5, 7, 13, 14,
21, 22 ,29 ,30
Note: Do not apply both the 5V DC and 3.3 V DC power at the same time.
