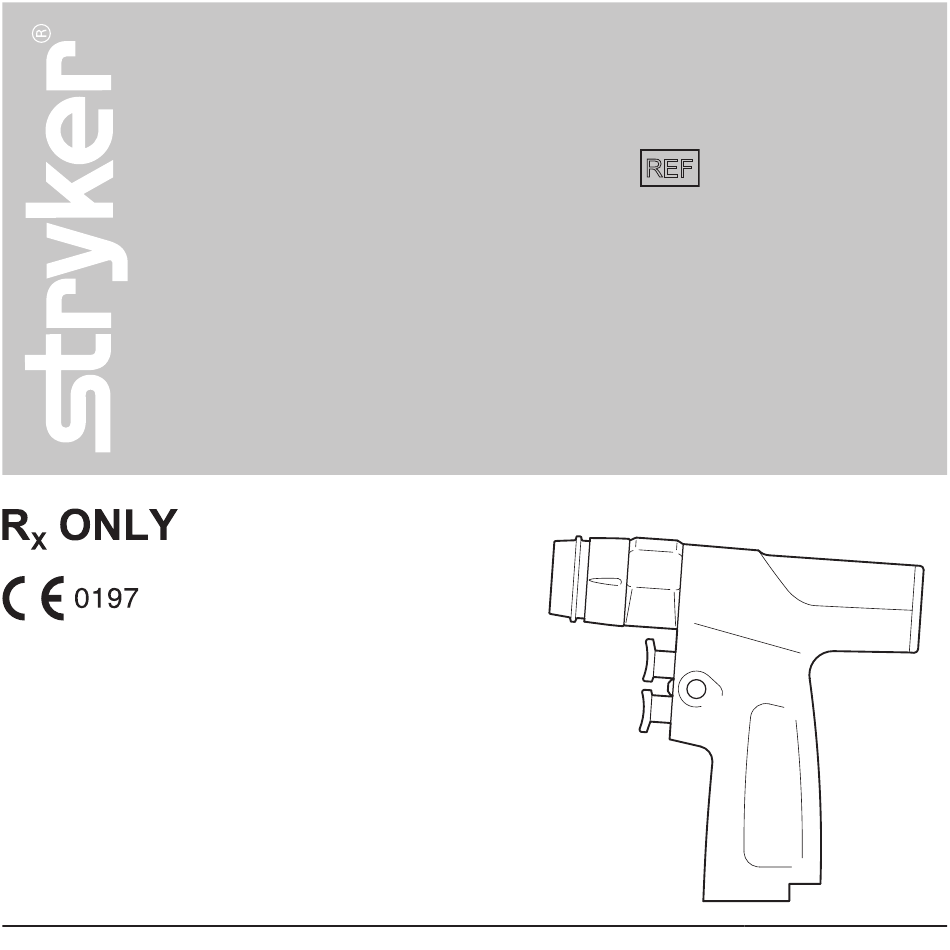

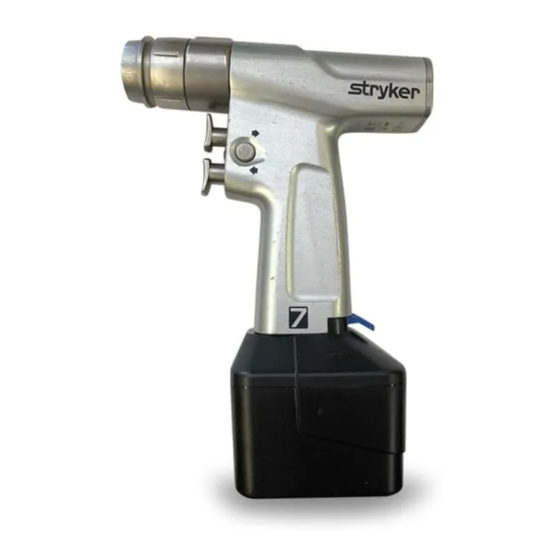

- Page 1 System 7 Dual Trigger Rotary Handpiece 7205-000-000 Instructions For Use ENGLISH (EN) 2018-11 7205-001-700 Rev-AA www.stryker.com...
- Page 2 7205-001-700 Rev-AA Introduction NOTE: The Stryker System 7 Dual Trigger Rotary Handpiece (handpiece) is a component of the Stryker This Instructions For Use manual is the most System 7 Battery Powered Heavy Duty System. comprehensive source of information for the safe and effective use of your product.
- Page 3 • For a complete list of accessories, contact your Accessories Stryker sales representative. Outside the US, contact your nearest Stryker subsidiary. WARNINGS: • Use only Stryker-approved system components and accessories, unless otherwise specified. DO NOT modify any system component or accessory. www.stryker.com...
- Page 4 7205-001-700 Rev-AA Accessories (continued) Features The following Stryker-approved accessories are sold Handpiece separately: DESCRIPTION Rotary Handpiece 6203-XXX-XXX series Attachments 7203-XXX-XXX series System 6 Battery Pack, Small 6212-000-000 System 6 Battery Pack, Large 6215-000-000 System 6 Aseptic Battery Kit, 6126-000-000 Large...
- Page 5 The reverse trigger is locked to prevent inadvertent operation of the handpiece in a counterclockwise direction. Forward/Reverse/Oscillate Mode – Both triggers are functional. Safe Mode – Both triggers are locked to prevent inadvertent operation of the handpiece. www.stryker.com...
- Page 6 To comply with European Community Waste Electrical and Electronic Equipment (WEEE) Directive 2012/19/ EU, ALWAYS collect this product separately for recycling. DO NOT dispose of this product as unsorted municipal waste. Contact your local distributor for disposal information. Direct current www.stryker.com...
- Page 7 NOTE: See the instructions for use supplied with the handpiece to another person. the battery pack and/or battery charger for charging • DO NOT change the position of the function switch instructions and specifications. while the handpiece is operating. www.stryker.com...
- Page 8 • DO NOT apply excessive pressure, such as bending or prying, with the accessory. Excessive pressure may bend or fracture the accessory and result in tissue damage, loss of tactile control, and/or the ejection of accessory fragments at a high velocity. www.stryker.com...
- Page 9 1. Remove the accessory from the attachment. 2. Pull the attachment collar back and remove the attachment from the handpiece. Care Instructions For processing instructions and disposal/recycle information, see the care instructions manual supplied with the equipment. www.stryker.com...
- Page 10 7205-001-700 Rev-AA Troubleshooting WARNING: DO NOT disassemble or service this equipment. NOTE: For service, contact your Stryker sales representative or call Stryker customer service. Outside the US, contact your nearest Stryker subsidiary. PROBLEM CAUSE ACTION The handpiece The battery pack is discharged.
- Page 11 The attachment is damaged. Return the attachment to Stryker for repair. The handpiece is damaged. Return the handpiece to Stryker for repair. The attachment and/ The accessory is damaged.
- Page 12 CAUTION: ALWAYS store the equipment within the specified environmental condition values throughout its useful life. NOTE: Specifications are approximate and may vary between devices or as a result of power supply fluctuations. Model: System 7 Dual Trigger Rotary Handpiece (REF 7205-000-000) Dimensions: 153 mm [6.1 inch] height 38 mm [1.5 inch] width...
- Page 13 EN 60601-1:2006+A12:2014, Ed: 3.1, Medical Electrical Equipment – Part 1: General Requirements for Basic Safety and Essential Performance; IEC Corrigendum 1 (2006); IEC Corrigendum 2 (2007); CENELEC Corrigendum (2010); CENELEC Amendment A11 (2011); IEC Amendment 1 (2013); IEC Corrigendum 3 (2014); CENELEC Amendment A12 (2014) www.stryker.com...
- Page 14 7205-001-700 Rev-AA Specifications (continued) Environmental Conditions: Operation Storage and Transportation Temperature Limitation: Humidity Limitation: Atmospheric Pressure Limitation: www.stryker.com...
- Page 15 The System 7 Dual Trigger Rotary Handpiece (REF 7205-000-000) is intended for use in the electromagnetic environment specified below. The customer or the user of the System 7 Dual Trigger Rotary Handpiece (REF 7205-000-000) should assure that it is used in such an environment.
- Page 16 The System 7 Dual Trigger Rotary Handpiece (REF 7205-000-000) is intended for use in the electromagnetic environment specified below. The customer or the user of the System 7 Dual Trigger Rotary Handpiece (REF 7205-000-000) should assure that it is used in such an environment.
- Page 17 60 Hz) magnetic field and 60 Hz and 60 Hz be at levels characteristic of a typical location in a typical commercial or IEC 61000-4-8 hospital environment. NOTE: U is the alternating current mains voltage prior to application of the test level. www.stryker.com...
- Page 18 The System 7 Dual Trigger Rotary Handpiece (REF 7205-000-000) is intended for use in the electromagnetic environment specified below. The customer or the user of the System 7 Dual Trigger Rotary Handpiece (REF 7205-000-000) should assure that it is used in such an environment.
- Page 19 TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the System 7 Dual Trigger Rotary Handpiece (REF 7205-000-000) is used exceeds the applicable RF compliance level above, the System 7 Dual Trigger Rotary Handpiece (REF 7205-000-000) should be observed to verify normal operation.
- Page 20 The System 7 Dual Trigger Rotary Handpiece (REF 7205-000-000) is intended for use in the electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the System 7 Dual Trigger Rotary Handpiece (REF 7205-000-000) can help prevent electromagnetic interference by maintaining...
- Page 24 ES/DE/FR/IT/NL 7205-001-710 JA/ZH/KO 7205-001-720 SV/DA/FI/PT/NO 7205-001-730 PL/EL 7205-001-750 Stryker Instruments 4100 E. Milham Kalamazoo, Michigan (USA) 49001 1-269-323-7700 1-800-253-3210 2018-11 7205-001-700 Rev-AA www.stryker.com...
