Net-2000™ Voice Codec Unit
User's Manual
The File mode Start / Stop button is the only method for taking the Net-2000™ VCU out of file mode.
When the File Mode Stop button is selected the Net-2000™ VCU is put in an idle mode waiting for a
command.

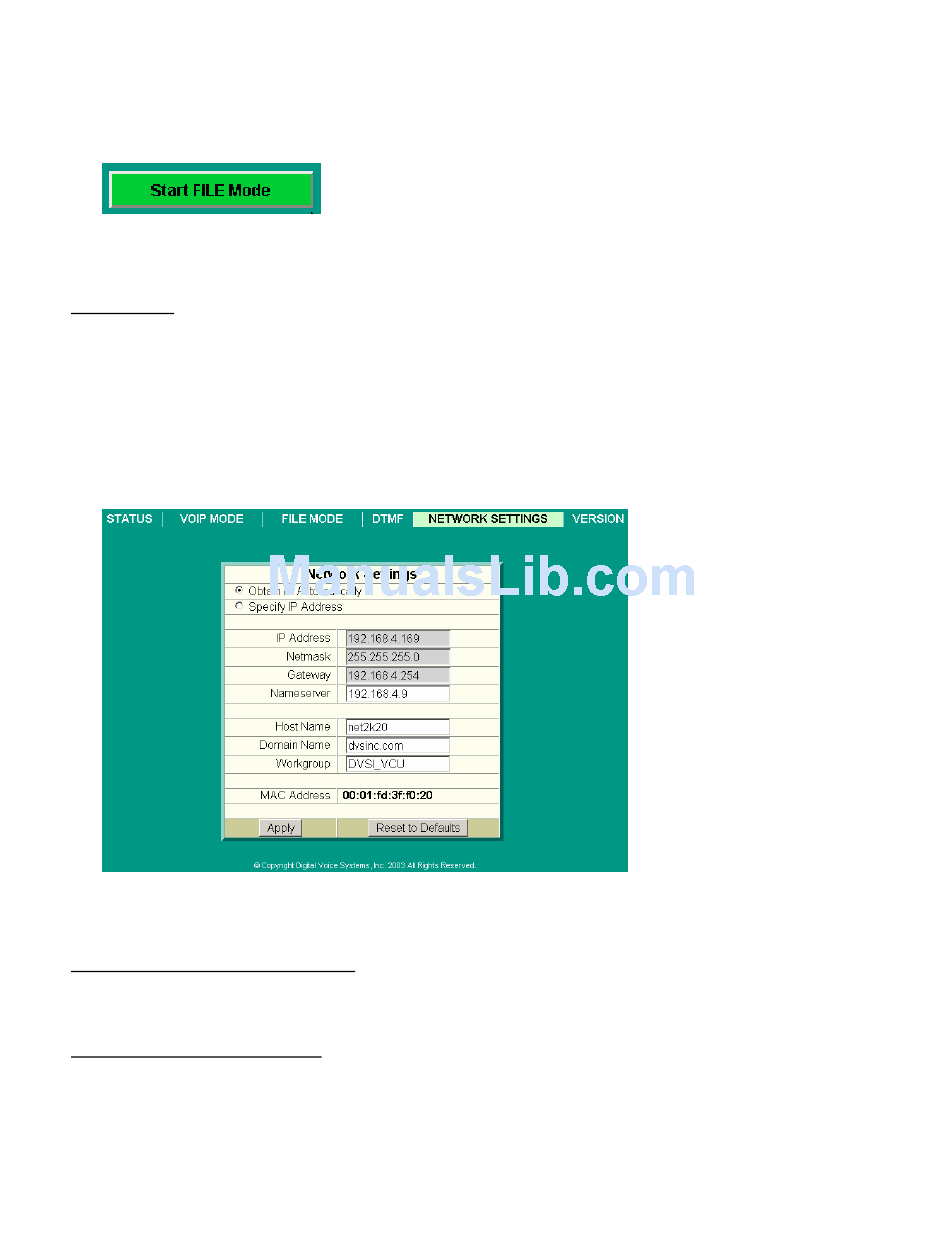

Figure 17 File Mode Start / Stop Buttons
Configuration
The Configuration selections are identical to selecting the Configuration setting on the VOIP Mode
Page. See Vocoder Mode Configuration.

Network Settings Page

Selecting the System Settings from the navigation menu will display a window with the current
network information of the Net-2000™ VCU. The user can set the Net-2000™ VCU to either obtain
the network settings automatically from a DHCP server (if available) or the user can manually enter
the required settings.
Figure 18 Net-2000™ VCU Network Settings Window
Obtain IP Automatically Radio Button
When selected the Net-2000™ VCU will get its network settings from the DHCP server on the LAN.
Specify IP Address Radio Button
When selected the Net-2000™ VCU allows the operator to manually set the network settings. After
the settings have been entered the APPLY Button must be selected in order for the Net-2000™ VCU
to be reset with the new network settings.
DVSI Confidential Proprietary
Section 3 – Net-2000™ VCU Control
Page 25
