Net-2000™ Voice Codec Unit
User's Manual

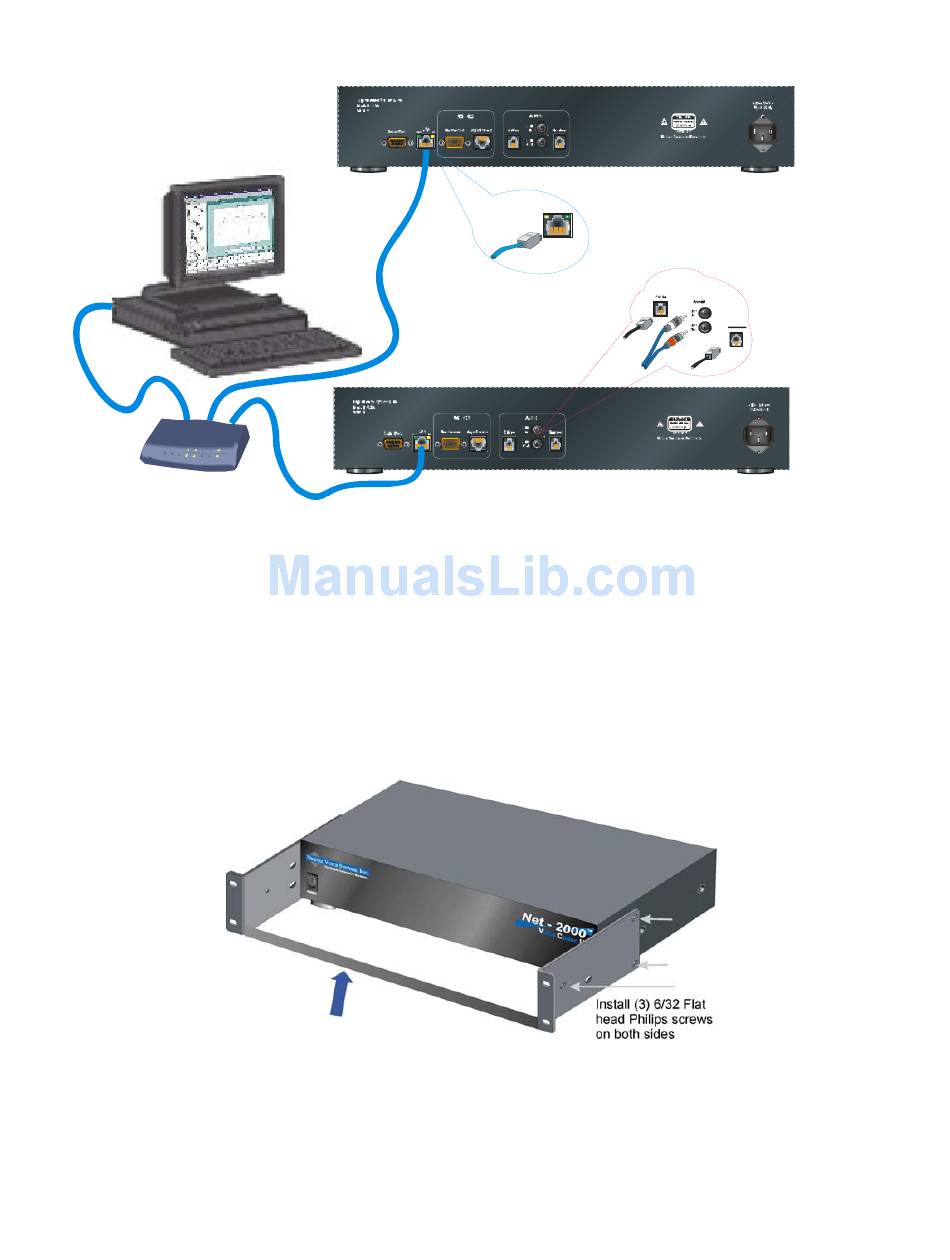

Figure 3 Connecting two Net-2000™ VCU's together
Rack Mount installation
When a rack mount kit is purchased with the Net-2000™ VCU the assembly is installed at the factory
prior to shipping. If the rack mount, needs to be removed there are three flat head Philips screws on
each side that secures the rack mount plate to the Net-2000™ VCU chassis as shown below. To
avoid scratching the sides of the Net-2000™ VCU when removing the rack plate push down on the
front of the plate so that it slips out from underneath the unit. When re-installing the rack mount slip it
up from underneath and push it back to be flush with front face. Use the same six screws to secure
the rack mount back on the chassis.
Figure 4 Rack Mount Installation
DVSI Confidential Proprietary
Ethernet CAT 5
cables
Section 2 – Net-2000™ VCU Installation
Ethernet
or
Voice
Interface
or
Page 6
