1.This product contains bolts and other small parts that may present a chocking hazard for children 3 years or
under. This unit must be assembled by an adult.
2.Periodically check the safety of your product by making sure all bolts and nuts are tightened securely.
COMPONENTPARTS
A
1pc
B
Base
Back Frame
D
2pcs
E
Armrest
Back Cushion
Cushions
PARTSLIST
2pcs
H
G
2pcs
35mm Screws and Washers
Nuts
2pcs
J
4pcs
K
45mm Screws and
Wooden Plugs
Washers
WARNING
1pc
C
2pcs
Armrests
1pc
F
1pc
Seat Cushion
I
1pcs
Allen Key
ASSEMBLY INSTRUCTIONS

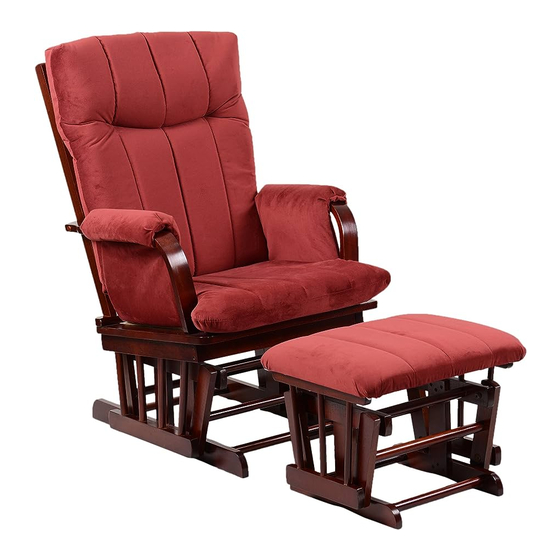

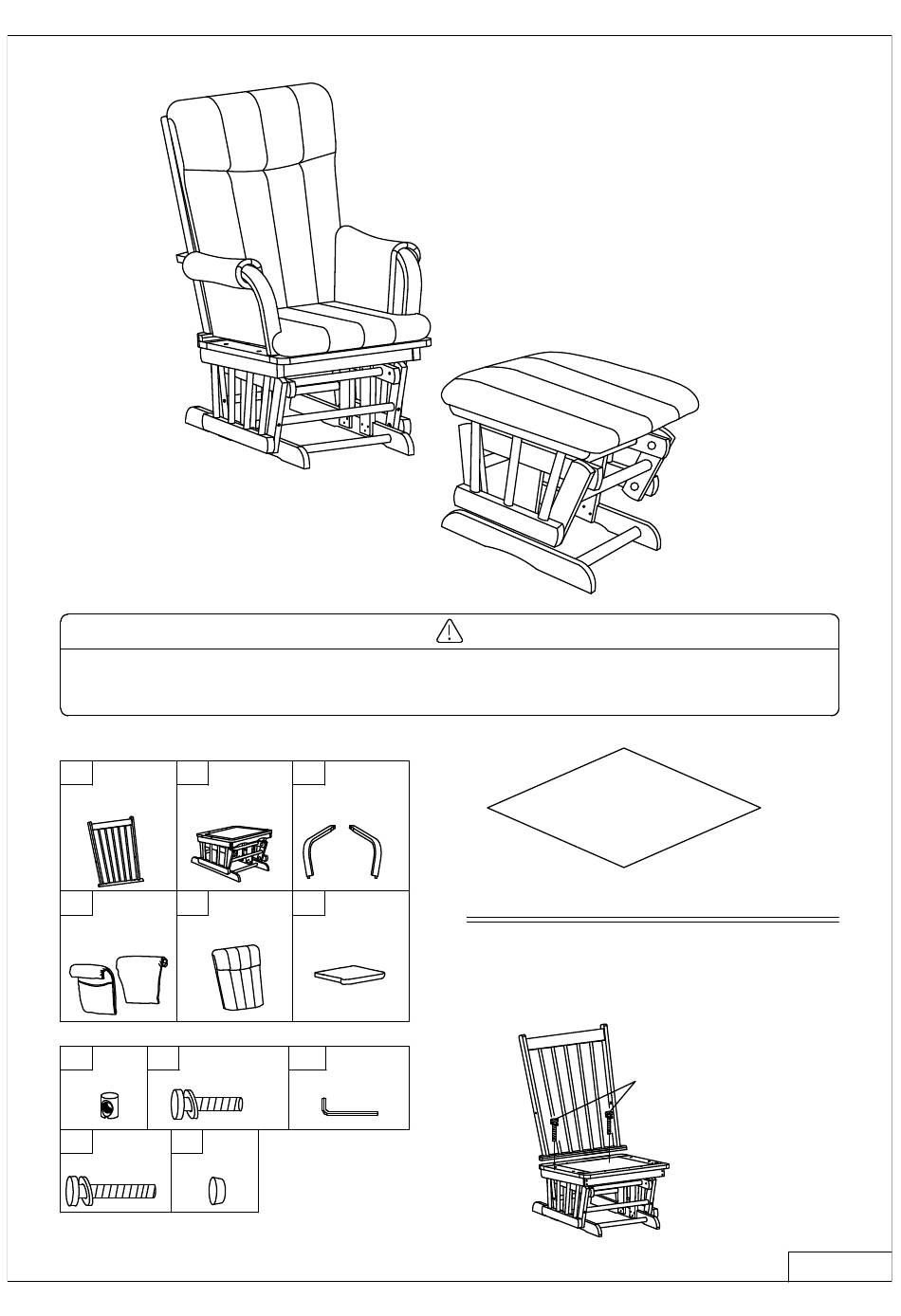

Glider Rocker with Ottoman
ITEM:AF20203
CAUTION
NOTE:
DO NOT TIGHTEN
SCREWS UNTIL STEP 3.
STEP 1
Place the Back Frame(A) on the base(B) and align
the holes on the Back Frame(A) with the holes on
the base(B). Use the Screws and Washers(H)
in each of the two holes as shown and tighten with
Allen Key (I).
A
B
H
Page2-1
Advertisement
Table of Contents
Related Manuals for ARTIVA AF20203
Summary of Contents for ARTIVA AF20203
- Page 1 ASSEMBLY INSTRUCTIONS Glider Rocker with Ottoman ITEM:AF20203 CAUTION WARNING 1.This product contains bolts and other small parts that may present a chocking hazard for children 3 years or under. This unit must be assembled by an adult. 2.Periodically check the safety of your product by making sure all bolts and nuts are tightened securely.
- Page 2 STEP 2 NOTE: DO NOT TIGHTEN SCREWS UNTIL STEP 3. Place Nuts(G) into Armrests(C). Insert Armrest(C) into Base(B) and tighten with Screws(J) by Allen Key(I). STEP 3 STEP 4 Align the hole on Armrests(C) and Back Frame(A) Attach the Armrest Cushions (D) to the Armrest(C) together and secure with Screws(J) by Allen Key(I).
