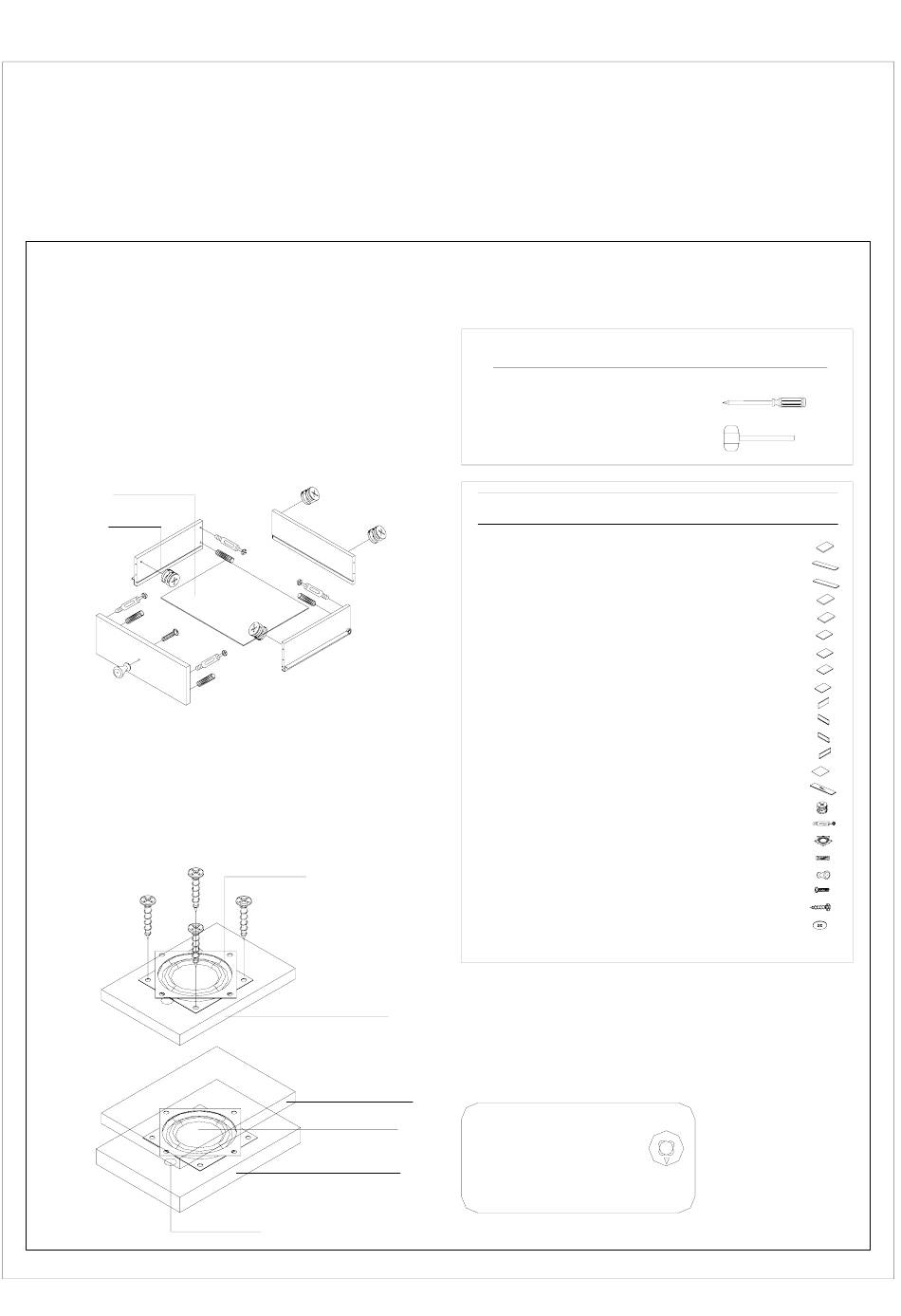

ARTIVA MERLOT 61010BC Assembly Instruction

Thank you for purchasing this quality product.Be sure to check all packing material carefully for
smail parts that may have come loose inside the carton du
STEP 1
-Attach the Panel (13) to Panel (11) & Panel (12) through
the Camlock Screws (17) &the Dowels (19) as shown
-Slide the Bottom Board (14) of the drawer into the pre-cut
grooves of the Panel (11&12)
-Attach the Panel (10) to the Panel (11) & Panel (12)
through the Camlock Screws (17) &the Dowels (19) as shown
-Attach the Handle (20) with the Handle Screws (21)
Bottom Board
Grooves
11
19
14
21
17
10
19
20
STEP 2
-Turn the Rotary Plate (18) in the crossing position
-Attach the Rotary Plate (18) onto the Revolve Board (5) with
the Screws (22)
-With the Revolve Board (5) upside down and the Rotary Plate
(18) attached on it turn to the crossing position
-Attach the other side of the Rotary Plate (18) onto Bottom
Board (4) through the Hole A with Screws (22)
Rotary Plate
22
a
b
Hole A
ASSEMBLY INSTRUCTION
ITEM NO:61010BC、61010ML、61011SW
MERLOT STANDING CABINET
16
17
13
12
18
Revolved Board(5)
Revolved Board(5)
Rotary Plate
Bottom Board(4)
ring shipment.
TOOLS REQUIRED(NOT PROVIDED)
PHILLIPS SCREWDRIVER
RUBBER MALLET
NO. PARTS
1 Top Board
2 Left Panel
3 Right Panel
4 Bottom Board
5 Revolve Board
6 Top Drawer panel
7 Bottom Drawer panel
8 Shelve 1
9 Shelve 2
10 Face Board Of Drawer
11 Left Board Of Drawer
12 Right Board Of Drawer
13 Back Board Of Drawer
14 Bottom Board Of Drawer 323*243*5
15 Back Board、Mirror
16 Camlock
17 Camlock Screws
18 Rotary Plate
19 Dowels
20 Handle
21 Handle Screws
22 Revolve Screws
23 Nut Caps
IMPORTANT
Always ensure that arrow on
Camlock is pointing towards
Camlock Screw.
Turn Camlock clockwise until tight
SIZE QTY PICTURE
440*289*35 1PC
1675*288*35 1PC
1675*288*35 1PC
440*289*35 1PC
460*309*41 1PC
368*269*15 1PC
368*269*15 1PC
368*269*15 1PC
368*269*15 1PC
362*150*15 1PC
250*100*15 1PC
250*100*15 1PC
312*100*15 1PC
1PC
1675*368*20 1PC
20PCS
20PCS
1PC
40PCS
1PC
1PC
8PCS
8PCS
Made in china
