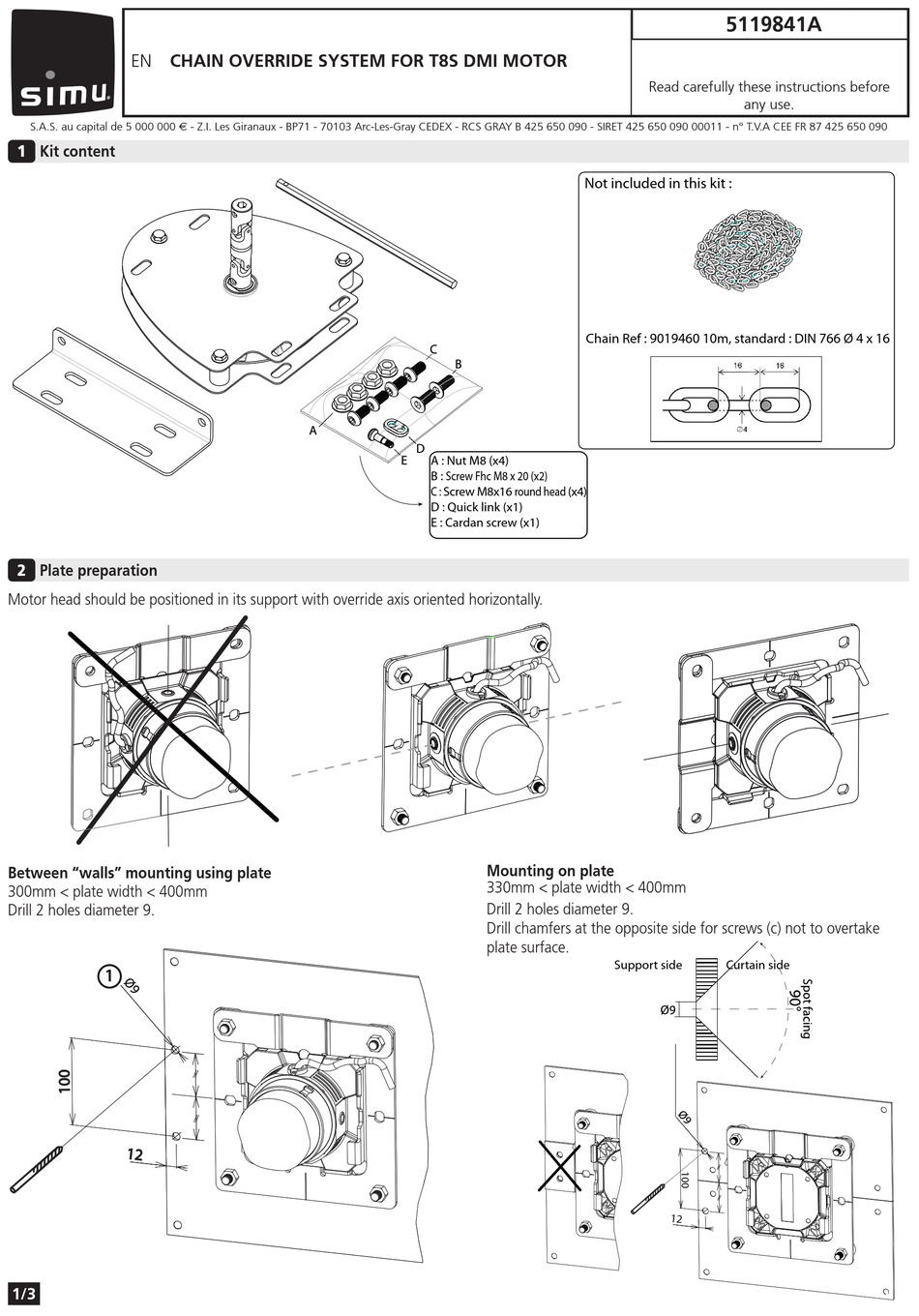

Simu T8S DMI Installation Manual page 4

EN CHAIN OVERRIDE SYSTEM FOR T8S DMI MOTOR
S.A.S. au capital de 5 000 000 ! - Z.I. Les Giranaux - BP71 - 70103 Arc-Les-Gray CEDEX - RCS GRAY B 425 650 090 - SIRET 425 650 090 00011 - n° T.V.A CEE FR 87 425 650 090
1
Kit content
2 Plate preparation
Motor head should be positioned in its support with override axis oriented horizontally.
Between "walls" mounting using plate
300mm < plate width < 400mm
Drill 2 holes diameter 9.
1
1/3
Not included in this kit :
Chain Ref : 9019460 10m, standard : DIN 766 Ø 4 x 16
A : Nut M8 (x4)
B : Screw Fhc M8 x 20 (x2)
C : Screw M8x16 round head (x4)
D : Quick link (x1)
E : Cardan screw (x1)
Mounting on plate
330mm < plate width < 400mm
Drill 2 holes diameter 9.
Drill chamfers at the opposite side for screws (c) not to overtake
plate surface.
5119841A
Read carefully these instructions before
any use.
Support side Curtain side
