Hoover ch20100 Owner's Manual

OWNER'S MANUAL
Operating and
Servicing
Instructions
www.hoover.com
• Please read these instructions carefully before using
your cleaner.
• Let us help you put your vacuum together or
answer any questions, call:
1-800-944-9200.
For quick reference, please record your
©2011 All rights reserved
vacuum information below.
Part # 961151004
Model #:
ID #102882R0
Mfg. Code:
4/11
(Mfg Code is located on the bottom of the cleaner)

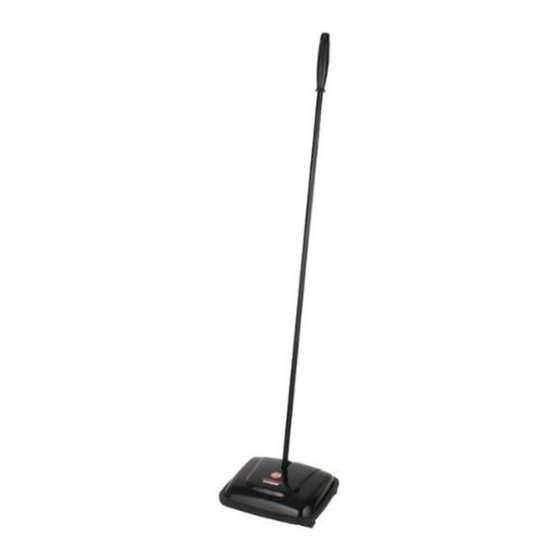

FEATURES
Fig. 1 Fig. 1
1. Handle Grip (1)
1
2. Handle Sub-Sections (3)
3. Pivot
4. Base
5. Bumper
Fig. 2
6. Dirt Trays (2)
7. Edge Cleaning Brushes (4)
8. Rubber Blade Roller
9. Brush End Caps (2)
2
Fig. 2
8
6
7
7
3
4 9
9
7
7 7
5
6
HOW TO ASSEMBLE
REFER TO Fig. 1 ABOVE
Fig. 3
Handle Assembly
No tools needed. Screw handle grip and three (3) sub-sec-
tions together to form the handle (Figure 3). Connect base
and handle by screwing handle onto pivot.
HOW TO USE
Push sweeper in forward and backward motion to remove dirt on many floor sur-
faces. NOTE: Empty when surface dirt becomes difficult to remove.
DIRT REMOVAL
Turn sweeper upside down. Lift up on Fig. 1 Fig. 2
side brushes (Fig. 1) and dump out
each dirt tray over waste container
(Fig. 2).
STORAGE
The sweeper folds flat against the wall when hung from
the hole in the handle grip.
REPLACE BRUSHROLL
To Remove: Press tabs at brush end caps outward and pull
brushroll out. To Replace: Insert the ends of the brushroll
into the end caps. Push down until brushroll snaps into
place.
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE REASON POSSIBLE SOLUTION
Cleaner won't 1. Dirt trays are full. 1. Empty dirt trays.
pick-up or low 2. Brushroll worn. 2 . Replace brushroll.
suction
Dust escaping from 1. Dirt trays are full. 1. Empty dirt trays.
cleaner
Cleaner is difficult 1. Debris caught in wheels. 1. Remove debris.
to push
To obtain approved Hoover service and genuine Hoover parts, locate the nearest Authorized
Hoover Warranty Service Dealer (Depot) by:
• Checking the Yellow Pages under "Vacuum Cleaners" or "Household".
• Visit our website at hoover.com (U.S. Customers) or hoover.ca
(Canadian customers).
• Follow the service center link to find the service outlet nearest you.
• For an automated referral of authorized service outlet locations call
1-800-944-9200.
Do not send your vacuum to Hoover, Inc., Company in Glenwillow for service. This will only
result in delay.
If you need further assistance:
To speak with a customer service representative call1-800-263-6376; Mon-Fri 8am-7pm
EST. In Canada, contact Hoover Canada, Toronto: 755 Progress Ave., Scarborough, ON
M1H 2W7 OR Hoover Canada, Edmonton: 18129-111 Ave., Edmonton, AB T5W 2P2,
Phone: 1-800-263-6376, Mon-Fri 8am-7pm EST.
Always identify your vacuum by the complete model number when requesting information or
ordering parts. (The model number appears on the bottom of the vacuum. Please do not
return this product to the store.
