Axis AX18F003 Quick Start Manual

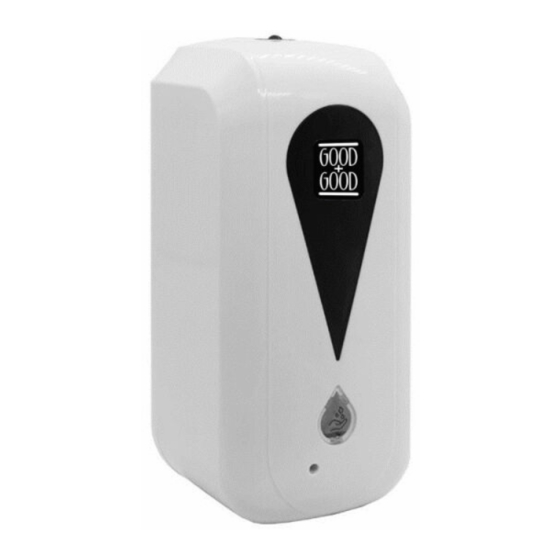

SMART SENSOR HAND SANITIZER DISPENSER - WALL MOUNT

PRODUCT DESCRIPTION

Smart sensor hand washing machine / induction soap or gel dispenser is an automatic spray type hand sanitizing
machine / soap dispenser using a digital circuit control, infra-red automatic induction and battery or DC power drive.
Features stable and reliable operations, strong resistance to light-source interference, and sensitive induction. The
infra-red sensor automatically ejects liquid, which is suitable for use with various disinfectants, potions / hand
sanitizers; Utilizes a low-energy circuit drive, resulting in longer battery life. Being versatile, it is an ideal choice for
public venue usage.
1.Turn the top groove button to unlock the
cover
*Note: turn off the power when adding hand
sanitizer.
4. Includes four grooves on the back
facilitating wall mounting for easy use

PRODUCT FEATURES

• Fully automatic induction to avoid the spread of bacteria caused by contact.
• Fully automatic power-saving chip - energy-saving, environmentally friendly and cost-effective.
• User-friendly design - simple installation, simple use and long lasting.
• Delivers extended battery life and supports AC/DC power supply.
• Automatic continuous-spray function, when triggered for continuous sensing, the unit will dispense spray liquid
every 3 seconds. It will stop automatically, re-sense, and continue the cycle.
• Viscosity: 4800

SPECIFICATIONS

• Product size: 4.92 x 4.21 x 10.24 inches
• Product capacity: 1,000 ml
• Product material: ABS
• Weight: 1.32 lbs
• M3 screw (with strap) for hanging dispenser
• M8 screws for mounting and securing base (with strap)
• Power Details: DC 5V 0.5 - 1A

PRECAUTIONS

1. If the casing is open, the dispenser cannot work. Once the
casing is closed, the green light will illuminate, and the
system is ready to use.
2. To prevent malfunction, ensure at least 16 inches of space
under the dispenser. Do not install in places exposed to
strong sunlight, or above strong reflective objects.
3. Be sure to prevent any object from blocking the liquid outlet.
4. Keep the liquid in the machine clean and free of other strip-
shaped or block-shaped impurities.
5. Avoid direct fire on the machine
6. If there is liquid in the container during disassembly, do not
lay the product flat to prevent the liquid from flowing out. The
liquid must be poured out before it can be laid flat.
Axis Product Group LLC
2108 South 54th Street
Suite 3
Rogers, AR 72758
(346) 326-7663
2. Open the cover in the direction of the
arrow. The cover can be flipped nearly 180°
to facilitate removing the water bottle
5. Turn on the switch, as shown in the
figure; the power indicator lights up, and
the machine starts to work
ITEM # AX18F003
3. Unplug the water pipe cover. The water
bottle can be filled with 1000ml of liquid;
Press the pump head a few times to expel
excess air for first time use
6. Place your hand under the machine; no
need to touch, sensor will automatically
dispense liquid. Sensing distance is 3
inches.

WARNING

1. This product is suitable for children over 14 years of age. It
contains small parts and is not suitable for children under 3
years of age.
2. During use, please store packaging. In order to avoid the
danger of asphyxia caused by children playing, use with
adult supervision.
3. This product is not waterproof. Do not let the product touch
any liquid or be splashed, keep away from fire source.
4. It is strictly forbidden to use products in hanging environment
without fences, such as rooftops.
5. The power supply mode is 3.7V 1200 lithium battery.
6. The input voltage of the product is DC 5V 0.5 - 1A. Do not
use a charging adapter with higher voltage.
7. Do not charge for more than 4 hours, do not over-charge.
Batteries and / or charging wires should be evaluated and
confirmed by maintenance personnel.
8. The pack contains important information and must be
retained.

PACKING

Ctn. Net weight: 9 lbs
Packing: 1 pc / box, 6 boxes / ctn.
Power Supply Options:
-ACA 5 VDC Plug-in Power Converter
-HW6 Hardwired Power Converter (Sold Separately)
-CWB. Connector Wire for Hardware Install
Optional Power Supply Accessories:
"10 year battery" - Long Life
-LL.
-MJ. Mini Junction Box
