Axis F9114 User Manual

Main unit
Hide thumbs Also See for F9114:
Table of Contents

Advertisement

Quick Links

Download this manual
AXIS F9114 Main Unit
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F9114 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis F9114

Summary of Contents for Axis F9114

  • Page 1 AXIS F9114 Main Unit User Manual...

  • Page 2: Table Of Contents

    AXIS F9114 Main Unit Table of Contents Get started ..........

  • Page 3: Get Started

    For more information, see the Connector Kit FAKRA Installation Guide. Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 4: Open The Device's Webpage

    1. Open a browser and enter the IP address or host name of the Axis device. If you do not know the IP address, use AXIS IP Utility or AXIS Device Manager to find the device on the network. 2. Enter the username and password. If you access the device for the first time, you must set the root password. See Set a new password for the root account on page 4 .
  • Page 5 AXIS F9114 Main Unit Get started To watch this video, go to the web version of this document. help.axis.com/?&piaId=65165&section=webpage-overview Axis device web interface...

  • Page 6: Configure Your Device

    AXIS F9114 Main Unit Configure your device Configure your device Adjust the image This section includes instructions about configuring your device. If you want to learn more about how certain features work, go to Learn more on page 46. Level the camera To adjust the view in relation to a reference area or an object, use the level grid in combination with a mechanical adjustment of the camera.
  • Page 7 AXIS F9114 Main Unit Configure your device Note A high max shutter value can result in motion blur. • To slow down the shutter speed, set max shutter to the highest possible value. • If possible, open the aperture. Reduce motion blur in low-light conditions To reduce motion blur in low-light conditions, adjust one or more of the following settings in Video >...
  • Page 8 Use corridor format to better utilize the full field of view in a long and narrow area, for example a staircase, hallway, road, or tunnel. 1. Depending on your device, turn the camera or the 3-axis lens in the camera 90° or 270°.

  • Page 9: View And Record Video

    AXIS F9114 Main Unit Configure your device Show an image overlay You can add an image as an overlay in the video stream. 1. Go to Video > Overlays. 2. Select Image and click 3. Go to the Images tab.

  • Page 10: Set Up Rules For Events

    AXIS F9114 Main Unit Configure your device 3. Type the IP address of the host server. 4. Type the name of the shared location on the host server under Network share. 5. Type the username and password. 6. Select the SMB version or leave it on Auto.
  • Page 11 AXIS F9114 Main Unit Configure your device Record video when the camera detects an object This example explains how to set up the camera to start recording to the SD card five seconds before it detects an object and to stop one minute after.
  • Page 12 AXIS F9114 Main Unit Configure your device Note If you update the overlay text it will be automatically updated on all video streams dynamically. Record video when the camera detects loud noises This example explains how to set up the camera to start recording to the SD card five seconds before it detects loud noise and to stop two minutes after.
  • Page 13 AXIS F9114 Main Unit Configure your device 6. Type an email address to send the email to. 7. The camera doesn’t have it’s own email server, so it will need to log into another email server to be able to send mails. Fill in the rest of the information according to your email provider.

  • Page 14: Audio

    AXIS F9114 Main Unit Configure your device 14. In the list of actions, under Notifications, select Send notification to email and then select the recipient from the list. 15. Type a subject and a message for the email. 16. Click Save.

  • Page 15: The Device Interface

    AXIS F9114 Main Unit The device interface The device interface To reach the device interface, enter the device’s IP address in a web browser. Note Support for the features and settings described in this section varies between devices. Show or hide the main menu.

  • Page 16: Video

    AXIS F9114 Main Unit The device interface Video Click to play the live video stream. Click to freeze the live video stream. Click to take a snapshot of the live video stream. The file is saved in the ‘Downloads’ folder on your computer. The image file name is [snapshot_YYYY_MM_DD_HH_MM_SS.jpg].
  • Page 17 AXIS F9114 Main Unit The device interface • Refresh: Click to refresh the still image in the live view. Click to show the live view at full resolution. If the full resolution is larger than your screen size, use the smaller image to navigate in the image.
  • Page 18 AXIS F9114 Main Unit The device interface Brightness: Use the slider to adjust the light intensity. This can make objects easier to see. Brightness is applied after image capture, and doesn’t affect the information in the image. To get more details from a dark area, it’s usually better to increase gain or exposure time.
  • Page 19 AXIS F9114 Main Unit The device interface When the camera detects the color temperature of the incoming light, it can adjust the image to make the colors look more natural. If this is not sufficient, you can select a suitable light source from the list.
  • Page 20 AXIS F9114 Main Unit The device interface • Flicker-reduced : This is the same as flicker-free, but the camera might use shutter speeds faster than 1/100 s (50 Hz) and 1/120 s (60 Hz) for brighter scenes. • Flicker-reduced 50 Hz : This is the same as flicker-free, but the camera might use shutter speeds faster than 1/100 s for brighter scenes.
  • Page 21 Zipstream: A bitrate reduction technology, optimized for video surveillance, that reduces the average bitrate in an H.264 or H.265 stream in real time. Axis Zipstream applies a high bitrate in scenes where there are multiple regions of interest, for example in scenes with moving objects.
  • Page 22 AXIS F9114 Main Unit The device interface Lower limit : Enter a value to adjust the frame rate between minimal fps and the stream default fps based on scene motion. We recommend you to use lower limit in scenes with very little motion, where the fps could drop to 1 or lower.

  • Page 23: Audio

    AXIS F9114 Main Unit The device interface Overlays : Click to add an overlay. Select the type of overlay from the dropdown list: • Text: Select to show a text that is integrated in the live view image and visible in all views, recordings and snapshots.
  • Page 24 AXIS F9114 Main Unit The device interface Allow stream extraction : Turn on to allow stream extraction. Input type: Select the type of input, for instance if it’s a microphone or line-in. Power type: Select power type for your input.

  • Page 25: Recordings

    AXIS F9114 Main Unit The device interface Recordings Click to filter the recordings. From: Show recordings done after a certain point in time. To: Show recordings up until a certain point in time. Source : Show recordings based on source.
  • Page 26 AXIS F9114 Main Unit The device interface Click to stop the recording.
  • Page 27 AXIS F9114 Main Unit The device interface Click to show more information and options about the recording. Set export range: If you only want to export part of the recording, enter from when to when. Click to delete the recording.

  • Page 28: Apps

    • Activate license with a key: If the app requires a license, you need to activate it. Use this option if your device doesn’t have internet access. If you don’t have a license key, go to axis.com/applications. You need a license code and the Axis product serial number to generate a license key.
  • Page 29 AXIS F9114 Main Unit The device interface Network IPv4 Assign IPv4 automatically: Select to let the network router assign an IP address to the device automatically. We recommend automatic IP (DHCP) for most networks. IP address: Enter a unique IP address for the device. Static IP addresses can be assigned at random within isolated networks, provided that each address is unique.
  • Page 30 One-click cloud connection One-click cloud connection (O3C) together with an O3C service provides easy and secure internet access to live and recorded video from any location. For more information, see axis.com/end-to-end-solutions/hosted-services. Allow O3C: • One-click: The default setting. Press and hold the control button on the device to connect to an O3C service over the internet.
  • Page 31 Authentication failed: Sends a trap message when an authentication attempt fails. Note All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see AXIS OS Portal > SNMP. • v3: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, we recommend you to activate HTTPS, as the password is then sent through HTTPS.
  • Page 32 To install test firmware or other custom firmware from Axis on the device, you need a custom-signed firmware certificate. The certificate verifies that the firmware is approved by both the device owner and Axis. The firmware can only run on a specific device which is identified by its unique serial number and chip ID.
  • Page 33 AXIS F9114 Main Unit The device interface Users Add user: Click to add a new user. You can add up to 100 users. Username: Enter a unique username. New password: Enter a password for the user. Passwords must be 1 to 64 characters long. Only ASCII printable characters (code 32 to 126) are allowed in the password, for example letters, numbers, punctuation, and some symbols.
  • Page 34 AXIS F9114 Main Unit The device interface Use this condition as a trigger: Select to make this first condition function only as a starting trigger. It means that once the rule is activated it remains active for as long as all the other conditions are met, no matter the state of the first condition. If you don’t select this option, the rule will simply be active whenever all the conditions are met.
  • Page 35 RSA is the preferred method during negotiation, followed by ECDSA, ED25519, and DSA. Make sure to enter the right MD5 host key that is used by your SFTP server. While the Axis device supports both MD5 and SHA-256 hash keys, we recommend using SHA-256 due to stronger security over MD5. For more information on how to configure an SFTP server with an Axis device, go to the AXIS OS Portal.
  • Page 36 IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and minimal network bandwidth. The MQTT client in Axis device firmware can simplify integration of data and events produced in the device to systems which are not video management systems (VMS).
  • Page 37 AXIS F9114 Main Unit The device interface Keep alive interval: The keep alive interval enables the client to detect when the server is no longer available without having to wait for the long TCP/IP timeout. Timeout: The time interval in seconds to allow a connect to complete. Default value: 60 Device topic prefix: Used in the default values for the topic in the connect message and LWT message on the MQTT client tab, and in the publication conditions on the MQTT publication tab.
  • Page 38 AXIS F9114 Main Unit The device interface MQTT subscriptions Add subscription: Click to add a new MQTT subscription. Subscription filter: Enter the MQTT topic that you want to subscribe to. Use device topic prefix: Add the subscription filter as prefix to the MQTT topic.
  • Page 39 AXIS F9114 Main Unit The device interface • Audio codec priority: Select at least one audio codec with the desired audio quality for SIP calls. Drag-and-drop to change the priority. Note The selected codecs must match the call recipient codec, since the recipient codec is decisive when a call is made.
  • Page 40 DNS. Windows SMB/CIFS names are not supported. • Network share: Enter the name of the shared location on the host server. Several Axis devices can use the same network share, since each device gets its own folder.
  • Page 41 AXIS F9114 Main Unit The device interface Retention time: Select how long to keep recordings, to limit the amount of old recordings or to comply with regulations regarding data storage. If the network storage becomes full, old recordings are removed before the selected time period has passed.
  • Page 42 Delete user: Delete the user. You can’t delete the root user. By creating an ONVIF user, you automatically enable ONVIF communication. Use the username and password for all ONVIF communication with the device. For more information see the Axis Developer Community at axis.com. ONVIF media profiles An ONVIF media profile consists of a set of configurations that you can use to change media stream settings.
  • Page 43 AXIS F9114 Main Unit The device interface The camera tampering detector generates an alarm when the scene changes, for example because the lens is covered, sprayed or severely put out of focus, and the time in Trigger after has passed. The tampering detector only activates when the camera has not moved for at least 10 seconds.
  • Page 44 AXIS F9114 Main Unit The device interface Current state: Shows the current state of the port. The input or output is activated when the current state is different from the normal state. An input on the device has an open circuit when it’s disconnected or when there is a voltage above 1 V DC.

  • Page 45: Maintenance

    Severity: Select which messages to send when triggered. CA certificate set: See the current settings or add a certificate. Plain config Plain config is for advanced users with experience of Axis device configuration. Most parameters can be set and edited from this page. Maintenance Restart: Restart the device.

  • Page 46: View Area

    H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. To install additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller.
  • Page 47 H.265 can, without compromising image quality, reduce the size of a digital video file by more than 25% compared to H.264. Note • H.265 is licensed technology. The Axis product includes one H.265 viewing client license. Installing additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller.

  • Page 48: Applications

    Target bitrate Applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications. To find the user manuals for Axis applications, go to help.axis.com.

  • Page 49: Security

    AXIS Object Analytics AXIS Object Analytics is an analytic application that comes preinstalled on the camera. It detects objects that move in the scene and classifies them as, for example, humans or vehicles. You can set up the application to send alarms for different types of objects. To find out more about how the application works, see the user manual.

  • Page 50: Specifications

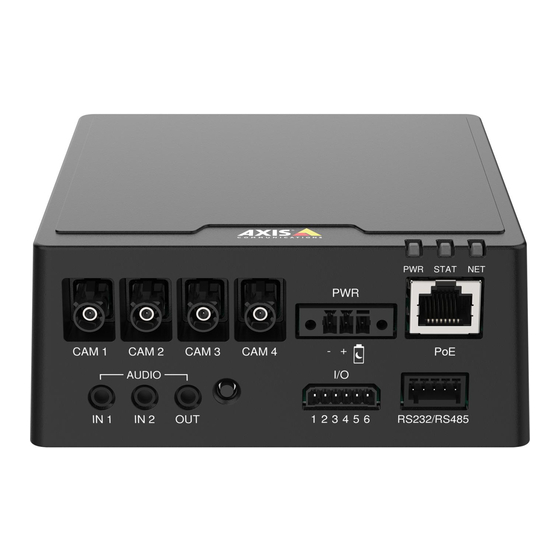

    AXIS F9114 Main Unit Specifications Specifications Product overview 2x MicroSD card slots Kensington lock 4x FAKRA connectors 2x Audio in Audio out Control button I/O connector Power connector RS232/RS485 connector 10 Network connector (PoE) LED indicators Indication Status LED Unlit Connection and normal operation.

  • Page 51: Sd Card Slot

    This product supports microSD/microSDHC/microSDXC cards. For SD card recommendations, see axis.com. microSD, microSDHC, and microSDXC Logos are trademarks of SD-3C LLC. microSD, microSDHC, microSDXC are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both.
  • Page 52 AXIS F9114 Main Unit Specifications Digital output - For connecting external devices such as relays and LEDs. Connected devices can be activated by the VAPIX® Application Programming Interface, through an event or from the product’s webpage. 6-pin terminal block Function...
  • Page 53 AXIS F9114 Main Unit Specifications DC power input:...
  • Page 54 5-pin terminal block for the RS232/RS485 serial interface used to control auxiliary equipment. In order to use the RS232/RS485 port you need a third-party application for AXIS Camera Application Platform. The port can be used in the following modes: •...

  • Page 55: Troubleshooting

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 56: Technical Issues, Clues, And Solutions

    3. Go to Maintenance > Firmware upgrade and click Upgrade. When the upgrade has finished, the product restarts automatically. You can use AXIS Device Manager to upgrade multiple devices at the same time. Find out more at axis.com/products/axis-device-manager. Technical issues, clues, and solutions If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support.

  • Page 57: Performance Considerations

    IP addresses obtained from a DHCP server are dynamic and may change. If the IP address has been changed by DHCP changed, use AXIS IP Utility or AXIS Device Manager to locate the device on the network. Identify the device using its model or serial number, or by the DNS name (if the name has been configured).

  • Page 58: Contact Support

    Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. Contact support Contact support at axis.com/support.
  • Page 59 User Manual Ver. M3.2 AXIS F9114 Main Unit Date: November 2022 © Axis Communications AB, 2021 - 2022 Part No. T10168518...
