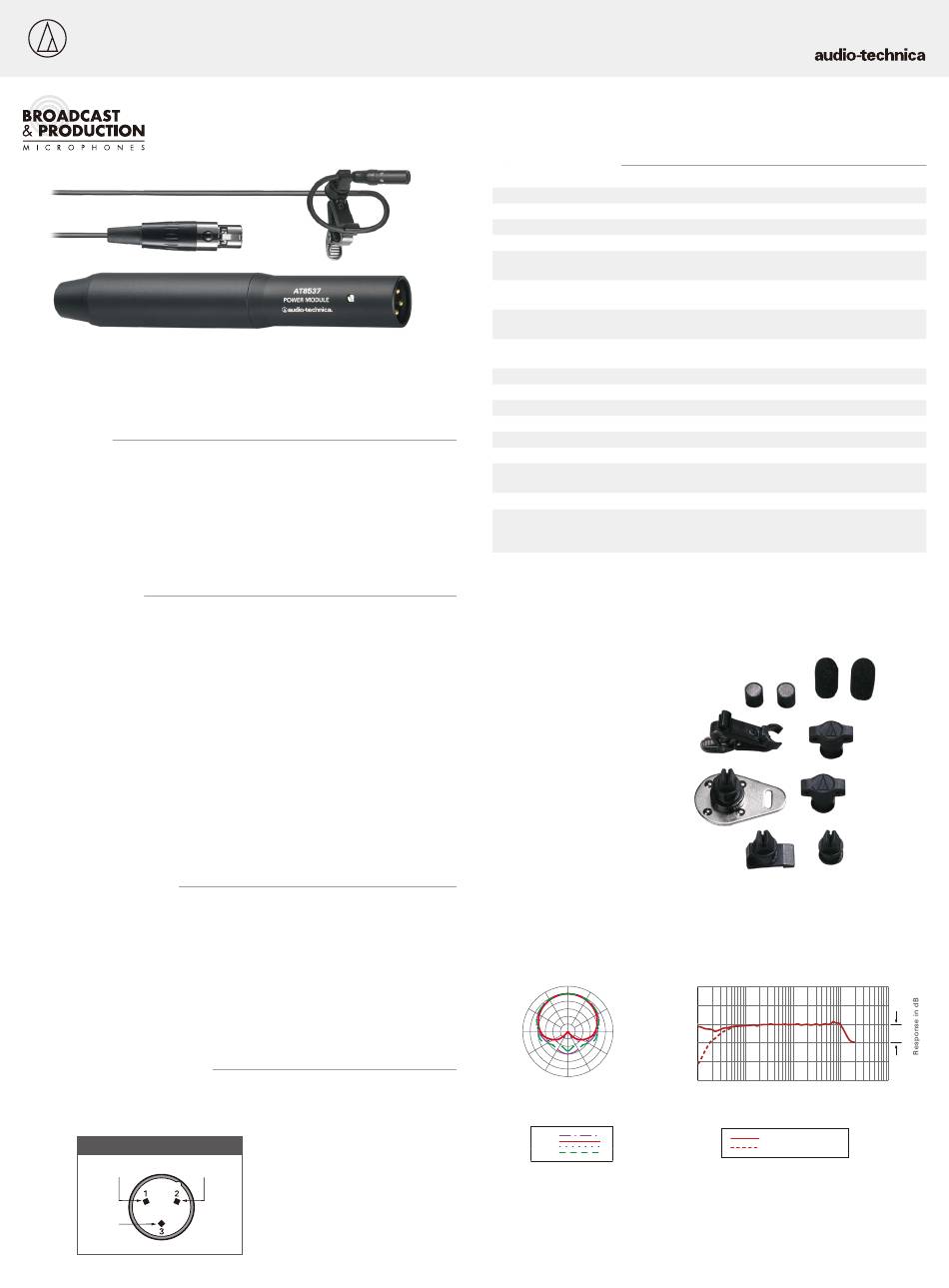

Audio Technica Broadcast & Production AT898 User Manual

User Manual
Thank you for purchasing this product. Before using the product, read through the user manual to
ensure that you will use the product correctly. Please keep this manual for future reference.

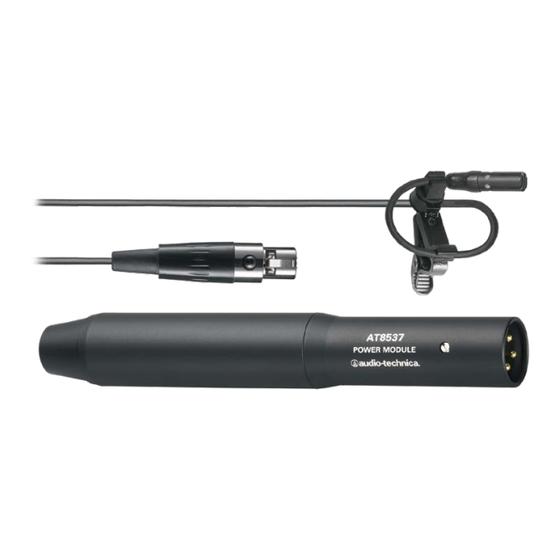

■ Features
• Maximum intelligibility and clean, accurate reproduction for lecturers, stage and television talent,
and worship leaders
• Low-profile design (a mere 5 mm in diameter) is ideal for applications requiring minimum visibility
• Cardioid polar pattern improving isolation of desired sound source
• Includes an extensive array of accessories
• Switchable low-frequency roll-off reduces sensitivity to popping in close vocal use
• Operates on battery or phantom power
■ Notes on use
AT898 is designed to be worn as a lavalier or hidden in loose clothing. For use as a lavalier, attach
the microphone about six inches below the chin. Anticipate movements that may cause the
microphone to rub against or be covered by clothing, and position the microphone to avoid it.
The included single and double mic holders are interchangeable with all the bases. To change the
holders, simply remove original holder and snap in the desired one. When using the AT898 in
extremely close situations, slip the included open-pore foam windscreen over the mic to reduce wind
noise or "popping."
CAUTION! To avoid possible injury, use caution when affixing the AT898 viper clip to clothing. The
pins are sharp and may puncture skin. For best results, ensure that pin ends rest on outside of
clothing.
The AT898 requires 11-52V DC phantom power, or a 1.5V AA battery for operation. A battery need
not be in place for phantom power operation.
Battery installation: Unscrew the base of the power supply unit and insert one AA battery into the
battery compartment, being certain to observe battery polarity as marked. Then simply screw the
base shut. Alkaline batteries are recommended for longest life. Remove the battery during long-term
storage.
Avoid leaving the microphone in the open sun or in areas where temperatures exceed 43°C for
extended periods. Extremely high humidity should also be avoided.
■ Safety precaution
Although this product was designed to be used safely, failing to use it correctly may result in an
accident. To ensure safety, observe all warnings and cautions while using the product.
■Cautions for the product
• Do not subject the product to strong impact to avoid malfunction.
• Do not disassemble, modify or attempt to repair the product.
• Do not handle the product with wet hands to avoid electric shock or injury.
• Do not store the product under direct sunlight, near heating devices or in a hot, humid or dusty
place.
■ Connection procedure
Connect the output terminals of AT8537 power module to a device that has a microphone input
(balanced input) compatible with a phantom power supply. The output connector is an XLRM-type
with polarity as shown in the figure below.
Output terminals
PIN1 (ground) PIN2 (hot)
PIN3
(cold)
This product requires 48 V
DC phantom power.
Subminature Cardioid Condenser Microphones AT898
■ Specifications
Element
Polar pattern
Frequency response
Low Frequency Roll-off
Open circuit sensitivity
Impedance
Maximum input sound level
Dynamic range (typical)
Signal-to-noise ratio
Phantom Power Requirements
Battery Type
Battery Current / Life
Switch
Weight
Dimensions
Output connector
Cable
Included accessories
• 1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL
* Typical, A-weighted, using Audio Precision System One.
For product improvement, the product is sublect to
modification without notice.
■Polar pattern ■Frequency response
0°
330° 30°
300°
60°
270°
90°
240° 120°
210° 150°
180°
SCALE IS 5 DECIBELS PER DIVISION
LEGEND
200 Hz
1 kHz
5 kHz
8 kHz
Audio-Technica Corporation
2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan
©2017 Audio-Technica Corporation
Global Support Contact: www.at-globalsupport.com
Fixed-charge back plate, permanently polarized condenser
Cardioid
200 - 15,000 Hz
80 Hz, 12 dB/octave
Phantom : -43 dB (7.0 mV) re 1V at 1 Pa
Battery : -46 dB (5.0 mV) re 1V at 1 Pa
Phantom : 200 ohms
Battery : 250 ohms
Phantom : 131 dB SPL, 1 kHz at 1% T.H.D.
Battery : 115 dB SPL, 1 kHz at 1% T.H.D.
Phantom : 100 dB, 1 kHz at Max SPL
Battery : 84 dB, 1 kHz at Max SPL
63 dB, 1 kHz at 1 Pa
11-52V DC, 2 mA typical
1.5V AA/UM3
2.0 mA / 1200 hours typical (alkaline)
Flat, roll-off (recessed)
Microphone - 0.9 g / Power Module - 102 g
Microphone - 23.0 mm long, 5.3 mm diameter
Power Module - 145.0 mm long, 21.0 mm diameter
Integral 3-pin XLRM-type
3.0 m long (permanently attached to microphone),
2.0 mm diameter, 2-conductor, shielded cable with
TA3F output connector
AT8537 power module; AT8439 cable clip;
clothing clip base; viper clip base; magnet clip base and
plate with lanyard; three single mic holders;
two double mic holders; two windscreens; battery;
protective carrying case
20
10
0
-10
-20
-30
10 100 1k 10k
Frequency in Hertz
LEGEND
0°, 50cm
Roll-off
3-MAR--2021 Form No.ATGC-L0406-21
10 dB
100k
