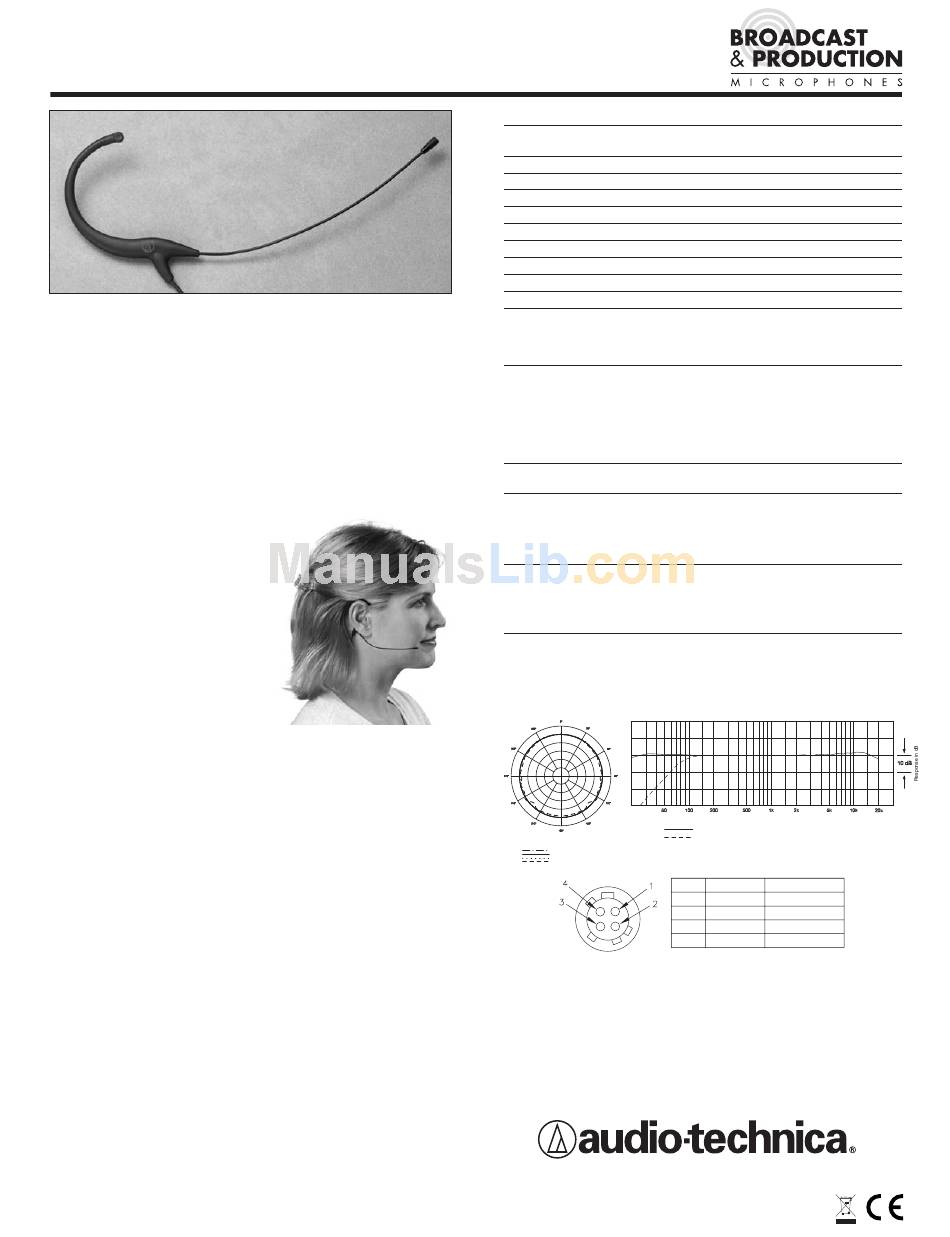

Audio Technica MICROSET AT892 Specifications

AT892 MicroSet
• Lightweight microminiature headset with ergonomic under-ear design
• Exceptional sound quality and rugged construction
• Adjustable fit for left or right ear
• Flexible performance as a wired or wireless microphone - Use with
included power module or with any Audio-Technica UniPak
transmitter
• Available in black, cocoa (-CO) and beige (-TH) models

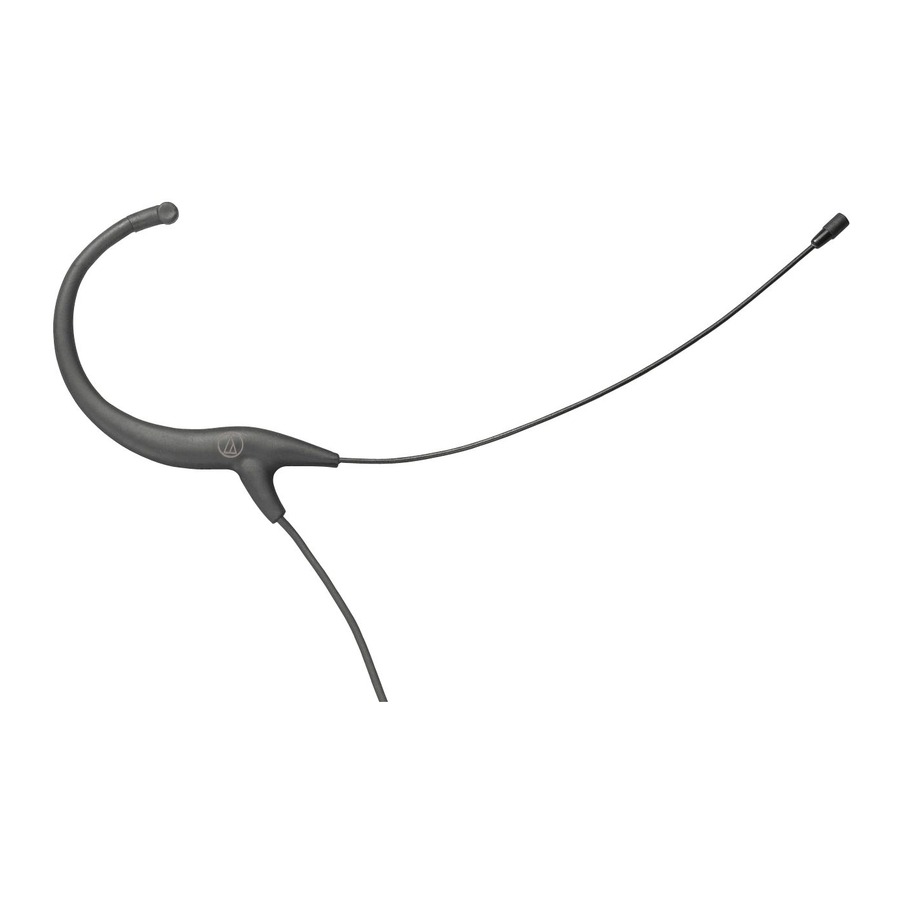

With a capsule diameter of just 2.5 mm, the AT892 MicroSet provides the
ultimate in low-profile, high-performance audio. This omnidirectional
condenser microminiature headworn mic offers an ergonomic under-ear
design: its flexible, lightweight contoured loop hooks behind the ear for an
ultra-secure, comfortable fit with or without glasses.
The AT892 MicroSet's flexible design
enables it to be worn on either the left
or right ear. Position the lightweight
contoured loop around the back of your
ear, so that the boom extends from the
bottom of your ear as shown. Bend the
loop as needed to achieve a secure,
comfortable fit, so that the MicroSet is not
dislodged by shaking your head. Remove
the MicroSet and bend a gentle curve in
the microphone's boom. Hook the
MicroSet back around your ear, and adjust
the boom as needed to follow the contour
of your face, positioning the microphone
near the corner of your mouth. MicroSet
has a large acoustical sweet spot; experiment
with placement near the corner of your
mouth for optimal performance.
A cable clip is provided for strain relief, allowing the MicroSet to remain
securely in place without the weight of the cable pulling on the headset. To
install the cable clip, slip the cable into the snap-on connector and attach the
clip to clothing, leaving enough slack on the MicroSet side of the clip to allow
for free, comfortable motion.
The donut-shaped moisture guard is provided to protect the element from
sweat and moisture. Position the moisture guard as close to the element as
possible to provide maximum protection. To remove the moisture guard, first
remove the element cover and place it out of harm's way. Gently slide the
moisture guard over the element. Replace the element cover.
The AT892 is intended for use in professional applications where remote
power is available. It requires 11V to 52V DC phantom power, which may be
provided by a mixer or console, or by a separate, in-line source such as the
Audio-Technica AT8801 single-channel or CP8506 four-channel phantom
power supplies. The cable is terminated with a locking 4-pin connector for use
with the included AT8539 power module, as well as with all Audio-Technica
UniPak ™ body-pack wireless transmitters.
Output from the power module's XLRM-type connector is low impedance
(Lo-Z) balanced. The signal appears across Pins 2 and 3; Pin 1 is ground
(shield). Output phase is "Pin 2 hot" – positive acoustic pressure produces
positive voltage at Pin 2.
Avoid leaving the microphone in the open sun or in areas where
temperatures exceed 110° F (43° C) for extended periods. Extremely high
humidity should also be avoided.
OMNIDIRECTIONAL CONDENSER
®
HEADWORN MICROPHONE
™ wireless
AT892 MICROSET ® SPECIFICATIONS
ELEMENT
POLAR PATTERN
FREQUENCY RESPONSE
LOW FREQUENCY ROLL-OFF
OPEN CIRCUIT SENSITIVITY
IMPEDANCE
MAXIMUM INPUT SOUND LEVEL
DYNAMIC RANGE (typical)
SIGNAL-TO-NOISE RATIO 1
PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical
WEIGHT
MICROPHONE, BOOM &
EARPIECE
POWER MODULE
DIMENSIONS
MICROPHONE
BOOM
POWER MODULE
OUTPUT CONNECTOR
(power module)
CABLE
ACCESSORIES FURNISHED
† Specifications derived by using AT8539 power module. In the interest of standards
development, A.T .U.S. offers full details on its test methods to other industry professionals
on request.
*1 Pascal = 10 dynes /cm 2 = 10 microbars = 94 dB SPL
1 Typical, A-weighted, using Audio Precision System One.
Specifications are subject to change without notice.
Polar Pattern
LEGEND
SCALE IS 5 DECIBELS PER DIVISION
LEGEND
200 Hz
1 kHz
5 kHz
8 kHz
Pin 1
Pin 2
Pin 3
Pin 4
Audio-Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224
Audio-Technica Limited, Old Lane, Leeds LS11 8AG England
www.audio-technica.com
P51750 ©2007 Audio-Technica U.S., Inc.
†
Fixed-charge back plate
permanently polarized condenser
Omnidirectional
20-20,000 Hz
80 Hz, 18 dB/octave
–44 dB (6.3 mV) re 1V at 1 Pa*
250 ohms
122 dB SPL, 1 kHz at 1% T.H.D.
88 dB, 1 kHz at Max SPL
60 dB, 1 kHz at 1 Pa*
2.4 g (0.08 oz)
85 g (3.0 oz)
8.1 mm (0.32") long,
2.7 mm (0.11") diameter
98.4 mm (3.87") long,
1.07 mm (0.042") boom diameter
97.6 mm (3.84") long,
18.9 mm (0.74") diameter
Integral 3-pin XLRM-type
1.4 m (55") long (permanently
attached to microphone) 1.6 mm
(0.06") diameter, 2-conductor
shielded cable with locking 4-pin
connector
AT8539 power module; two AT8157
windscreens; two AT8156 element
covers; AT8440 clothing clip;
moisture guard; belt clip;
carrying case
Frequency Response
Frequency in Hertz
12" or more on axis
Roll-off
Function Wire Color
Ground/Shield Green
Instrument Jumper to Pin 1
Mic Audio Copper Color
Bias + In Red
Printed in U.S.A.
