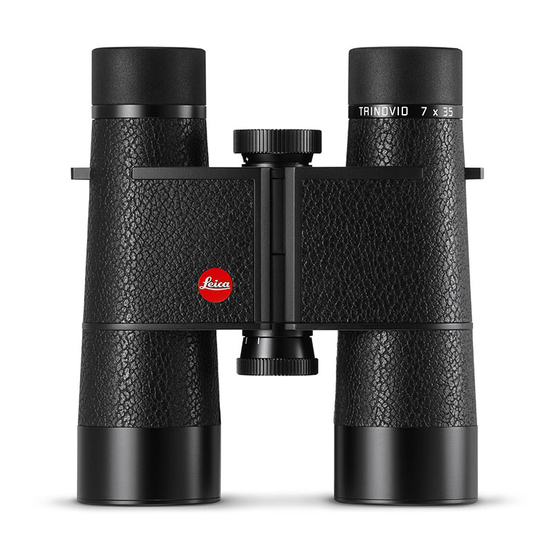

- Page 1 TRINOVID Instruction manual TRINOVID/EN/2021/08/---/2...
-
Page 2: Foreword
Your Leica Camera AG REPLACEMENT PARTS / ACCESSORIES Please read the chapters “Safety Remarks” and Contact Leica Customer Care or your specialist Leica retailer for “Important Information” before using the product for the details on the latest replacement parts / accessory range: first time. -
Page 3: Legal Information
Due to the amount of creativity that All text, images and graphics are subject to copyright and other has gone into its design, we ask for your understanding that Leica laws to protect intellectual property. They must not be copied, Camera AG must protect its intellectual property, including modified or used for any purpose including trade purposes. -
Page 4: Safety Remarks
• Never look directly at the sun or other bright sources of light • Do not attempt to take the device apart yourself. Repairs must through your Leica optics! Doing so may seriously damage your only be carried out in authorized workshops. -
Page 5: Warranty
Leica Camera AG offers a 10-year warranty for this Leica product 5. In case of a warranty claim, please send the Leica product, the in accordance with the conditions started below. The Leica... -
Page 6: Table Of Contents
ATTACHING THE CARRY STRAP ..............8 SETTING THE EYECUPS ................. 8 DIOPTER SETTINGS ..................9 SETTING THE INTEROCULAR DISTANCE ............. 9 SETTINGS AND OPERATION ............10 SETTING THE IMAGE SHARPNESS .............10 FAQ ....................11 CARE/CLEANING ................12 TECHNICAL DATA ................12 LEICA CUSTOMER CARE..............13... -
Page 7: Part Designations
PART DESIGNATIONS Strap lugs Eyecup Focusing wheel Center hinge Diopter compensation Attention Never look directly at the sun or other bright sources of light through your Leica optics! Doing so may seriously damage your eyes. -
Page 8: Preparation
PREPARATION SETTING THE EYECUPS The position of the eyecups will depend on whether you will be using your binoculars with or without eyeglasses. Contact lens ATTACHING THE CARRY STRAP wearers can make the settings just like anyone not wearing any eyeglasses. -
Page 9: Diopter Settings
DIOPTER SETTINGS SETTING THE INTEROCULAR DISTANCE A diopter compensation function for up to ±3 diopter is available to allow wearers of glasses the use of this product without eye glasses. 1/8000 12500 1/8000 12500 1/8000 12500 999-9000 999-9000 999-9000 ▸ Close your right eye or cover the right-hand lens ▸... -
Page 10: Settings And Operation
SETTINGS AND OPERATION SETTING THE IMAGE SHARPNESS ▸ Look through the binoculars ▸ Aim at the target object ▸ Adjust the focusing wheel until you can see the target object with optimum sharpness... -
Page 11: Faq
Problem possible cause to be verified Troubleshooting suggestions The binoculars are not adjusted correctly to your personal Move the two halves of the binoculars via the central joint until interocular distance. you have corrected the setting. Try adjusting the position of your head or eyes in conjunction with Your pupils are not in line with the exit pupils of the binoculars. -
Page 12: Care/Cleaning
TECHNICAL DATA • Your Leica product requires no special care. Please visit the Leica Camera AG homepage for more information about the technical details of your Leica binoculars: • Coarse dirt particles like sand can be removed with a soft brush or simply blown off. -
Page 13: Leica Customer Care
LEICA CUSTOMER CARE Please contact the Customer Care department of Leica Camera AG for the maintenance of your Leica equipment and for help and advice regarding Leica products and how to order them. You can also contact the Customer Care department or the repair service provided by your regional Leica subsidiary for repairs or warranty claims.
