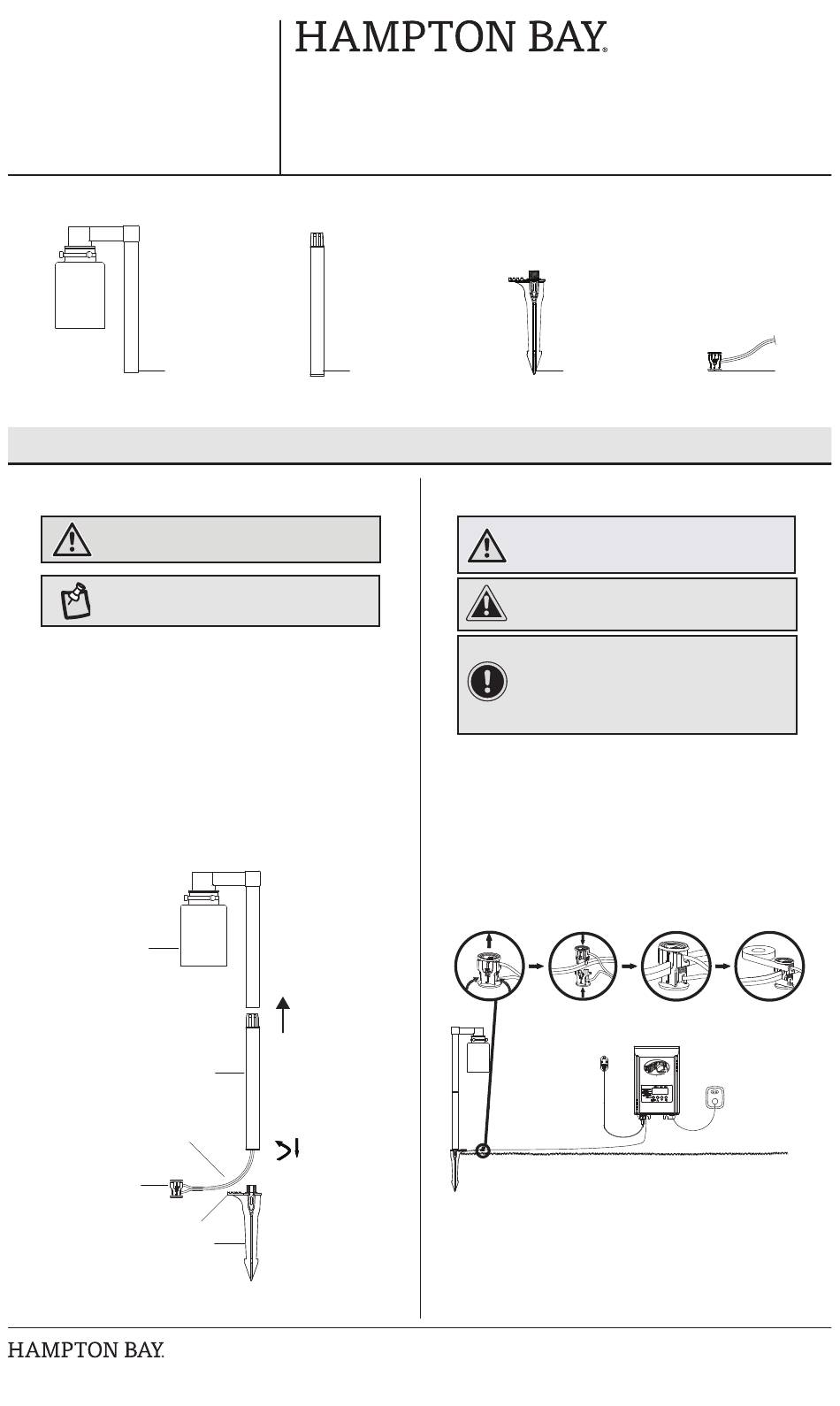

HAMPTON BAY 62919 Use And Care Manual

PACKAGE CONTENTS
A
A - Fixture head x 1
Assembly and Installation
1
Attaching and installing the light
WARNING: Risk of electric shock do not install the light
within 10 ft. (3.05 m) of a pool, spa or fountain.
NOTE: Do not use a hammer. If the ground is hard, use water
to soften it or a trowel to loosen the soil.
□ Attach the fixture head (A) to the post (B) by inserting the upper end of the
post (B) into the fixture head (A).
□ Insert the fixture wire (2) into the groove located on the top of the ground
stake (C).
□ Attach the post (B) to the stake (C) by placing the post (B) onto the top of
the stake (C) and twisting clockwise.
□ Prepare a hole in the installation location. Use a screwdriver to prepare
the installation hole to ensure that the hole is not larger than the stake
(C).
□ Install the fixture in the ground by pushing on the foot step (1) on the
stake (C). Do not push the fixture head (A).
A
D
Use and Care Guide
LED Low Voltage Path Light
B - Post x 1
B
2
1
C
B
C - Stake with foot step x 1
2
Connecting the wires
□ Detach and place the wire connector (D) on opposite sides of the low
voltage cable (not included) where the fixture will be located.
□ Align and fit the main low voltage cable vertically in the slot of the wire
connector as shown.
□ Press the wire connector (D) together until it is fully seated and locked
around the cable. Pre-set prongs will pierce the cable insulation and
establish contact. Turn on the power unit. If the light fixture does not
turn on, repeat operations 2 and 3.
□ Once the clip-on connector is in place, we recommend wrapping it in
electrical tape (not included) for additional protection.
E
Please contact 1-855-HD-HAMPTON for further assistance.
Item #1005 697 252
C
D - Connector with 12 in. wire length
(attached to fixture) x 1
WARNING: The connector contacts (D) have sharp edges
for piercing the main low voltage cable. To avoid injury,
do not touch the metal contacts.
CAUTION: The wire from the low voltage power unit shall
be 12-16 AWG type underground Low Energy Circuit
Cable.
IMPORTANT: Protect the wiring by routing it in close
proximity to the light or next to a building structure such as
a house or deck.
Do not bury the wiring by more than 6 in. (15.24 cm) in
order to connect to the main secondary wire.
Do not submerge fixtures in water.
Model #62919
