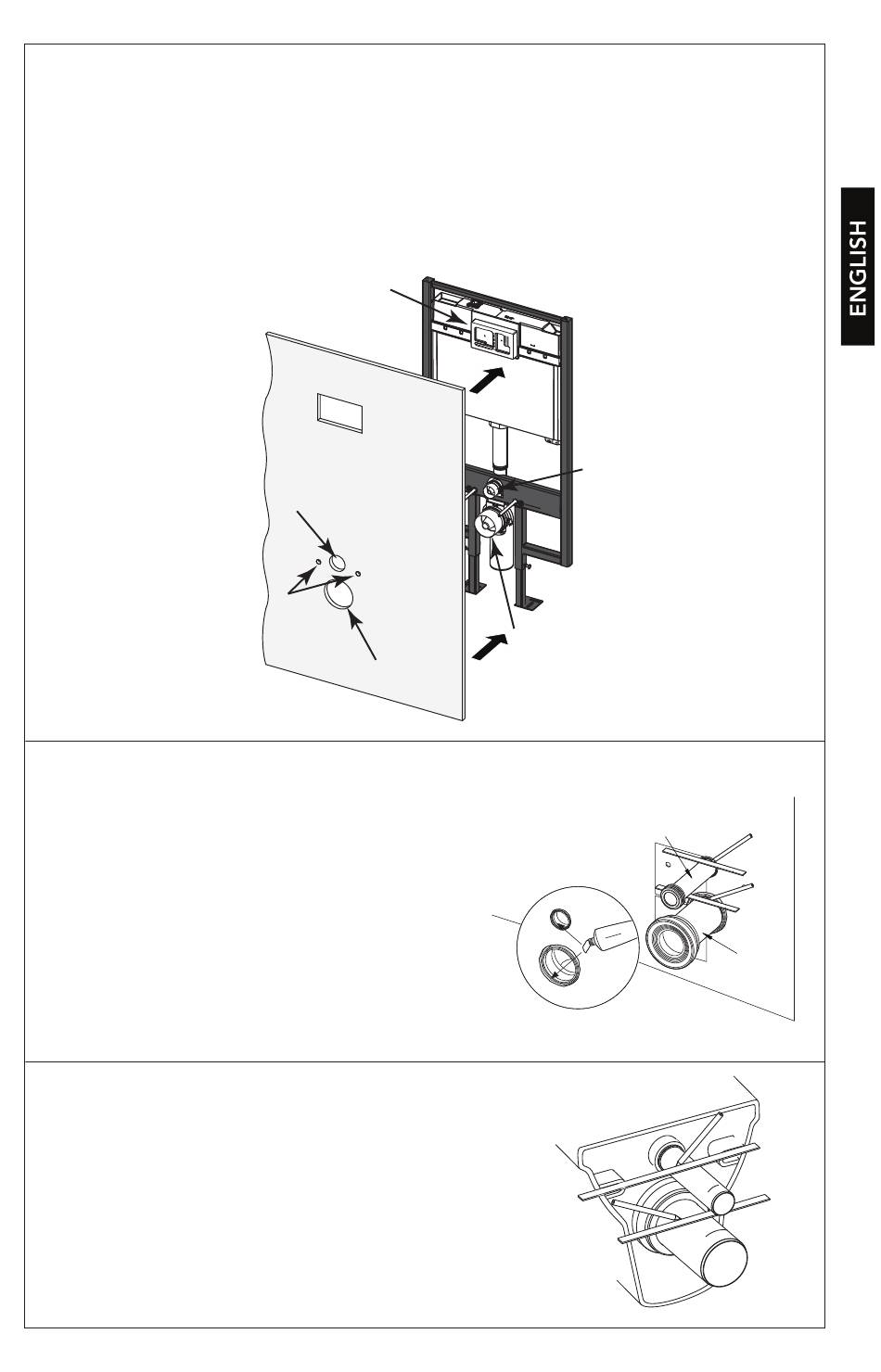

Toto WT151M Installation And Owner's Manual page 5

Instructions are recommended for 1/2" 913mm) drywall installation. Use the protruding
parts on the carrier to locate the cuts on the wall.
Cut a 4-1/4" (108mm) diameter hole for the outlet drain.
Cut a 2-3/8" (60mm) diameter hole for the water inlet.
Cut two 1/2" (13mm) diameter holes for the mounting screw studs.
Cut a 7-3/8" (187mm) x 4-1/2" (114mm) hole for the push plate.
T o i l e
1) Apply a small amount of lubricant (not
included) in the inlet and drain outlet.
Insert the inlet pipe into the tank drain
outlet until it stops.
Place the edge of a ruler against the
finished wall and on top of the inlet pipe.
Mark the location as shown and remove
the inlet pipe.
Repeat this process with the flange pipe.
2) Insert the inlet pipe end with the gasket
into the back of the toilet bowl.
Place the edge of a ruler against the
whole width of the back of the toilet and
on top of the inlet pipe. Mark the location
as shown and remove the inlet pipe.
Repeat this process with the flange pipe.
Cutting Out the Wall Location
Push Plate
Foam Rough In
P u s h
P l a t e
H o l e
D r y w
a l l
( m i n
. 1 / 2
I n l e t
D r a i n
H o l e
t M o
u n t i n
g
H o l e
s
O u t l
e t D
r a i n
Installing the Toilet on the Carrier
" t h i
c k )
Outlet Drain
Rough In
H o l e
5
Inlet Drain
Rough In
Inlet Pipe
Flange
Pipe
