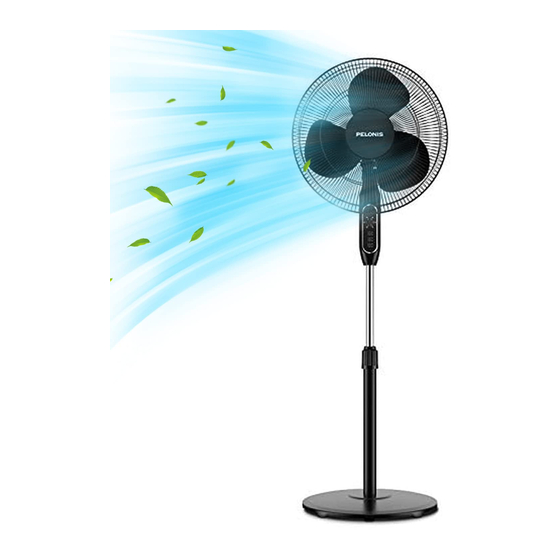

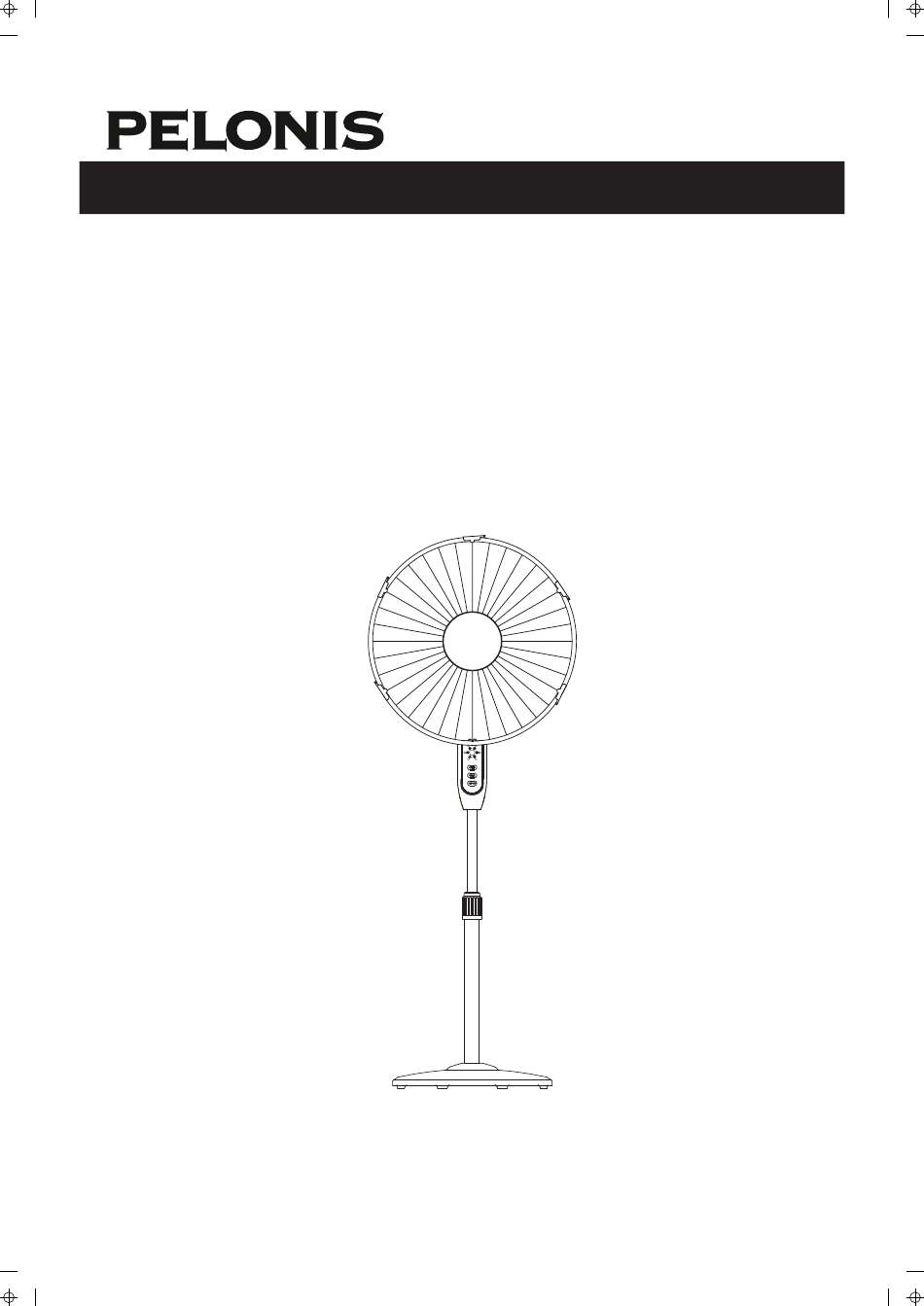

- Page 1 OWNER’S MANUAL Stand Fan Model: PFS40A4BBB PFS40A4BWW READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Rules For Safe Operation
CAUTION Read Rules for Safe Operation and Instructions Carefully. WARNING This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If plug does not fit fully in the outlet, reverse the plug. -
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS Name of components Motor shaft Motor Install by aligning ① Rear grill Tighten knob Base Installation Align the column with the Pole groove on the base and fix them together using a right-angle bolt. Base Considerate Hint: Remove ①②parts from the ②... - Page 4 Front and Rear Guard Installation 1. Align Screw Holes on the outer ring 2. Press down all the Buckles to fasten the of both the Front and Rear Guards, Front Guard with the Rear Guard. At the with the Positioning Clip aligned as Screw Holes, tighten the separated screw illustrated.
- Page 5 INSTRUCTIONS FOR USE Instructions for key of remote controller “SPEED” key “ON/OFF” key “TIMER”key Battery Considerate Hint: Effective Range of Remote Control: within 5 m distance and 30-degree deflection in front of Product. Instructions for display of body Speed display Timer display...
- Page 6 INSTRUCTIONS FOR USE Instructions for operation of body Horizontal Swing Pull-up for static Push-down to swing Swing Pull-knob Tilt Adjustment Body key Manual SPEED TIMER ON/OFF Height Adjustment Turn counterclockwise and loosen for performing height adjustment. Height Adjustment Key...
-
Page 7: User Servicing Instructions
USER SERVICING INSTRUCTIONS a) Grasp plug and remove from the receptacle or other outlet device. Do not unplug by pulling on cord. b) Open fuse cover. Slide open fuse access cover on top of attachment plug towards blades. c) Remove fuse carefully. Insert the tip of your tool into fuse slot (close with the terminal), then prize the fuse gradually and slowly, but not overexert. -
Page 8: Service And Support
In the event of a warranty claim or if service is required for this heater, please contact us at the following: Tel: 1-866-646-4332 Email us at: customersupport@pelonis.com For questions or comments, please write to: Midea America Corporation 5 Sylvan Way, Parisippany, NJ 07054...
