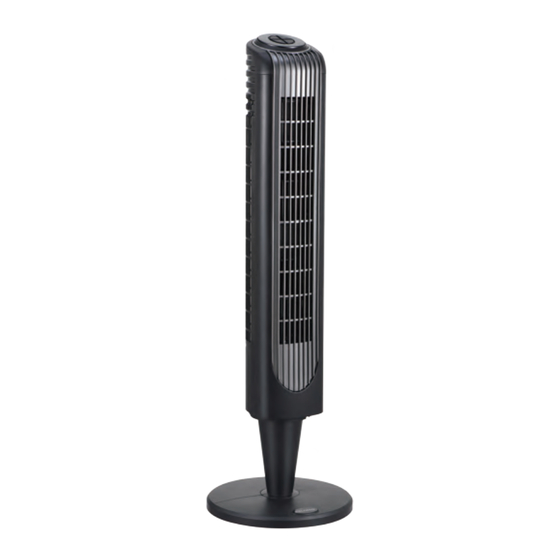

TOWER FAN
PFZ36R0APK
Warning Notice: Before using
this product, please read this
manual carefully and keep it for
future reference. For additional
support, please call customer
service at 1-866-646-4332.
The design and specifications are
subject to change without prior
notice for product improvement.
Consult with your dealer or
the manufacturer for details.
OWNER'S MANUAL
EN
PFZ36R0APK
pelonis.com
Advertisement
Table of Contents
Related Manuals for Pelonis PFZ36R0APK
Summary of Contents for Pelonis PFZ36R0APK
- Page 1 OWNER’S MANUAL TOWER FAN PFZ36R0APK Warning Notice: Before using this product, please read this manual carefully and keep it for future reference. For additional support, please call customer service at 1-866-646-4332. The design and specifications are subject to change without prior notice for product improvement.
-
Page 2: Table Of Contents
OWNER’S MANUAL SAFETY PRECAUTIONS ..................... 1 IMPORTANT INSTRUCTIONS ..................2 PART NAMES ........................ 5 SPECIFICATIONS ......................5 HOW TO ASSEMBLE ....................6 ..................7 OPERATING INSTRUCTIONS REMOTE CONTROL ..................... 8 CLEANING MAINTENANCE ..................9 TROUBLESHOOTING ....................9 USER SERVICING INSTRUCTIONS ................. 10 Read This Manual Inside you’ll find many helpful hints on how to use and maintain your appliance properly. -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS CAUTION 1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 4 IMPORTANT INSTRUCTIONS (cont.) WARNING 1. If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. 2.To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
- Page 5 IMPORTANT INSTRUCTIONS (cont.) WARNING a) “Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.” b) “Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances.
-
Page 6: Part Names
All the pictures in this manual are for explanation purposes only. Any discrepancy between the real object and the illustration in the drawing shall be subject to the real model. SPECIFICATIONS MODEL Voltage Frequency Rated Current PFZ36R0APK 120V~ 60Hz 0.4A Page 5... -
Page 7: How To Assemble
HOW TO ASSEMBLE 1. Pass the power cord through the channel in both parts of the pole, and securely connect the two parts to form a complete pole. 2. Align the larger end of the pole to the bottom of the fan body. Attach the fan body to the pole by tightening four M4×8 cross-head screws with a screwdriver. -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS 1. Place the fan on a stable, even surface. 2.Plug the power cord into an appropriate power point and switch on power to the outlet. 3.To operate the fan, use the four push buttons on top of the fan, or the equivalen buttons on the remote control. -
Page 9: Remote Control
REMOTE CONTROL • The remote control can be used normally within 16 feet in the front of the product and within an angle of 30°. • The battery contains heavy metals, acid and alkali substances, which threaten human health; waste batteries should be sorted and recycled. Mute ON/OFF Oscillation... -
Page 10: Cleaning Maintenance
CLEANING MAINTENANCE • Be sure to unplug from the electrical supply source before cleaning. • Please use a damp cloth or sponge for general cleaning. • To remove persistent dirt, use a cloth dampened with warm soapy water and thoroughly wipe to remove soap film with a damp cloth. Do not use any solvents (such as thinners), as these may damage the plastic casing. -
Page 11: User Servicing Instructions
USER SERVICING INSTRUCTIONS a)Grasp plug and remove from the receptacle or other outlet device. Do not unplug by pulling on cord. b)Open fuse cover. Slide open fuse access cover on top of attachment plug towards blades.(Fig. c)Remove fuse carefully. Insert the tip of your tool into fuse slot(close with the terminal), then pry the fuse gradually and slowly, but do not overexert. - Page 12 SERVICE AND SUPPORT In the event of a warranty claim, questions, comments or if service is required for this product, please contact us at the following: Toll Free: 1-866-646-4332 Email us at: customerservice@supportuscenter.com Midea America Corp. Parsippany, NJ 07054 For your records, staple your sales receipt to this manual and record the following: DATE OF PURCHASE: PLACE OF PURCHASE: (STAPLE SALES RECEIPT HERE)
- Page 13 ONE (1) YEAR LIMITED WARRANTY • Please read all instructions before attempting to use this product. Midea America Corporation warrants as limited herein to the original purchaser of retail thateach new Fan, shall be free of defects in material and workmanship for aperiod of one (1) year from the date of original purchase.
