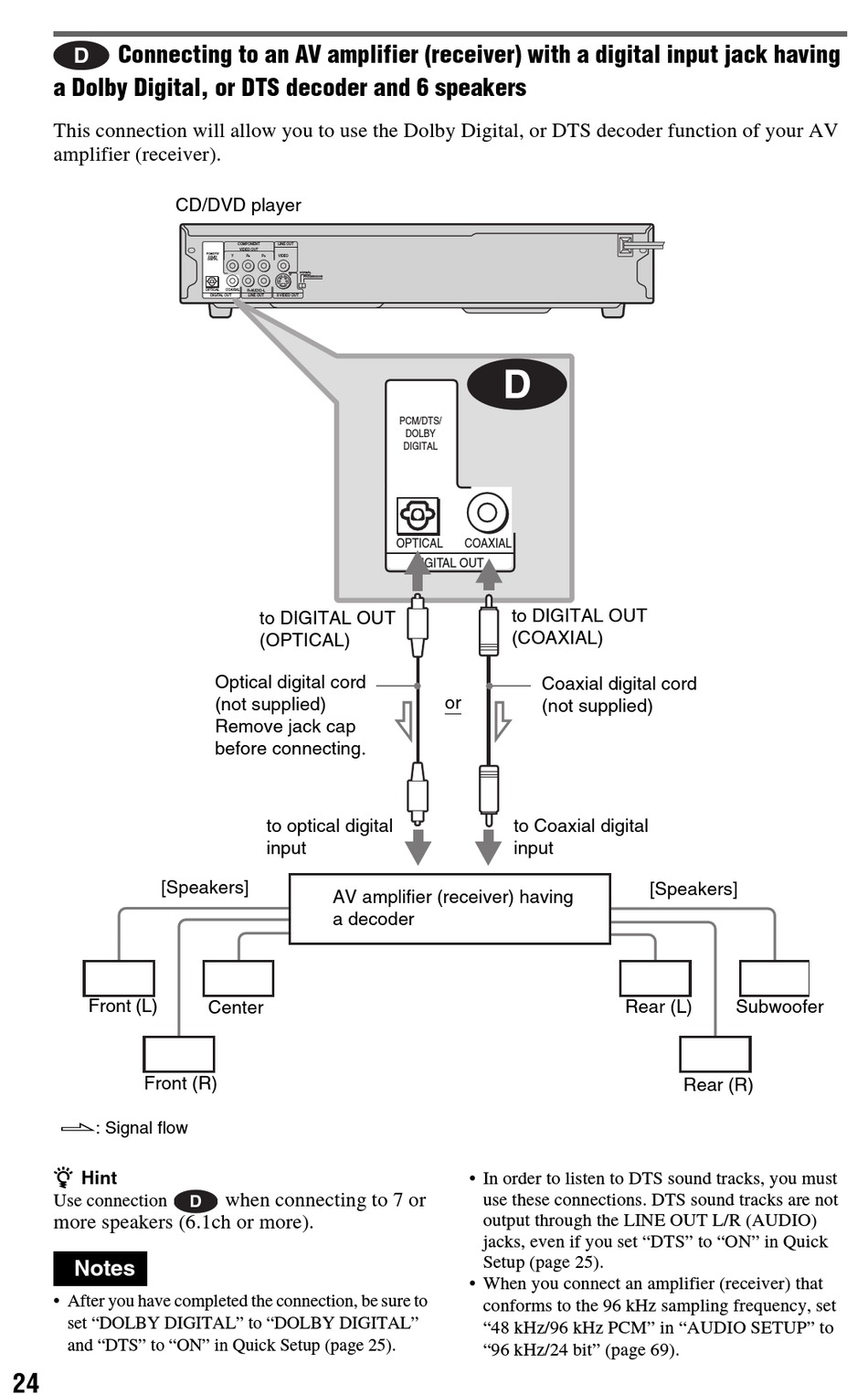

Connecting to an AV amplifier (receiver) with a digital input jack having
D
a Dolby Digital, or DTS decoder and 6 speakers
This connection will allow you to use the Dolby Digital, or DTS decoder function of your AV
amplifier (receiver).
CD/DVD player
[Speakers]
Front (L)
Front (R)
l: Signal flow
z Hint
Use connection
more speakers (6.1ch or more).
Notes
• After you have completed the connection, be sure to
set "DOLBY DIGITAL" to "DOLBY DIGITAL"
and "DTS" to "ON" in Quick Setup (page 25).
24
COMPONENT LINE OUT
VIDEO OUT
PCM/DTS/
Y P P VIDEO
DOLBY B R
DIGITAL
NORMAL
PROGRESSIVE
OPTICAL COAXIAL
R-AUDIO-L
DIGITAL OUT LINE OUT S VIDEO OUT
to DIGITAL OUT
(OPTICAL)
Optical digital cord
(not supplied)
Remove jack cap
before connecting.
to optical digital
input
AV amplifier (receiver) having
a decoder
Center
when connecting to 7 or
D
PCM/DTS/
DOLBY
DIGITAL
OPTICAL COAXIAL
DIGITAL OUT
to DIGITAL OUT
(COAXIAL)
Coaxial digital cord
or
(not supplied)
to Coaxial digital
input
• In order to listen to DTS sound tracks, you must
use these connections. DTS sound tracks are not
output through the LINE OUT L/R (AUDIO)
jacks, even if you set "DTS" to "ON" in Quick
Setup (page 25).
• When you connect an amplifier (receiver) that
conforms to the 96 kHz sampling frequency, set
"48 kHz/96 kHz PCM" in "AUDIO SETUP" to
"96 kHz/24 bit" (page 69).
[Speakers]
Rear (L) Subwoofer
Rear (R)
