2022 Body
Application Guide

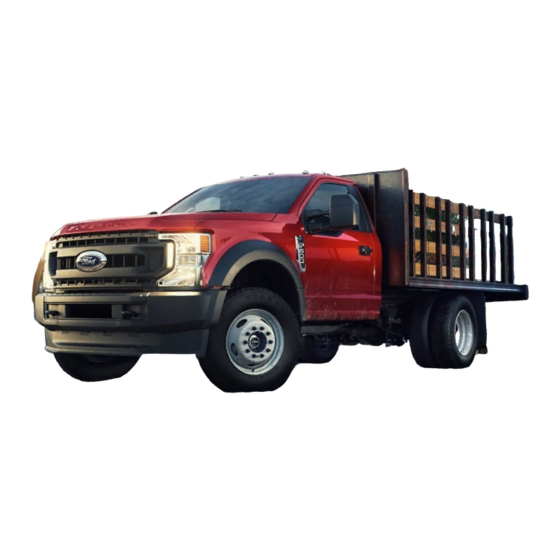

Computer-generated images with available features and aftermarket equipment shown throughout.
Your Guide to Getting the
Commercial Vehicle to Match your
Length and Load Carrying Needs.
FORDUPFITS.COM

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2022 Body and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ford 2022 Body

Summary of Contents for Ford 2022 Body

  • Page 1 2022 Body Application Guide Computer-generated images with available features and aftermarket equipment shown throughout. Your Guide to Getting the Commercial Vehicle to Match your Length and Load Carrying Needs. FORDUPFITS.COM...
  • Page 2 2022 Body Application Guide Introduction Catering This guide is designed to provide a quick and easy method for matching the customer’s truck length and load carrying requirements with the appropriate Dump F-Series Super Duty , Medium Duty, E-Series, Transit or Transit Connect vehicle.
  • Page 3 Dimensions (Exterior Dimensions/Inches) F-250–F-600 Super Duty ® 2022 F-250, F-350 Super Duty with 2022 F-350 Super Duty Chassis Cab 2022 F-450 – F-600 Super Duty Chassis Cab † PICKUP Box Delete Option (66D) F-250, F-350 F-350 F-350 F-350 Pickup Box Delete 8' Box Regular Cab Regular Cab...
  • Page 4 Dimensions (Exterior Dimensions/Inches) continued 2022 Transit T-250 Chassis Cab and Cutaway T-350 Chassis Cab and Cutaway Cutaway and Chassis Cab Cutaway and Chassis Cab 82.6 100.3 82.6 100.3 122.6 45.1 45.1 45.1 45.1 45.1 95.7 95.7 95.7 95.7 95.7 2021 model shown. 2022 E-Series 2022 F-59 E-Series Cutaway...
  • Page 5 DIMENSIONS (Exterior Dimensions/Inches) continued 2022 F-650 Medium Duty Pro Loader (Kick-Up Frame) – Gas And Diesel Regular Cab SuperCab Crew Cab 2022 F-650 Medium Duty (Straight Frame) – Gas And Diesel Regular Cab Req. 538 frame SuperCab Crew Cab (1) See current Body Builder’s Layout Book for exact dimensions. Note: Use CVT to determine performance characteristics.
  • Page 6 Dimensions (Exterior Dimensions/Inches) continued 2022 F-750 Medium Duty – Gas and Diesel Regular Cab SuperCab Crew Cab (1) See current Body Builder’s Layout Book for exact dimensions. (2) Requires a 536, 538, or 539 frame Note: Use CVT to determine performance characteristics. Keep in mind that medium wheelbase stock units may be shortened to desired wheelbase as part of the upfit process.

  • Page 7: Maximum Payload

    Weight Information Base Curb Weight is the weight of the vehicle including a full tank of fuel and all standard equipment. It does not include passengers, cargo or any optional equipment. Finished Vehicle Weight (Tare Weight) is the weight of the vehicle and any installed options — including any OEM options and any aftermarket body and equipment permanently attached to the vehicle.
  • Page 8 Approximate Body Weights GVWR Weight Guideline 8 ft. Dump (2/3 yd.) 1,660 lbs. 8 ft. Stake 1,815 lbs. 10 ft. Van 1,645 lbs. 12 ft. Walk-in 1,980 lbs. Vehicle Base Curb Weight 9 ft. Dump (2/3 yd.) 1,790 lbs. 9 ft. Stake 1,925 lbs.
  • Page 9 Percent of Body And Payload Weight On Front Axle By Wheelbase/CA (GROUPED BY CA) Vehicle WB/C A 142/56 164/56 176/56 145/60 168/60 180/60 138/80 138/83 138/83 158/84 169/84 179/84 192/84 194/84 204/84 156/100 156/100 158/100 † † † † 21.0 18.8 14.5 16.7...
  • Page 10 Turning Diameters F-350/F-450/F-550/F-600 Super Duty Chassis Cab ® Turning Diameter Specifications Turning Diameter (Ft.) Cab Style / Series / Wheelbase (In.) Drive Body Style Curb-to-Curb Wall-to-Wall 145 SRW 50.1 52.1 F-350 145 DRW 50.1 52.1 169 DRW 57.5 59.5 Regular Cab 145 DRW 42.5 44.4...
  • Page 11 Turning Diameters F-650/F-750 Medium Duty Chassis Cab Transit 8.5K Axle 10K/12K/14K Axle Turning Diameter (ft.) Model/Series Turning Diameter (ft.) Turning Diameter (ft.) Curb-to-Curb Wall-to-Wall Style Curb-to-Curb Wall-to-Wall Curb-to-Curb Wall-to-Wall T-250/350 DRW 45.6 47.8 22 ft. 3 in. 23 ft. 10 in. 21 ft.
  • Page 12 F-250 F-350 17” Wheels & Tires 18” Wheels & Tires Super Duty Super Duty ® Pickup Pickup (Box Delete 66D) (Box Delete 66D) (F3A) 142/56 10,100 4,160 10,500 4,500 SRW(G) (F2A) 142/56 10,000* 4,260 SRW(G) (F3A) 142/56 10,600 3,930 11,100 4,380 SRW(D) Regular Cab...
  • Page 13 F-350 Super Duty ® Chassis Cab 4x2 SRW(G) (F3E) 145/60 10,000 4,520* 10,500 4,870 4x2 SRW(D) (F3E) 145/60 11,100 4,730 4x4 SRW(G) (F3F) 145/60 10,000 4,110* 10,900 4,860 4x4 SRW(D) (F3F) 145/60 11,500 4,690 4x2 DRW(G) (F3G) 145/60 14,000 7,940 Regular Cab 4x2 DRW(D) (F3G)
  • Page 14 F-450 Super Duty ® Chassis Cab 4x2 DRW(G) (F4G) 145/60 16,500 9,850 15,000 8,350 4x2 DRW(D) (F4G) 145/60 16,500 9,110 15,000 7,610 4x4 DRW(G) (F4H) 145/60 16,500 9,540 15,000 8,040 4x4 DRW(D) (F4H) 145/60 16,500 8,790 15,000 7,290 4x2 DRW(G) (F4G) 169/84 16,500...
  • Page 15 F-550 Super Duty ® Chassis Cab 4x2 DRW(G) (F5G) 145/60 18,000 11,350 19,000 12,310 4x2 DRW(D) (F5G) 145/60 18,000 10,610 19,500 12,070 4x4 DRW(G) (F5H) 145/60 18,000 11,040 19,000 12,000 4x4 DRW(D) (F5H) 145/60 18,000 10,290 19,500 11,750 4x2 DRW(G) (F5G) 169/84 18,000...
  • Page 16 F-600 Super Duty ® Chassis Cab 4x2 DRW(G) (F6K) 145/60 22,000 15,090 4x2 DRW(D) (F6K) 145/60 22,000 14,340 4x4 DRW(G) (F6L) 145/60 22,000 14,780 Regular Cab 4x4 DRW(D) (F6L) 145/60 22,000 14,030 4x2 DRW(G) (F6K) 169/84 22,000 15,020 4x2 DRW(D) (F6K) 169/84 22,000...
  • Page 17 F-650 Medium Duty Pro Loader (Kick-Up Frame) Chassis Cab Diesel and Gas 22,000 12,593 13,252 158/84 26,000 16,593 17,252 Regular Cab 22,000 12,489 13,148 182/108 26,000 16,489 17,148 22,000 12,955 13,114 194/120 26,000 16,455 17,114 4x2 DRW (F6E DIESEL) 22,000 12,374 13,031 4x2 DRW (F6B GAS)
  • Page 18 F-650 Medium Duty (Straight Frame) Chassis Cab Diesel and Gas 26,000 15,722 16,382 158/84 29,000 18,722 19,382 26,000 15,600 16,260 176/102 29,000 18,600 19,260 Regular Cab 26,000 15,582 16,242 182/108 29,000 18,582 19,242 26,000 15,532 16,192 194/120 29,000 18,532 19,192 4x2 DRW (F6D DIESEL) 4x2 DRW (F6A GAS) 26,000...
  • Page 19 F-650 Medium Duty (Straight Frame) Chassis Cab Diesel and Gas 26,000 15,442 16,102 179/84 29,000 18,442 19,102 26,000 15,335 15,995 197/102 29,000 18,335 18,995 SuperCab 26,000 15,322 15,982 203/108 29,000 18,332 18,982 26,000 15,269 15,929 215/120 29,000 18,269 18,894 4x2 DRW (X6D DIESEL) 4x2 DRW (X6A GAS) 26,000 15,234...
  • Page 20 F-650 Medium Duty (Straight Frame) Chassis Cab Diesel and Gas 26,000 15,300 15,960 182/72 29,000 18,300 18,960 26,000 15,233 15,893 194/84 29,000 18,233 18,893 Crew Cab 26,000 15,133 15,793 212/102 29,000 18,133 18,793 26,000 15,100 15,760 218/108 29,000 18,100 18,760 4x2 DRW (W6D DIESEL) 4x2 DRW (W6A GAS) 26,000...
  • Page 21 F-750 Medium Duty Chassis Cab Diesel and Gas 31,000 20,592 31,000 21,252 158/84 37,000 26,592 33,000 23,252 31,000 20,449 31,000 21,109 176/102 37,000 26,449 33,000 23,109 Regular Cab 31,000 20,428 31,000 21,088 182/108 37,000 26,428 33,000 23,088 31,000 26,428 31,000 21,029 194/120 37,000...
  • Page 22 F-750 Medium Duty Chassis Cab Diesel and Gas 31,000 20,300 31,000 20,960 179/84 37,000 26,300 33,000 22,960 31,000 201,173 31,000 20,833 197/102 37,000 26,173 33,000 22,833 SuperCab 31,000 20,156 31,000 20,816 203/108 37,000 26,156 33,000 22,816 31,000 20,094 31,000 20,754 215/120 37,000 26,094...
  • Page 23 F-750 Medium Duty Chassis Cab Diesel and Gas 31,000 20,157 31,000 20,817 182/72 37,000 26,157 33,000 22,817 31,000 20,083 31,000 20,743 194/84 37,000 26,083 33,000 22,743 Crew Cab 31,000 19,962 31,000 20,622 212/102 37,000 25,962 33,000 22,622 31,000 19,926 31,000 20,586 218/108 37,000...
  • Page 24 E-350 Cutaway Body SRW/DRW Engine Code 4X2 SRW 7.3L Eco (E3F) 138/80 10,050 5,100 4X2 SRW 7.3L Prem (E3F) 138/80 10,050 5,100 4X2 SRW 7.3L Eco (E3F) 158/100 10,050 5,030 4X2 SRW 7.3L Prem (E3F) 158/100 10,050 5,030 4X2 DRW 7.3L Eco (E3F) 138/80...
  • Page 25 E-450 Cutaway Body Engine Code 4X2 DRW 7.3L Eco (E4F) 158/100 14,000 8,480 4X2 DRW 7.3L Prem (E4F) 158/100 14,200 8,680 4X2 DRW 7.3L Prem (E4F) 158/100 14,500 8,980 4X2 DRW 7.3L Eco (E4F) 176/118 14,000 8,480 4X2 DRW 7.3L Prem (E4F) 176/118 14,200...
  • Page 26 E-450 Stripped Chassis Body Engine Code 4X2 DRW 7.3L Eco (E4K) 158/252 14,000 9,190 4X2 DRW 7.3L Prem (E4K) 158/252 14,500 9,690 4X2 DRW 7.3LEco (E4K) 176/270* 14,000 9,140 4X2 DRW 7.3L Prem (E4K) 176/270* 14,500 9,640 F-59 Commercial Stripped Chassis 158"...
  • Page 27 **Battery Electric Chassis Cab vehicles with a Platform or Stake style Second Unit Body may exhibit Low Frequency Ride Comfort Characteristics that does not meet customer expectations. When upfitting a vehicle with either of these Second Unit Bodies, Ford Motor...
  • Page 28 Body Code Chart of Commercial Truck Body Types Transit Connect USA/CAN Canada Only 2022 Body Type XL Cargo Van Long Wheelbase, Cargo Doors, Optional Fixed Second-Row/ XL Van Long Wheelbase, Single Rear-Door Glass Sliding Door, 2nd Row Left-Hand XL Cargo Van Long Wheelbase, Rear Liftgate w/Fixed Glass, Optional Side Driver Cargo Sliding Door Fixed Second-Row Glass Delete w/o Second Row Glass...
  • Page 29 Body Code Chart of Commercial Truck Body Types Preproduction computer-generated image shown. Preproduction computer-generated image shown. Available late 2021. E-Transit shown. Available late 2021. E-Transit shown. Transit Cargo Van 2022 Body Type T-150 Low Roof Cargo Van w/ Reg. 130'' WB, SRW, RWD, 8,670 lb. GVWR T-250 High Roof Cargo Van w/ Extended 148'' WB, SRW, AWD, 9,070 lb.
  • Page 30 Body Code Chart of Commercial Truck Body Types 2021 model shown. 2021 model shown. Transit Crew Van 2022 Body Type T-150 Low Roof Crew Van w/ Reg. 130'' WB, SRW, RWD, 8,670 lb. GVWR T-250 High Roof Crew Van w/ Long 148'' WB, SRW, RWD, 9,070 lb. GVWR T-150 Low Roof Crew Van w/ Reg.
  • Page 31 Body Code Chart of Commercial Truck Body Types 2021 model shown. 2021 model shown. 2021 model shown. Transit Passenger Van Transit Chassis Cab 2022 Body Type 2022 Body Type T-250 Low Roof Chassis Cab w/ Reg. 138'' WB, SRW, RWD, T-350HD Low Roof Chassis Cab w/ Reg.
  • Page 32 Body Code Chart of Commercial Truck Body Types 2021 model shown. 2021 model shown. 2021 model shown. Transit Cutaway 2022 Body Type T-250 Low Roof Cutaway w/ Reg. 138'' WB, SRW, RWD, 9,070 lb. GVWR T-350HD Low Roof Cutaway w/ Reg. 138'' WB, DRW, RWD, 11,000 lb. GVWR T-250 Low Roof Cutaway w/ Reg.
  • Page 33 Body Code Chart of Commercial Truck Body Types F-650/F-750 Chassis Cabs 2022 Body Type F6D/F6A F-650 Reg. Cab-Straight Frame - Diesel/Gas X6D/X6A F-650 SuperCab-Straight Frame - Diesel/Gas W6D/W6A F-650 Crew Cab-Straight Frame - Diesel/Gas F6E/F6B F-650 Reg. Cab-Kick-up Frame (ProLoader) - Diesel/Gas X6E/X6B F-650 SuperCab-Kick-up Frame (ProLoader) - Diesel/Gas W6E/W6B...
  • Page 34 Body Code Chart of Commercial Truck Body Types F-250–F-450 Pickup Trucks 2022 Body Type F-250 Reg. Cab SRW 4x2 F-450 Reg. Cab DRW 4X4 F-250 Reg. Cab SRW 4x4 F-350 SuperCab SRW 4x2 F-250 SuperCab SRW 4x2 F-350 SuperCab SRW 4x4 F-250 SuperCab SRW 4x4 F-350 SuperCab DRW 4x2 F-250 Crew Cab SRW 4x2 F-350 SuperCab DRW 4x4...
  • Page 35 Ford reserves the right to change specifications, pricing and equipment at any time without incurring obligations. Your Ford dealer is the best source of the most up-to-date information on Ford vehicles. Keep in mind that medium wheelbase stock units may be shortened to desired wheelbase as part of the upfit process. Call the TRKLINE FORDUPFITS.COM...
  • Page 36 Upfitter Directory Ford Commercial Connection Upfit Assistance Connection is your program to help you upfit your vehicle with Ford • Enroll your business to save you time Accessories that get the job done. and money at the dealership...
  • Page 37 FORDUPFITS.COM 2022-BAG August 2021...
