Pre-Operation Check; Engine Oil - DeWalt DG4300 Instruction Manual

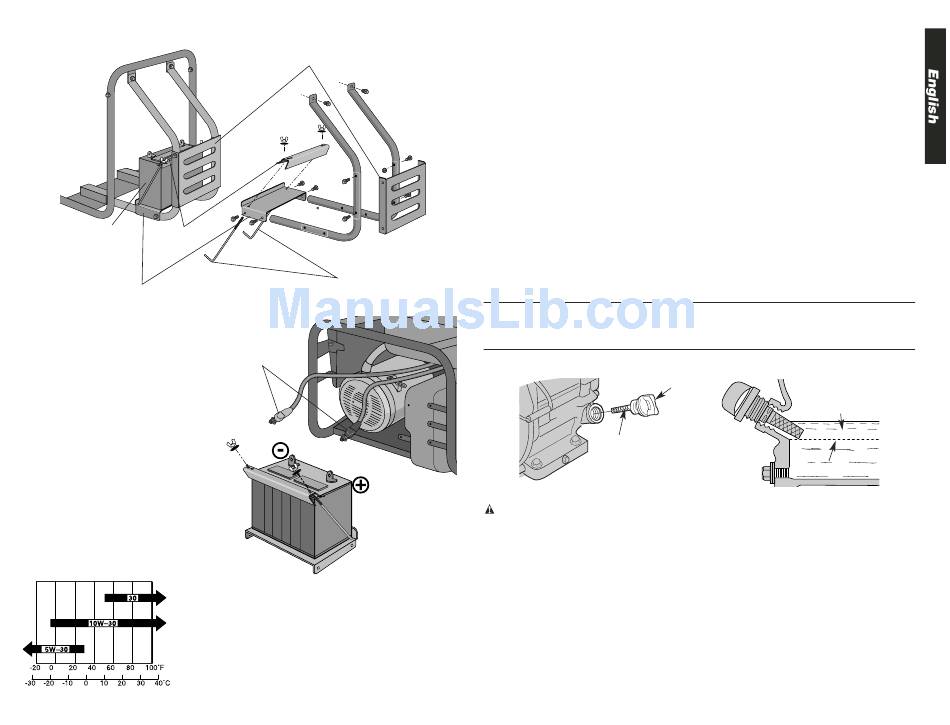

FIGURE 7: BATTERY FRAME ASSEMBLY
BATTERY
BRACKET
BATTERY TRAY
FIGURE 8: BATTERY ALIGNMENT
NOTE: Use a battery rated at 12V
— 18-35AH or more. Battery
dimensions can be no greater
than 8" x 5-1/4" x 7" (L x W x H).
FIGURE 9: ENGINE OIL AND
AMBIENT TEMPERATURE
BATTERY GUARD
BENT RODS
STARTER
CABLE
LEADS

Pre-operation check

Before starting the generator, check the oil and fuel levels. Test the GFCI outlets as directed
on page 1 of this manual. Be sure that the air cleaner is functioning. Check that battery termi-
nals are tight and un-corroded. Follow the guidelines below when adding oil and fuel.

ENGINE OIL

NOTE: There is no oil in the engine crankcase when the generator is shipped. You must add
oil before starting the engine. Check the oil level before each use with the generator on a level
surface and the engine stopped.
Engine oil is a major factor affecting engine performance and service life. Non-detergent and
2-stroke oils will damage the engine and are not recommended. Use 4-stroke motor oil that
meets or exceeds the requirements for API service classification SJ. Always check the API
SERVICE label on the oil container to be sure it includes the letters SJ. SAE 10W-30 is rec-
ommended for general, all-temperature use. Other viscosities shown in figure 9 may be used
when the average temperature in your area is within the indicated range.
CHECKING THE OIL (FIGURES 10 AND 11)
1. Remove the oil filler cap and wipe the dipstick clean.
2. Check the oil level by inserting the dipstick into the filler neck without screwing it in.
3. If the test shows no oil markings, the oil is low.
4. If the level is low, add the recommended oil to the upper mark on the dipstick.
OIL CAPACITY
D WALT Model
E
DG2900
DG4300
DG6000/DG6000E
DG7000/DG7000E
NOTE: If the oil level is too low, the oil alert system will shutdown the engine and prevent
engine from restarting.
FILLER CAP
DIPSTICK
FIGURE 10: OIL FILLER HOLE
FUEL
WARNING! Gasoline is flammable and its vapor is explosive. To prevent fire or explosion,
follow the guidelines below:
• Keep fuel out of the reach of children.
• Refuel the generator in well-ventilated area. Do not refuel while engine is running or hot.
Disconnect all electrical loads and shut off the engine before refueling.
• Do not overfill the fuel tank. Always allow room for fuel vapors to expand. If you overfill the
tank, fuel can overflow onto the hot engine. This can cause fire or explosion. After refueling,
tightly close the fuel tank cap.
• Do not spill fuel. Fuel or fuel vapor may ignite. If fuel spills, make sure that the area is dry
before starting the engine.
• Never smoke in the refueling area. Never allow open flames or sparks in area.
• Store fuel in an approved container. Store fuel in a well ventilated area free of open flames
or sparks.
3
Quarts Liters
.63 .60
1.16 1.10
1.16 1.10
1.16 1.10
FIGURE 11:
OIL LEVEL
UPPER LEVEL
LOWER LEVEL
