b4Adventure Slackers TREEZONE ADVENTURE THREE HOUSE Manual page 9

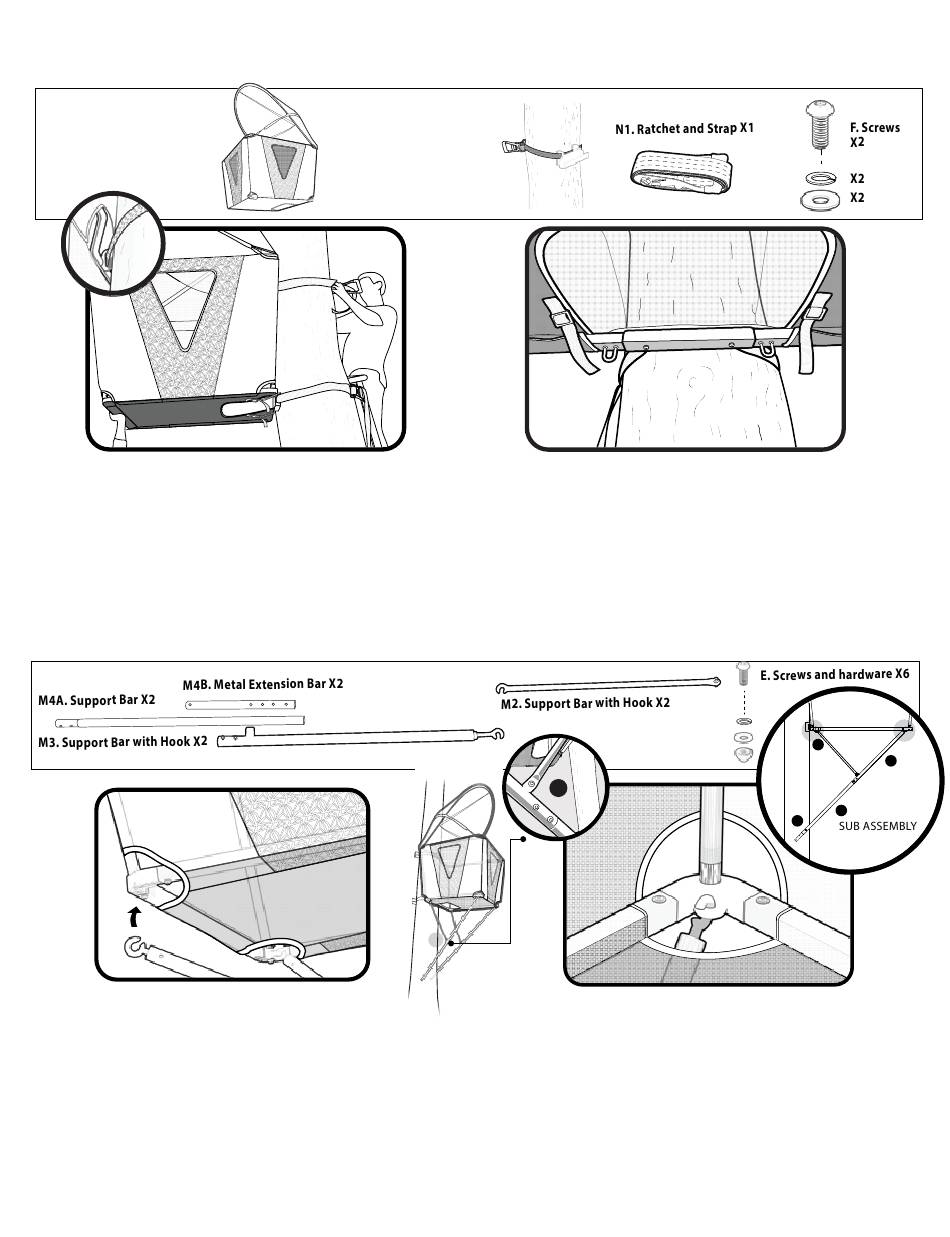

STEP 6: ATTACH THE HOUSE TO TREE
• Lift up the tree house with one person on each side. Place the bottom of the frame into center bracket. Metal loops on the
bottom should be on each side of the bracket.
YOU WILL NEED
Assembled House
From Previous Steps
• With one person holding the front of the tree house in
place, the second person should climb the ladder at the
back of the tree with the 7 ft (2.1 m) ratchet strap. Insert
the ratchet strap through the slots located on the back of
the top frame and secure the ratchet strap around the
tree.
•NOTE: You may need to re-adjust the position of the
bottom of the frame in order to secure bolts in next step.
Ratchet top strap loosely at first, then tighten after bolts
are secured to bottom of frame.
STEP 7: ASSEMBLE AND ATTACH BOTTOM SUPPORT BRACKETS
YOU WILL NEED
•Assemble the front support bar using 3
pieces, The support bar with hook (M3)
connects to the main support bar (M4A)
using 2 E screws, Then the adjustable metal
extension piece (M4B) should be assembled
at the desired height for bracket installation
using E screws.
• Hook support poles to front corners of base
frame (M3), they will hang down until you
attach them to the support brackets in the
next step.
Assembled Center
Bracket From
Previous Step
• Secure bottom of the frame to the bracket
with included screws.
• Once the top ratchet strap is secured, the
tree house should be stable enough to let go
while you proceed to the next step.
3.7
• Start with the (M2) hook very close to the
back of the frame to get it into the metal
corner circles.
• Pull and twist the hook down until it is
secure in the corner circles.
• 3.7 - Once back (M2) stabalizer poles are
inserted, connect the botttom of the
stabalizer poles to the front support poles
(M3) using E screws.
Tree Tree
M2
M4A
M4B
M3
9
