b4Adventure Slackers TREEZONE ADVENTURE THREE HOUSE Manual page 7

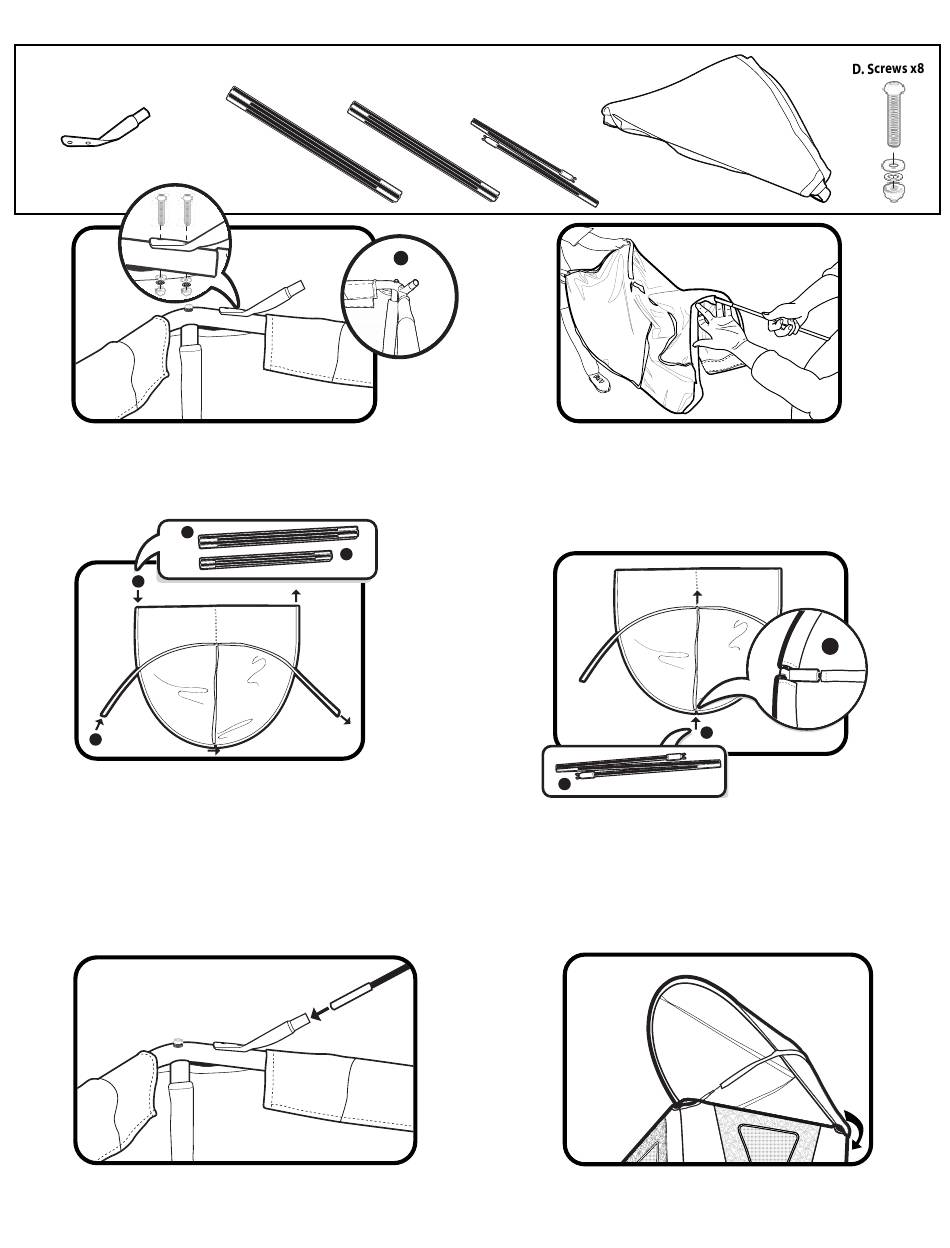

STEP 4: ASSEMBLE CANOPY
YOU WILL NEED
L4. Canopy Connectors X4
L4. Long Canopy Poles
D D
• 3.5 - Tent pole connector should face
outward during assembly.
• Secure tent pole connector to frame using
"D" screws.
L4
LONG
L4
L3
• NOTE: There are 3 different sizes of tent
poles. The shortest pole is the center
support and will be used in the next step.
• 1 - Longest pole is for the front part of the
top of the tent
• 2 - Shorter pole inserts into back sleeve.
• Insert the tent poles into pole connectors on
the frame. Push until they are all the way in.
L3. Medium Canopy Poles
L2. Short Canopy Poles
3.5
L3
MED
L1. Canopy X1
• Assemble the tent top.
• NOTE: The back of the tent top is the side
that has vecro on the bottom.
L1
L1
• Remove the green plastic connectors on
each end of the shortest pole
• Insert pole through middle sleeve.
• 3.6 - Use green plastic connectors on each
end of the center pole to connect to front and
back poles.
• Attach the back of the tent top to the back of
the frame with velcro.
3.6
7
