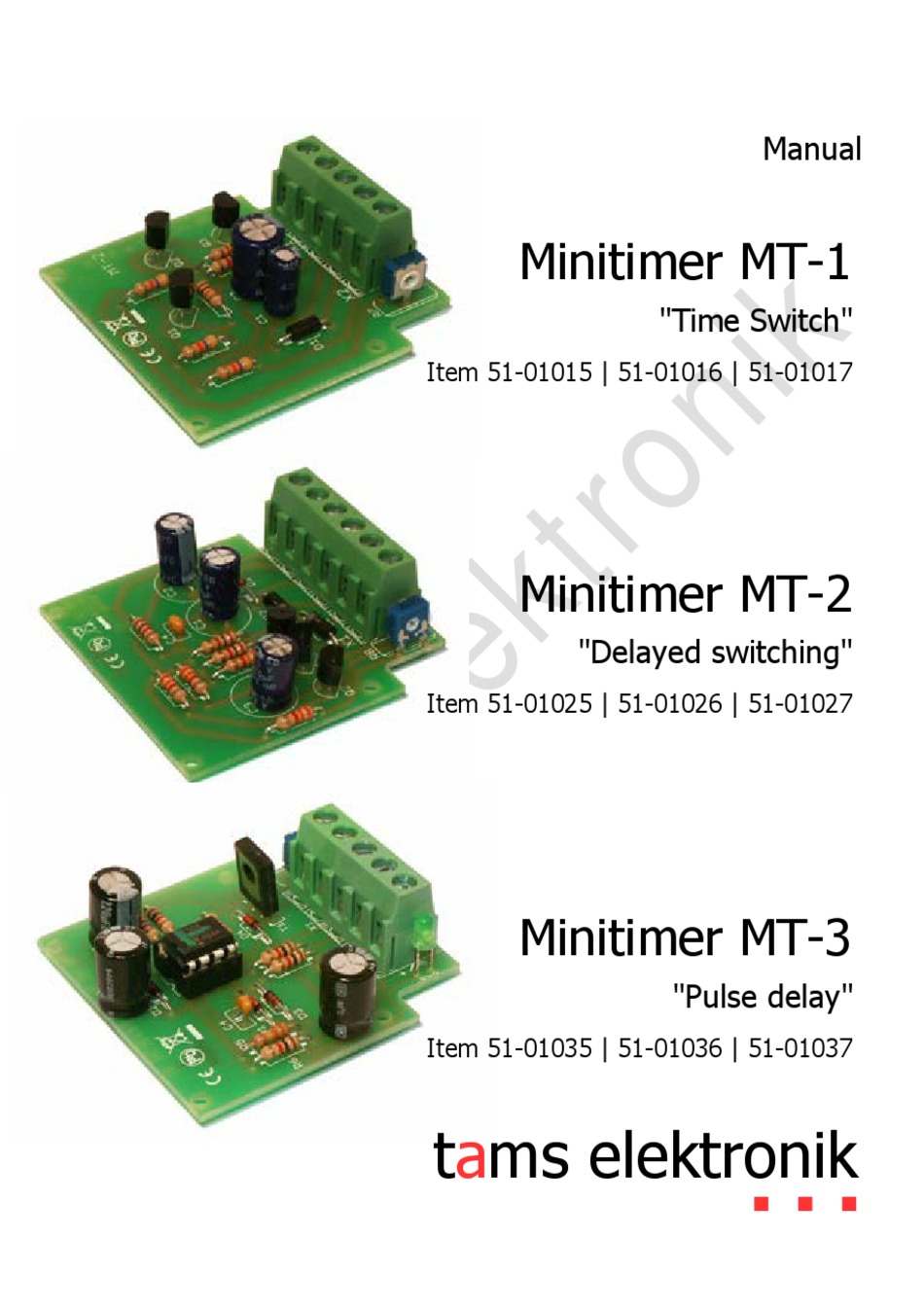

Minitimer MT-1
Item 51-01015 | 51-01016 | 51-01017
Minitimer MT-2
"Delayed switching"
Item 51-01025 | 51-01026 | 51-01027
Minitimer MT-3
Item 51-01035 | 51-01036 | 51-01037
tams elektronik
Manual
"Time Switch"
"Pulse delay"
n n n

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT-1 and is the answer not in the manual?

Questions and answers

Related Manuals for tams elektronik MT-1

Summary of Contents for tams elektronik MT-1

  • Page 1 Manual Minitimer MT-1 "Time Switch" Item 51-01015 | 51-01016 | 51-01017 Minitimer MT-2 "Delayed switching" Item 51-01025 | 51-01026 | 51-01027 Minitimer MT-3 "Pulse delay" Item 51-01035 | 51-01036 | 51-01037 tams elektronik n n n...

  • Page 2: Table Of Contents

    © Tams Elektronik GmbH All rights reserved, in particular the right of reproduction, distribution and translation. Copies, reproductions and alterations in any form require the written permission of Tams Elektronik GmbH. We reserve the right to make technical changes. Printing the manual The formatting is optimised for double-sided printing.

  • Page 3: Getting Started

    Intended use The minitimers MT-1, MT-2 and MT-3 are designed to be operated according to the instructions in this manual in model building, especially with model railways. Any other use is inappropriate and invalidates any guarantees.
  • Page 4 English MT-1 | MT-2 | MT-3 Checking the package contents Please make sure that your package contains:  one kit, containing the components listed in the parts list and one PCB: MT-1  page 17 MT-2  page 18 MT-3  page 19 ...

  • Page 5: Safety Instructions

    MT-1 | MT-2 | MT-3 English In order to connect the devices you possibly need a relay (see sections 8, 9 and 10): MT-1 relay 12 V e.g. relay 1xUm 12 V, item no. 84-61010 MT-2 relay 5 V e.g. relay 2xUm 5 V, item no. 84-61020 and protective diode 1N4148, item no.83-11100...
  • Page 6 English MT-1 | MT-2 | MT-3  Observe cable diameter requirements.  After condensation build up, allow a minimum of 2 hours for dispersion.  Use only original spare parts if you have to repair the kit or the ready-built module.

  • Page 7: Safe And Correct Soldering

    MT-1 | MT-2 | MT-3 English Caution: Little children can swallow small components with sharp edges, with fatal results! Do not allow components to reach small children. In schools, training centres, clubs and workshops, assembly must be supervised by qualified personnel.
  • Page 8 English MT-1 | MT-2 | MT-3 too much) solder simultaneously. As soon as the solder begins to flow, remove it from the soldering point. Then wait a moment for the solder to flow well before removing the soldering iron from the soldering joint.

  • Page 9: Operation Overview

    English 4. Operation overview Minitimer MT-1 "Time Switch" The minitimer MT-1 is designed for controlling operations in model railways which are supposed to last for 1 to 100 seconds. The desired switching time is set via a trimming potentiometer. Examples of use: Automatic opening of the gate at a level crossing after a certain time, automatic stop of trains at the platform for a certain time.
  • Page 10 English MT-1 | MT-2 | MT-3 connection at the module´s input is shorter than the preset delay time, the connected device stays off. Devices with a current up to 100 mA intended to be switched on after a certain delay time can be connected directly to the minitimer´s output.
  • Page 11 MT-1 | MT-2 | MT-3 English Minitimer MT-1 A = bridging the switching inputs B = voltage at the output U = voltage t = time Δt = on-time Minitimer MT-2 A = voltage at the input B = voltage at the output...

  • Page 12: Technical Specifications

    English MT-1 | MT-2 | MT-3 5. Technical specifications Supply voltage 12-18 Volt a.c. or d.c. voltage Current consumption (without 5 mA connected devices) approx. Max. current at the output MT-1: 100 mA MT-2: 100 mA MT-3: 1.000 mA Max. switching time (+ 20 %)

  • Page 13: Assembling The Kit

    MT-1 | MT-2 | MT-3 English 6. Assembling the kit You can skip this part if you have purchased a ready-built module or device. Preparation Put the sorted components in front of you on your workbench. The separate electronic components have the following special features...
  • Page 14 English MT-1 | MT-2 | MT-3 Trimm-potentiometers Trimm-potentiometers (abrv. "trimm-pots") are resistors which allow the value of resistance to be varied and that way to be adapted to the particular demands. In the middle they have a small slot into which a small screwdriver can be put in order to vary the value of resistance.
  • Page 15 MT-1 | MT-2 | MT-3 English Diodes and Zener diodes Diodes allow the current to pass through in one direction only (forward direction), simultaneously the voltage is reduced by 0,3 to 0,8 V. Exceeding of the limit voltage always will destroy the diode, and allow current to flow in the reverse direction.
  • Page 16 English MT-1 | MT-2 | MT-3 Integrated circuits (ICs) Depending on the type, ICs fulfil various tasks. The most common housing form is the so-called "DIL"-housing, from which 4, 6, 8, 14, 16, 18 or more "legs" (pins) are arranged along the long sides.
  • Page 17 MT-1 | MT-2 | MT-3 English MT-1: PCB layout and parts list Resistors R1, R2, R3, R4 3,3 k R5, R6, R7 1 k Trim pots 500 k Capacitors 100 nF Electrolytic capacitors C1, C2, C3 220 µF / 25 V...
  • Page 18 English MT-1 | MT-2 | MT-3 MT-2: PCB layout and parts list Resistors 10 k 5,6 k 1 k R4, R5, R6 47 k Trim pots 500 k Diodes 1N400x, x=2...7 Electrolytic capacitors 100 µF/25 V 470 µF/16 V Transistors...
  • Page 19 MT-1 | MT-2 | MT-3 English MT-3: PCB layout and parts list Resistors R1, R2, R4, R6, R8 1 k 4,7 k 330 k Trim pots 500 k Diodes D1, D3, D4 1N4148 1N400x, x=2...7 Zener diodes ZD 5V1 LEDs...
  • Page 20 English MT-1 | MT-2 | MT-3 Assembly Proceed according to the order given in the list below. First solder the components on the solder side of the PCB and then cut the excess wires with the side cutter. Follow the instructions on soldering in section 3.
  • Page 21 MT-1 | MT-2 | MT-3 English Electrolytic Observe the polarity! One of the two leads (the capacitors shorter one) is marked with a minus sign. Terminal strips Put together the terminal strips before mounting them. Trimm- The mounting orientation is preset by the potentiometers layout of the three pins.

  • Page 22: Performing A Functional Test

    1), 9. (MT-2) or 10. (MT-3), but connect a lamp to the outputs for the devices for the test. Set the trimm pot as follows: MT-1: left stop (= shortest possible switching time) MT-2: middle position (= middle time delay) MT-3: right stop (= shortest possible delay time) Connect the minitimer to the power supply and trigger a switching operation.

  • Page 23: Connecting The Mt-1

    (with direct voltage "^") switching input In order to trigger the minitimer MT-1 the switching input (connections X5 and X6) has to be shunted, e.g. with a key switch. Then, the connected device will be switched on for a time between 1 and 100 seconds and be switched off after this time.
  • Page 24 English MT-1 | MT-2 | MT-3 Fig. MT-1.1: MT-1: Connections Seite 24...
  • Page 25 MT-1 | MT-2 | MT-3 English Fig. MT-1.2: MT-1: Connection of a device via a relay Seite 25...

  • Page 26: Connecting The Mt-2

    English MT-1 | MT-2 | MT-3 9. Connecting the MT-2 Follow the connections diagrams fig. MT-2.1 and MT-2.2 and connect the minitimer MT-2 as follows: X1-1 device X1-2 device (polarized device "+") (polarized device "-") X2-1 switching input X2-2 transformer...
  • Page 27 MT-1 | MT-2 | MT-3 English Fig. MT-2.1: MT-2: Connections Seite 27...
  • Page 28 English MT-1 | MT-2 | MT-3 Fig. MT-2.2: MT-2: Connection of a device via a relay Seite 28...

  • Page 29: Connecting The Mt-3

    MT-1 | MT-2 | MT-3 English 10. Connecting the MT-3 Follow the connections diagrams fig. MT-3.1 and MT-3.2 and connect the minitimer MT-3 as follows: X1-1 device X1-2 device (polarized device "+") (polarized device "-") Remark: You can connect solenoid articles directly to the output.
  • Page 30 English MT-1 | MT-2 | MT-3 Fig. MT-3.1: MT-3: Connections Seite 30...
  • Page 31 MT-1 | MT-2 | MT-3 English Fig. MT-3.2: MT-3: Connection of a device via a relay Seite 31...

  • Page 32: Check List For Troubleshooting

    The lamp connected for the functional test of the module does not light. Possible cause: one or more components are soldered incorrectly. (MT-1: e.g. D2, MT-2: e.g. D1). à Alter the mounting direction. Possible cause: The lamp is defective. à Check the lamp by connecting it directly to the voltage supply.
  • Page 33 MT-1 | MT-2 | MT-3 English Hotline: If problems with your module occur, our hotline is pleased to help you (mail address on the last page). Repairs: You can send in a defective module for repair (address on the last page). In case of guarantee the repair is free of charge for you.

  • Page 34: Guarantee Bond

    English MT-1 | MT-2 | MT-3 12. Guarantee bond For this product we issue voluntarily a guarantee of 2 years from the date of purchase by the first customer, but in maximum 3 years after the end of series production. The first customer is the consumer first...

  • Page 35: Eu Declaration Of Conformity

    MT-1 | MT-2 | MT-3 English 13. EU Declaration of Conformity This product fulfils the requirements of the following EU directives and therefore bears the CE marking. 2001/95/EU Product Safety Directive 2015/863/EU on the restriction of the use of certain hazardous...

  • Page 36: Tams Elektronik Gmbh

    Information and tips: http://www.tams-online.de Warranty and service: Tams Elektronik GmbH Fuhrberger Straße 4 DE-30625 Hannover fon: +49 (0)511 / 55 60 60 fax: +49 (0)511 / 55 61 61 e-mail: modellbahn@tams-online.de...
