Installation Instructions
Grade I Key-In-Lever
Cylindrical Lockset
CL3500 Series
IMPORTANT: The accuracy of the door preparation is critical for the proper functioning and security of this lever
handle lock. Misalignment can cause premature wear and a lessening of security.
A
B
In U.S.: Corbin Russwin, Inc.
225 Episcopal Road
Berlin, CT 06037-4004
www.corbinrusswin.com
Technical Product Support:
Phone: 888-607-5703
Fax: 800-659-7293
In Canada: Yale-Corbin Canada LTD.,
6940 Edwards Boulevard,
Mississauga, ONT L5T 2W2
www.yalecorbin.on.ca
BH MA
C E R T I F I E D
TEST OPERATION:
DO NOT FORCE.
If lockset does not operate properly, remove lockset from door and check
door preparation.
(1)
Attention Installer
Please read these instructions carefully to prevent
missing important steps.
Please note: Improper installation may result in
damage to the lock and void the factory warranty.
FM 237

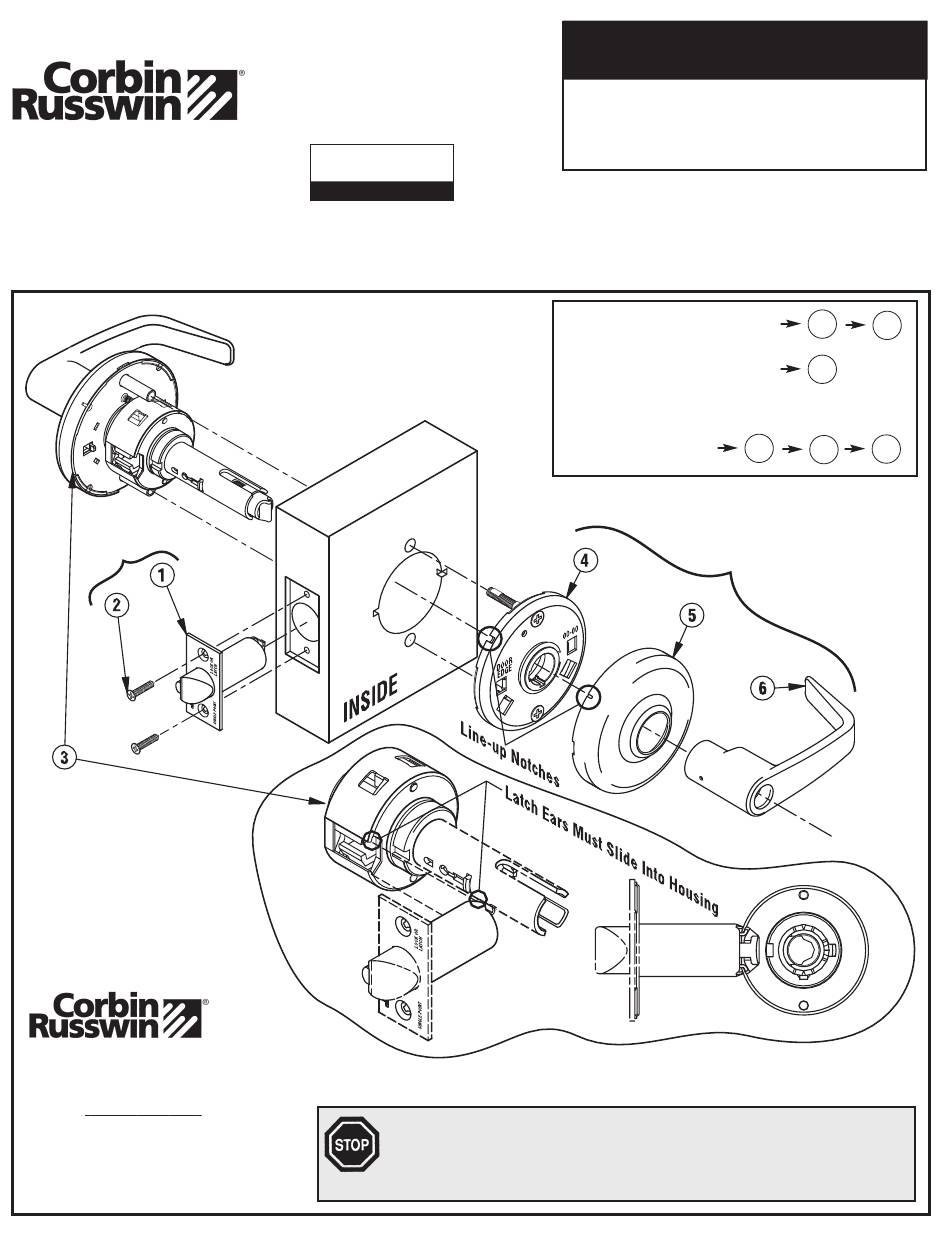

A
Install Latchbolt
B
Install Lockbody
C
Install Inside Trim
C
Rotate levers to see that latchbolt moves freely.
10/05
617417570
1
2
3
4
5
6
Advertisement
Table of Contents
Related Manuals for Corbin Russwin CL3500 Series
Summary of Contents for Corbin Russwin CL3500 Series
- Page 1 IMPORTANT: The accuracy of the door preparation is critical for the proper functioning and security of this lever handle lock. Misalignment can cause premature wear and a lessening of security. Install Latchbolt Install Lockbody Install Inside Trim In U.S.: Corbin Russwin, Inc. 225 Episcopal Road Berlin, CT 06037-4004 www.corbinrusswin.com Technical Product Support: TEST OPERATION: Rotate levers to see that latchbolt moves freely.
- Page 2 Door & Frame Preparation Install Strike Install Strike Mark door Locate and mark horizontal center line at desired height above floor. Fold template over edge of door, centering on horizontal Mark both sides line. Mark centers of holes at proper backset. of the door.
- Page 3 6 PIN 11/16" 7 PIN SHOWN 15 degrees. See Figure 2. Figure 2 Corbin Russwin conversion kit for Schlage ® Insert core into lever cylinders with CL3500 lockset. and return key to its 1. Remove threaded collar and Schlage tailpiece.
- Page 4 Lever Removal and Installation LEVER STILE REMOVAL INSTALL Push / Turn Button Hold in button, Push button in, slide lever on. push release tool into release hole, remove lever Make sure lever RELEASE will not pull off TOOL Plain Lever Push release tool Slide lever over into release hole,...
