Summary of Contents for Element ESBAB20RTR

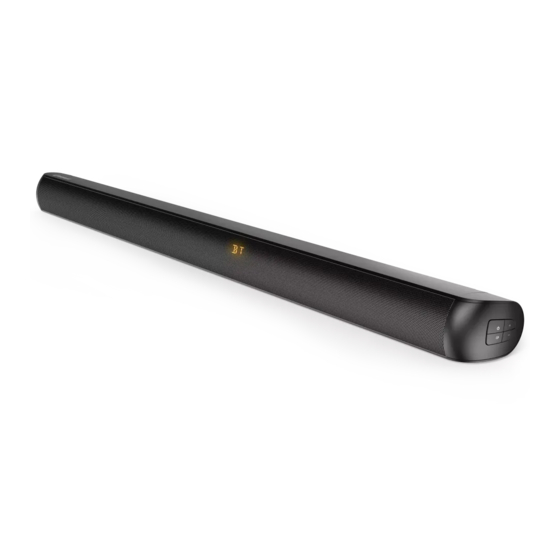

- Page 1 ESBAB20RTR 2.0 Sound Bar USER MANUAL FOR SUPPORT, VISIT ELEMENTELECTRONICS.COM/SUPPORT EE20_0082c_Soundbar_User_Guide.indd 1 EE20_0082c_Soundbar_User_Guide.indd 1 12/11/20 8:03 AM 12/11/20 8:03 AM...
-
Page 2: What's Included
WHAT’S FOR YOUR INCLUDED ATTENTION • Please read through this manual before making connections and operating this product. Retain this manual for future reference. • Do not open the cabinet of this unit. No user-serviceable parts inside. Refer servicing to qualified personnel only. • Switch off the unit when not in use. Switch off the unit and disconnect it from the AC power Your new sound bar! supply when not in use for an extended period of time. - Page 3 MOUNTING YOUR MOUNTING YOUR SOUND BAR ON A WALL SOUND BAR ON A WALL (continued) In order to prevent injuries, the sound bar device must be fastened securely to the wall in accordance with the below installation instructions. Drill two holes into the wall (about 6mm diameter). Hang the assembled sound bar on the screws in the wall. Keep the distance between drill holes 660mm apart. Insert the two supplied plugs into the holes, then insert the supplied screws and tighten.
- Page 4 SOUND BAR SOUND BAR PANELS PANELS (continued) Front Back Side Speaker AC IN Display screen HDMI (ARC) Remote sensor Power Turn sound bar on or off OPTICAL Source Select input audio source AUX IN Volume Up Turn up audio volume Volume Down Turn down audio volume USER MANUAL FOR SUPPORT, VISIT ELEMENTELECTRONICS.COM/SUPPORT...
-
Page 5: Connect To Your Tv
CONNECT CONNECTIONS TO YOUR TV Optical Connect your sound bar to your TV or other There are 3 ways to connect your sound bar to the TV: external devices such as a CD, VCR, DVD player, etc. by connecting an optical input cable (cable HDMI (ARC) Best Quality (cable included) not included) to your sound bar and the optical output of your external device. Optical Better Quality (cable not included) This sound bar is Roku TV Ready Press SRC button on the remote control to Aux Good Quality (cable not included) certified. If you have a Roku TV switch to the optical input mode. The word OPT simply connect the supplied HDMI will show on the display screen which means cable to your sound bar and TV and... -
Page 7: Remote Control
REMOTE BASIC PLAYBACK CONTROL Press to switch on the unit. Press it again to put the unit in standby mode. (continued) Press to enter the BT (Bluetooth) mode. Hold down this button for 3 seconds to disconnect Bluetooth. Power Press repeatedly to switch between Bluetooth, AUX IN, USB, OPTICAL IN and ARC mode. Line Press repeatedly to switch between EQ1, EQ2 and EQ3 equalizer modes. EQ1 stands for MUSIC, EQ2 stands for MOVIE and EQ3 stands for NEWS. Bluetooth Press to enter the AUX IN mode. Volume Up Press to temporarily pause a playback. Press it again to resume the playback. Play/Pause Previous Press to skip to the next track. Volume Down Next Press to return to the previous track. Audio Source Press to temporarily switch off the sound. Press it again to switch it on. -
Page 10: We're Here To Help
BENEFITS OF REGISTERING YOUR PRODUCT: customerservice@elementelectronics.com Support News & Offers Updates Get assistance quickly Take advantage of the Stay current with by pre-registering latest news and special important product updates your product. offers from Element. and notifications. USER MANUAL FOR SUPPORT, VISIT ELEMENTELECTRONICS.COM/SUPPORT EE20_0082c_Soundbar_User_Guide.indd 18-19 EE20_0082c_Soundbar_User_Guide.indd 18-19 12/11/20 8:04 AM 12/11/20 8:04 AM... - Page 11 Bring it home. EE20_0082c_Soundbar_User_Guide.indd 20 EE20_0082c_Soundbar_User_Guide.indd 20 12/11/20 8:04 AM 12/11/20 8:04 AM...
