- Page 1 ESBAE20 2.0 Sound Bar USER MANUAL FOR SUPPORT, VISIT ELEMENTELECTRONICS.COM/SUPPORT...
-
Page 2: What's Included
WHAT’S INCLUDED VOL _ SOURCE VOL + Your new sound bar! NEWS MUSIC MOVIE HDMI cable Audio cable Power cord Remote 2 AAA Wall remote batteries mounting kit USER MANUAL... -
Page 3: For Your Attention
FOR YOUR ATTENTION • Please read through this manual before making connections and operating your new sound bar. Retain this manual for future reference. • Do not open the cabinet of this unit; there are no user-serviceable parts inside. Refer servicing to qualified personnel only. •... - Page 4 MOUNTING YOUR SOUND BAR ON A WALL In order to prevent injuries, the sound bar device must be fastened securely to the wall in accordance with the below installation instructions. ≤ SUGGESTED WALL MOUNTING HEIGHT: 59in 1. Drill two parallel holes into the wall (about 0.22" - 0.24" (1/4") in diameter).
- Page 5 MOUNTING YOUR SOUND BAR ON A WALL (continued) 3. Unscrew the four screws from the back of the Sound Bar, place brackets on each set of holes and replace screws to hold brackets firmly in place HDMI ARC OPTICAL 4. Lift unit onto wall, aligning the wall screws into the holes in the brackets and slot into place FOR SUPPORT, VISIT ELEMENTELECTRONICS.COM/SUPPORT...
-
Page 6: Front Controls

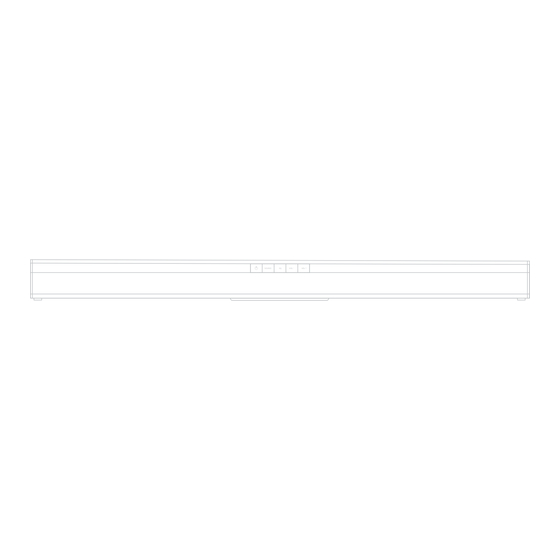

SOUND BAR PANELS Front VOL _ SOURCE VOL + Front Controls Remote Control Sensor LED Display Power Turn sound bar on or off Source Select input audio source EQ Select the sound effect VOL _ VOL + SOURCE Volume Down Turn down audio volume Volume Up Turn up audio volume USER MANUAL... -
Page 7: Back Connections
SOUND BAR PANELS (continued) Back HDMI ARC OPTICAL Back Connections WALL BRACKET SCREWS AC IN OPTICAL HDMI ARC OPTICAL AUX IN HDMI (ARC) FOR SUPPORT, VISIT ELEMENTELECTRONICS.COM/SUPPORT... -
Page 8: Connect To Your Tv
CONNECT TO YOUR TV There are 4 ways to connect your sound bar to the TV: HDMI (ARC) Best Quality (cable included) Optical Better Quality (cable not included) AUX Good Quality (cable not included) USB Good Quality (cable not included) HDMI ARC (AUDIO RETURN CHANNEL) ARC is an audio return channel function for digital audio which will give you the best sound quality. - Page 9 CONNECTIONS Optical Connect your sound bar to your TV or other external devices such as a CD, VCR, DVD player, etc., by connecting an optical input cable (cable not included) to your sound bar and the optical output of your external device. Press button on the remote control to select optical input mode.
- Page 10 Bluetooth signal of the sound bar. [PREVIOUS], [VOLUME+/-] etc. are also active. 2. Select ESBAE20 on your list of Bluetooth connections. 3. The sound bar will then sync to play from your device. When the display reads BT and a beep is heard, it means you are connected successfully.
-
Page 11: Remote Control Operation
REMOTE CONTROL Remote control operation Insert the batteries into the remote control. Point the remote control at the remote sensor on the front panel. The remote control works within a distance of about 6 meters from the sensor and within an angle of about 30 degrees from the left and right side. - Page 12 REMOTE CONTROL (continued) Power Source Volume Up/Down News/Music/Movie Mute Previous/Next MUSIC NEWS Play/Pause MOVIE Bluetooth USER MANUAL...
-
Page 13: Basic Playback
BASIC PLAYBACK Press to switch on the unit. Press it again to put the unit in standby mode. Press to switch to Bluetooth mode, hold down button for 3 sec to disconnect Bluetooth mode. NEWS MUSIC MUSIC NEWS MOVIE Press for AUX / HDMI ARC / OPTICAL / USB mode NEWS MUSIC MOVIE... -
Page 14: Troubleshooting
TROUBLESHOOTING Use the chart below to troubleshoot any issues you may be having. If you do not see your issue listed below, or the troubleshooting guide does not solve your issue, please contact Element customer support. SYMPTOM CAUSE REMEDY No Power •... - Page 15 SOUND BAR SPECIFICATIONS WORKING ENVIRONMENT SOUND BAR POWER SUPPLY AC ~100-240V, 50/60Hz RELATIVE TEMPERATURE HUMIDITY 14°F - 95°F 5% ~ 90% FREQUENCY RESPONSE 40Hz~200Hz SOUNDBAR MAX POWER OUTPUT 30W X 2 FOR SUPPORT, VISIT ELEMENTELECTRONICS.COM/SUPPORT...
- Page 16 REFERENCES Element TV Company, LP. bears no responsibility for data and/or information that is compromised during a wireless transmission. Frequency band • This system uses the 2.4 GHz frequency band. Certification • This system conforms to the frequency restrictions and has received certification based on frequency laws.
- Page 17 Bluetooth SIG,Inc. and any use of such marks by Zhong ® Shan City Richsound Electronic Industrial Ltd. (Element’s manufacturing partner) is under license. Other trademarks and trade names are those of their respective owners.
-
Page 18: Warranty
Element. and notifications. product registration.* *1-year manufacturer’s limited warranty with purchase, or 2-year limited warranty with product registration within 90 days of purchase. See warranty card for details. USER MANUAL... -
Page 19: We're Here To Help
We’re available 24 hours a day, 7 days a week elementelectronics.com 1.888.842.3577 customerservice@elementelectronics.com Element offers environmentally responsible options to recycle your unwanted consumer electronics device. More information can be found by visiting: www.elementelectronics.com/sustainability FOR SUPPORT, VISIT ELEMENTELECTRONICS.COM/SUPPORT... - Page 20 ® Element, the Element Logo, and Bring it home are trademarks of Element Brand Holding, LLC. All other trademarks are the property of the respective owner who has not sponsored, endorsed, or approved this product. ©2024, Element Brand Holding, LLC, All Rights Reserved.
