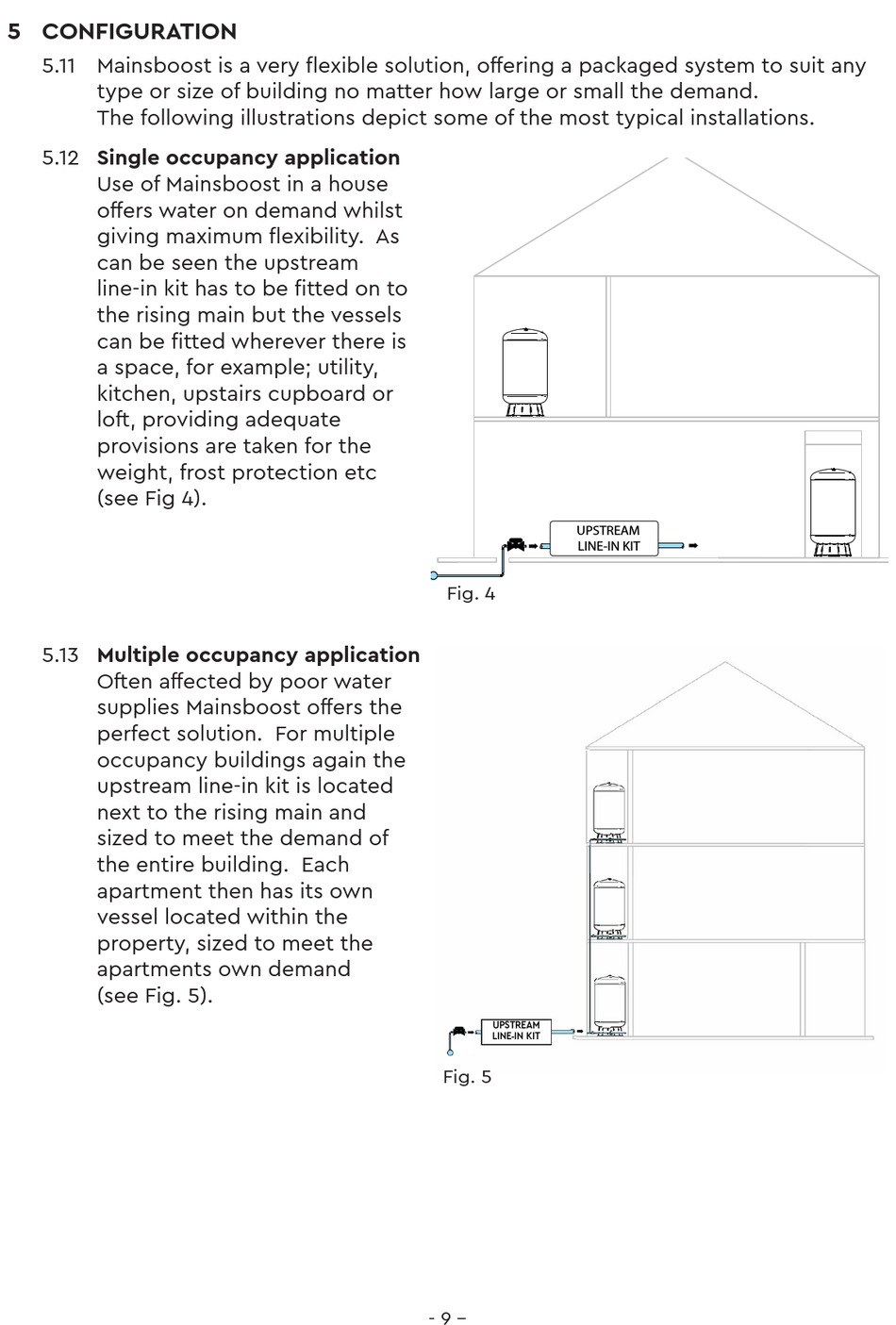

5 CONFIGURATION

5.11 Mainsboost is a very flexible solution, offering a packaged system to suit any
type or size of building no matter how large or small the demand.
The following illustrations depict some of the most typical installations.
5.12 Single occupancy application
Use of Mainsboost in a house
offers water on demand whilst
giving maximum flexibility. As
can be seen the upstream
line-in kit has to be fitted on to
the rising main but the vessels
can be fitted wherever there is
a space, for example; utility,
kitchen, upstairs cupboard or
loft, providing adequate
provisions are taken for the
weight, frost protection etc
(see Fig 4).
5.13 Multiple occupancy application
Often affected by poor water
supplies Mainsboost offers the
perfect solution. For multiple
occupancy buildings again the
upstream line-in kit is located
next to the rising main and
sized to meet the demand of
the entire building. Each
apartment then has its own
vessel located within the
property, sized to meet the
apartments own demand
(see Fig. 5).
UPSTREAM
LINE-IN KIT
Fig. 4
�
�
II d
""
('
'-
- g 1/
I
UPSTREAM ""2-
'--
-
LINE-IN KIT
L
Fig. 5
- 9 -
-
--
-
.
· �
