USER'S MANUAL

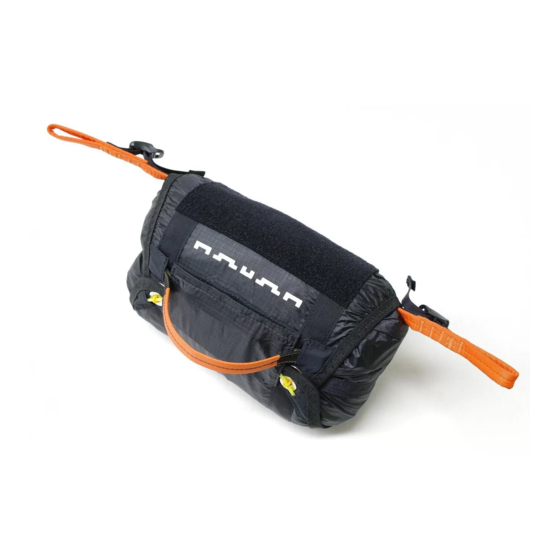

FRONTCONTAINER LIGHT 90/110
EDITION 1_01/2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the Light 90/110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dudek Light 90/110

Summary of Contents for Dudek Light 90/110

  • Page 1 USER’S MANUAL FRONTCONTAINER LIGHT 90/110 EDITION 1_01/2020...

  • Page 3: Table Of Contents

    Congratulations! Thank you for choosing the Light 90/110 frontcontainer. We have done our best to present you with a highest quality product, fulfilling all safety requirements. Please read this manual carefully, as this will let you safely utilize all features provided by this frontcontainer.

  • Page 4: Safety

    Dudek Paragliders company does not bear any responsibility for damages or injuries resulting from paragliding activities. 2. Description Frontcontainer Light 90/110 has been designed for use with any paragliding harness. It is manufactured in two sizes: 90 and 110, fitting the Globe Light 90 and Globe Light 110 rescue chutes respectively.

  • Page 5: Rescue Chute Installation

    3. Rescue chute installation Connect the release handle to the point in the middle of the bag. Connect the v-strap to the rescue chute riser. with a C6 quicklink. Fix the V-riser with an o-ring (see picture on the right) and tighten the nut with a wrench.
  • Page 6 Place the rescue chute in the frontcontainer as shown on the right picture. Lead the assist lines through the loops of the #1 flaps. Then lead the assist lines through the loops of # 2 flap and lock them with temporary pins.
  • Page 7 Lead the assist lines through the metal loops of the # 3 flap and lock them with temporary pins. Remove the temporary pins and replace them with those of the release handle. Place their ends in proper pouches of the #3 flap.
  • Page 8 Place the ends of the release handle in dedicated pouches on the #2 flap. Close the pins cover with a velcro strap.
  • Page 9 Push the remaining parts if the #1 flaps inside and form the frontcontainer.
  • Page 10 To avoid accidental opening of the rescue system, pins closing the container must be checked before each flight! The rescue chute must be periodically aired and repacked according to its manual. The frontcontainer is designed to house the Dudek Paragliders Globe Light 90 and Globe Light 110 rescue chutes. However, use of rescue parachutes by other manufacturers is possible too, as long as their dimensions when packed do not exceed those of the container.

  • Page 11: Frontcontainer Installation

    4. Frontcontainer installation The frontcontainer is simply mounted by clipping the ends of the V-strap to the carabiners.Loops on the V-strap ends do simultaneously fix the frontcontainer itself. Then adjust position of the frontcontainer by plastic buckles (see picture below). Before installing the frontcontainer in the harness, make sure that the carabiners are pointing backwartds with their locks.

  • Page 12: Before Flight

    5. Before flight Before each flight a thorough check of the frontcontainer is required. For your own safety make sure that: - the container is not damaged in any way - it is properly closed and locked with pins - rescue chute release handle is correctly set up and has the right shape (quite often it happens to be malformed in transport, so it’s important to check if it’s not flattened and remains easy to grab) - the main carabiners are closed, locked and free of any damage 6.
  • Page 13 The frontcontainer is made out of synthetic materials, which need to be properly disposed of when worn out. If you are not able to dispose of your gear properly, DUDEK Paragliders will do that for you. Just send the equipment in question to the address given in this...

  • Page 14: Technical Data

    1 Frontcontainer Light 90 or 110 with v-strap 1 Frontcontainer release handle Since Dudek Paragliders products are subject to constant improvements, minor differences are possible between the manual and actual product. Dudek Paragliders withholds rights to introduce such changes without individual notice.
  • Page 15 DUDEK PARAGLIDERS S.J. UL. CENTRALNA 2U 86-031 OSIELSKO POLAND PHONE: +48 52 324 17 40 FAX: +48 52 381 33 58 EXPORT@DUDEK.EU WWW.DUDEK.E...
