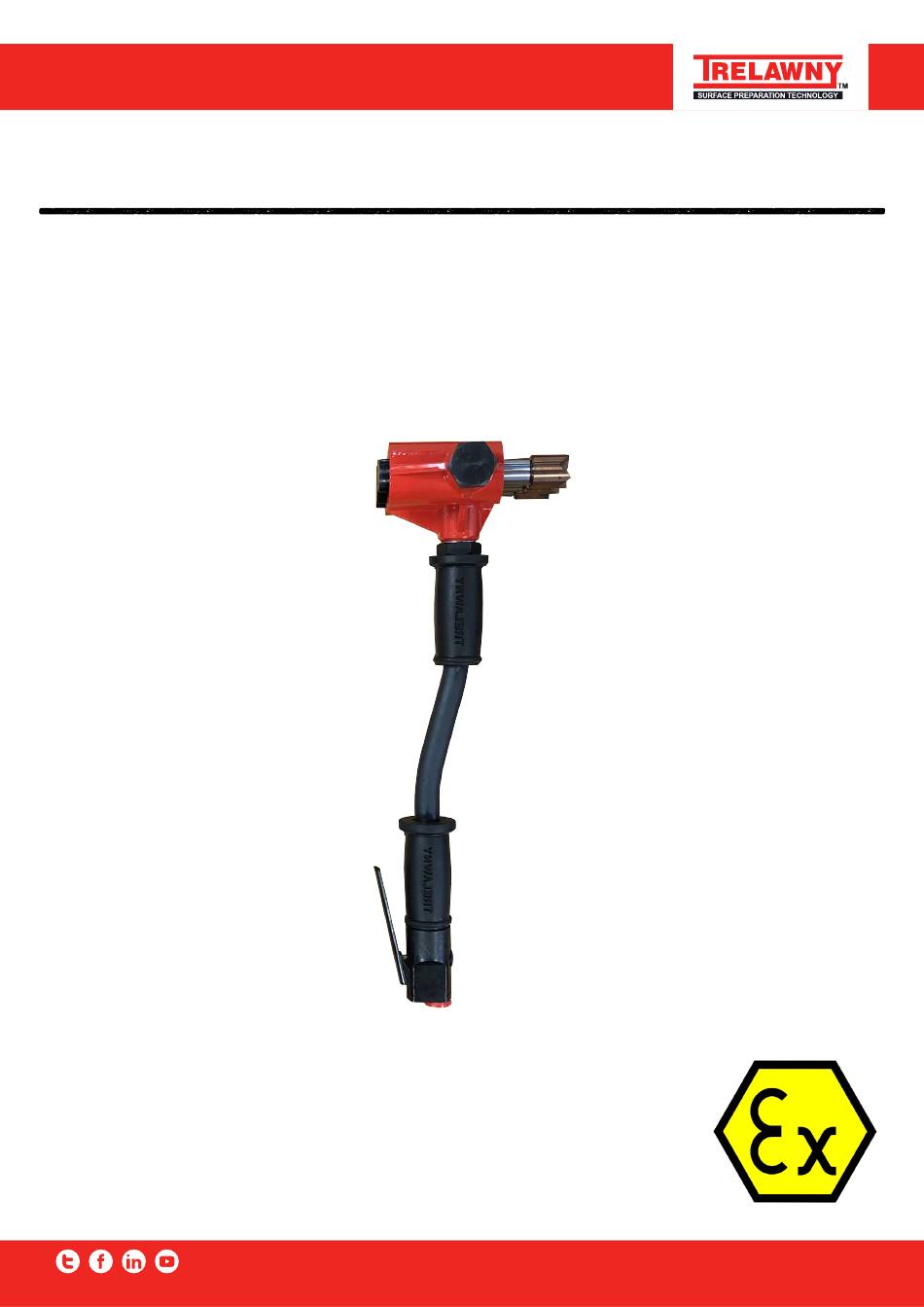

- Page 1 SF3ex Scaling hammer operations and maintenance manual www.trelawny.co.uk www.trelawny.co.uk...
-
Page 2: Table Of Contents
Your new Trelawny SPT tool will more than satisfy your expectations. It has been manufactured under stringent Trelawny SPT Quality Standards to meet superior performance criteria. You will find your new tool easy and safe to operate, and, with proper care, it will give you many years of dependable service. -
Page 3: Declaration Of Conformity
II 2 D Ex h IIIC T135°C Db ________________________ Year and place of issue, 2020 Adam Dickinson, Leamington Spa, England Managing Director ________________________________________________________________________________________________________ Registered Office: Trelawny SPT Ltd, Trelawny House, 13 Highdown Road, Sydenham Industrial Estate, Leamington Spa, Warwickshire, CV31 1XT, United Kingdom DOCUMENT No. Q:57/8 www.trelawny.co.uk... - Page 4 73/23/EC DIREKTIVA O STROJIH Z NIZKO VOLTAŽO (nanaša se samo na proizvode na električni pogon) MEGFELELŐSÉGI NYILATKOZAT UYGUNLUK BEYANI Mi. A "Trelawny SPT Limited" cég Trelawny SPT Limited Felelösségünk tudatában kijelentjük, hogy mint a termék szállitója/gyartója AÞaöýdaki, üretim ve tedarikinden tek baÞýna sorumlu olduöu ürünün Termék neve...
- Page 5 DECLARATION OF CONFORMITY Appendix 1 - Hazardous Area Certification The SF3Ex Scaling Hammer certified compliant to the ATEX Directive (2014/34/EU) for safe use within a hazardous area and has been assessed so by Element Materials Technology. This product conforms to the Standards:...
-
Page 6: Foreword
SF3ex SCALING HAMMER FOREWORD Thank you for your purchase of a Trelawny SF3Ex Scaling this manual thoroughly. In the unlikely event that you Hammer. This manual contains the necessary maintenance experience problems with your Trelawny SF3Ex Scaling information for you to ensure proper operation and care for Hammer, please do not hesitate to contact your local this machine. -
Page 7: Risk Of Hand Arm Vibration
Handled correctly the Scaler will work quickly and efficiently. towards the handle grip to start the tool, then apply the cutter heads to the surface being prepared. VERY IMPORTANT Only Trelawny Beryllium Copper Heads must be used in this tool. DO NOT substitute with any other head. www.trelawny.co.uk... -
Page 8: Maintenance
SF3ex SCALING HAMMER MAINTENANCE Excessive operator pressure will not improve the tool efficiency but will cause premature tool failure and operator Valve body servicing (Workshop) Clamp the handle (10) assembly firmly in a soft face jawed fatigue. Never allow the tool to run continuously whilst not in contact with the surface being prepared. -
Page 9: Disposal
When the tool and its accessories are taken out of service VERY IMPORTANT for disposal, it is recommended that: - They are rendered Only Trelawny Beryllium Copper Heads must be used in this tool. DO NOT substitute with any other head. unusable to prevent improper re-use. -
Page 10: Exploded
SF3ex SCALING HAMMER EXPLODED DIAGRAM PAGE 10... -
Page 11: Parts List
Tapered cutterhead will not stay on piston. Traces of oil remained on the tapered surfaces when replacing Ensure that the cutterhead and pistons tapers are completely free of cutter head. oil, use a good degreasing agent and clean cloth prior to assembly. www.trelawny.co.uk... -
Page 12: Technical Specification
© Copyright 2015, Trelawny SPT Limited, CV31 1XT. UK All rights reserved. Any unauthorised use or copying of the contents or part thereof is prohibited. This applies to trademarks, model denominations, part numbers and drawings. Use only genuine Trelawny spares. - Page 13 www.trelawny.co.uk...
- Page 14 SF3ex SCALING HAMMER notes PAGE 14...
- Page 15 www.trelawny.co.uk...
- Page 16 DEALER STAMP: need to contact us? Manual Part Number: Trelawny SPT Limited 735.3608 Trelawny House, 13 Highdown Road, Sydenham Industrial Estate, Leamington Spa, Warwickshire, CV31 1XT, United Kingdom Telephone: +44 (0)1926 883781 Fax: +44 (0)1926 450352 Email: sales@trelawny.co.uk Website: www.trelawny.co.uk...
