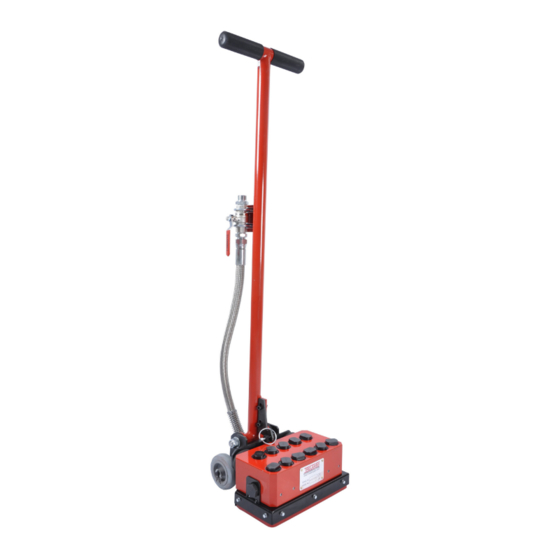

- Page 1 SF11ex deck hammer operations and maintenance manual www.trelawny.co.uk www.trelawny.co.uk...
-
Page 2: Table Of Contents
Your new Trelawny SPT tool will more than satisfy your expectations. It has been manufactured under stringent Trelawny SPT Quality Standards to meet superior performance criteria. You will find your new tool easy and safe to operate, and, with proper care, it will give you many years of dependable service. -
Page 3: Declaration Of Conformity
II 2 D Ex h IIIC T135°C Db ________________________ Year and place of issue, 2020 Adam Dickinson, Leamington Spa, England Managing Director ________________________________________________________________________________________________________ Registered Office: Trelawny SPT Ltd, Trelawny House, 13 Highdown Road, Sydenham Industrial Estate, Leamington Spa, Warwickshire, CV31 1XT, United Kingdom DOCUMENT No. Q:57/8 www.trelawny.co.uk... - Page 4 73/23/EC DIREKTIVA O STROJIH Z NIZKO VOLTAŽO (nanaša se samo na proizvode na električni pogon) MEGFELELŐSÉGI NYILATKOZAT UYGUNLUK BEYANI Mi. A "Trelawny SPT Limited" cég Trelawny SPT Limited Felelösségünk tudatában kijelentjük, hogy mint a termék szállitója/gyartója AÞaöýdaki, üretim ve tedarikinden tek baÞýna sorumlu olduöu ürünün Termék neve...
- Page 5 DECLARATION OF CONFORMITY Appendix 1 - Hazardous Area Certification The SF11Ex Deck Hammer certified compliant to the ATEX Directive (2014/34/EU) for safe use within a hazardous area and has been assessed so by Element Materials Technology. This product conforms to the Standards:...
-
Page 6: Foreword
SF11ex DECK hammer FOREWORD Thank you for your purchase of the SF11Ex Deck Hammer. This experience problems with your SF11Ex Deck Hammer, manual contains the necessary maintenance information for please do not hesitate to contact your local Trelawny you to ensure proper operation and care for this machine. It is dealer or agent. -
Page 7: Risk Of Hand Arm Vibration
Recommended Lubriants Handled correctly the SF11Ex Deck Hammer will work quickly and efficiently. Gloves and personal protective equipment Oil the tool before use. Put a few drops of one of the following must be worn when using this tool. -
Page 8: Maintenance
SF11ex DECK hammer MAINTENANCE Disconnect the tool from the air supply before carrying out Handle Assembly from Sub-Frame any of the following operations. Remove locking pin (11) to free handle. Lay tool down with hoses uppermost. Unscrew the connector on the hose (7) Dismantling from the adaptor nearest to the scaling head. -
Page 9: Disposal
If your company has any problem with our products or would drawings. like to discuss the possibility of an improvement being made Use only genuine Trelawny spares. The use of non-Trelawny spare parts invalidates the warranty and ATEX Certification. to them, then please do not hesitate to contact us. Your comments are both important and appreciated. -
Page 10: Exploded
SF11ex DECK hammer EXPLODED DIAGRAM PAGE 10... -
Page 11: Parts List
Split Pin 615.5341 Screwed Cap 712.5301 Compression spring 615.5361 Spring Cap 613.5301 Cylinder 614.5301 Brush Seal Piston (Taper fit) 612.5301 Beryllium cutter head – (Taper fit) –spark resistant 606.5303 Vacuum Shroud assembly 437.0100 731.0120 Polyurethane seal 446.1540X Service Kit (25,26,27,29,30,31) www.trelawny.co.uk... -
Page 12: Technical Specification
Action Ensure that the air pressure is set at 90psi. (6.3bar). Air pressure too high. If the air pressure cannot be controlled, close off the SF11Ex on/off Machine bounces in use valve slightly until the machine runs smoothly. Machine performance slow Worn Cutter Heads Replace Cutter Heads. - Page 13 © Copyright 2015, Trelawny SPT Limited, CV31 1XT. UK All rights reserved. Any unauthorised use or copying of the contents or part thereof is prohibited. This applies to trademarks, model denominations, part numbers and drawings. Use only genuine Trelawny spares.
- Page 14 SF11ex DECK hammer notes PAGE 14...
- Page 15 www.trelawny.co.uk...
- Page 16 DEALER STAMP: need to contact us? Manual Part Number: Trelawny SPT Limited 735.3604 Trelawny House, 13 Highdown Road, Sydenham Industrial Estate, Leamington Spa, Warwickshire, CV31 1XT, United Kingdom Telephone: +44 (0)1926 883781 Fax: +44 (0)1926 450352 Email: sales@trelawny.co.uk Website: www.trelawny.co.uk...
