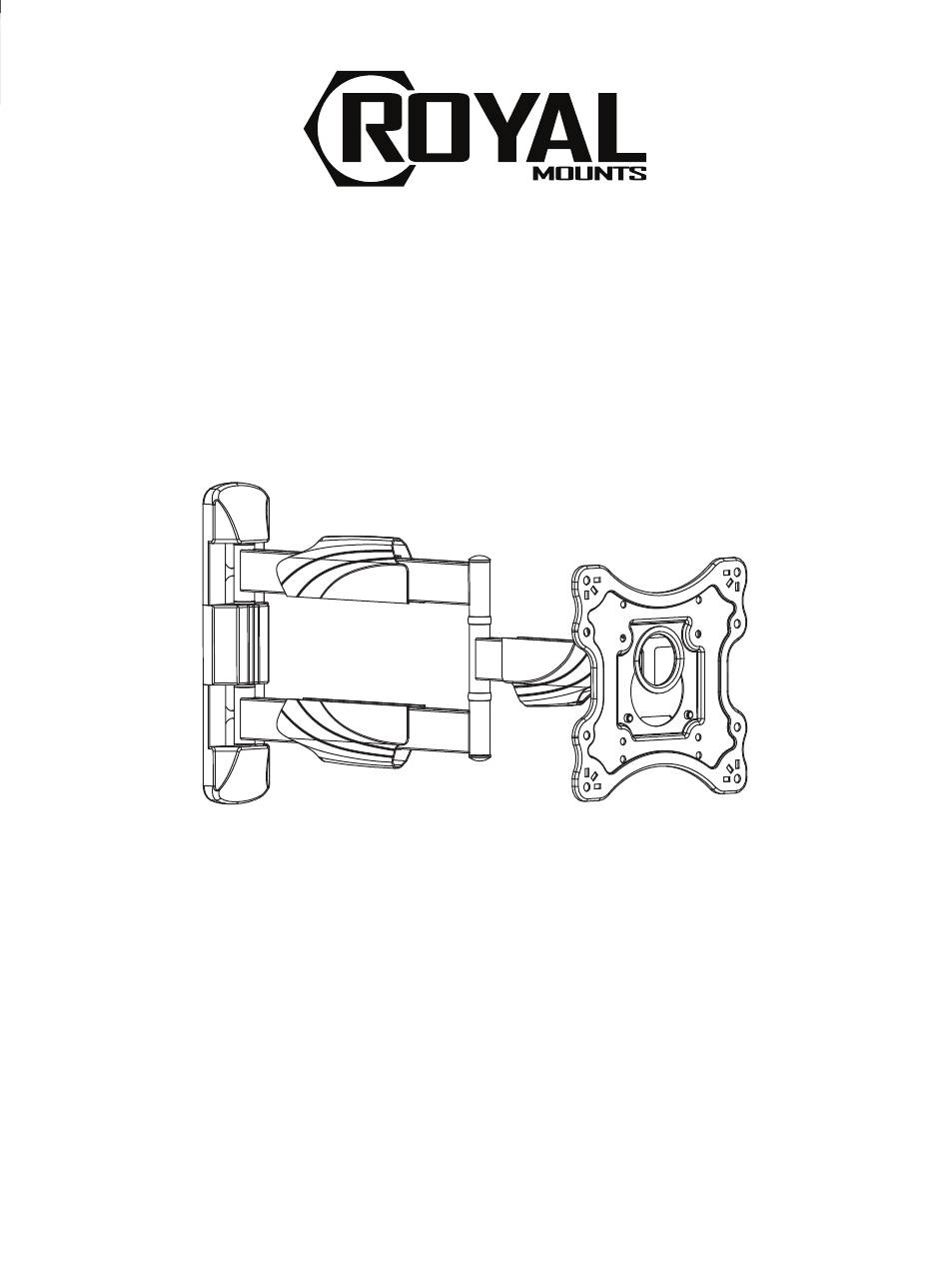

- Page 1 ROY5603B USER MANUAL FULL-MOTION WALL MOUNT Flat Panel TV’s 23”-42”...
- Page 2 Flat Panel TV’s INTRODUCTION Congratulations! The ROY5603B Full-Motion Wall Mount is a great solution for mounting TV’s ranging from 23 inches up to 42 inches. This mount can support up to 77 pounds. It has a profile that ranges between 2.05 and 23.9 inches from the wall.
- Page 3 FULL-MOTION WALL MOUNT Flat Panel TV’s INSTALLATION Step 1: Mount the back plate to the wall For Drywall For Concrete 1. Remove the TV mounting plate 1. Remove the TV mounting plate 2. Level, mark & drill 3/16” holes for each screw 2.
- Page 4 If you have any questions about the operation or installation of this product, please call our distributor, Skywalker © 2018 Royal Mounts AV Supply at (800) 844-9555 or (636) 272-8025. Skywalker AV Supply hours of operation are from 8am to 5pm CST.
