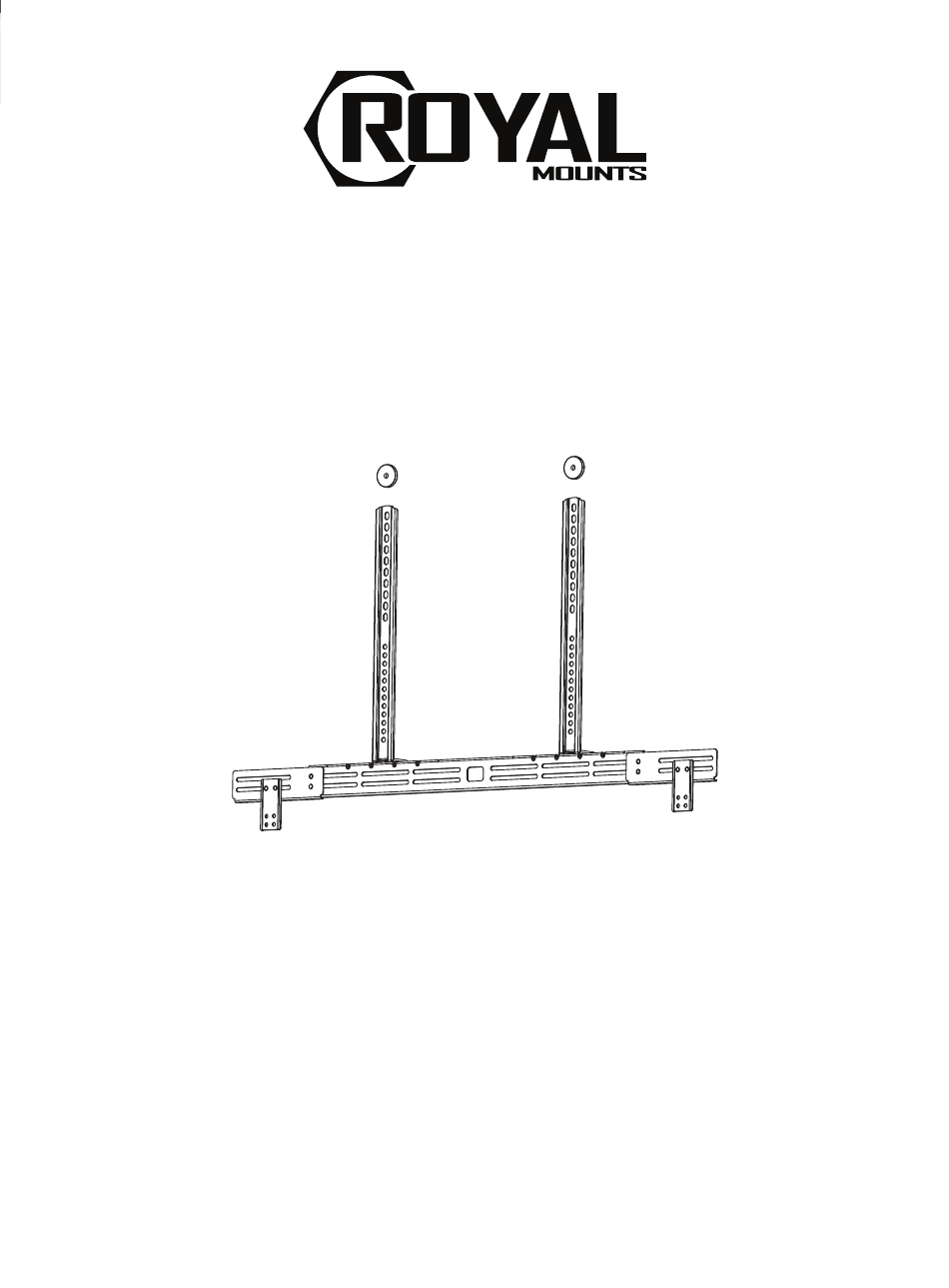

- Page 1 ROY7709B USER MANUAL SOUNDBAR BRACKET Flat Panel TV’s UNIVERSAL...
- Page 2 Flat Panel TV’s INTRODUCTION Congratulations! The ROY7709B Universal Soundbar Bracket is a great solution for mounting most soundbars to TVs. This bracket can support up to 22 pounds. Adjust the soundbar depth by 1.65 inches to be flush with the TV.
- Page 3 UNIVERSAL SOUNDBAR BRACKET Flat Panel TV’s INSTALLATION SETUP Step 1: Bracket Assembly 1. Measure your soundbar mounting holes 2. Compare your soundbar to the plate that holds it 3a. Install mounting ears directly to plate 3b. Add extentions before mounting ears 4.
- Page 4 If you have any questions about the operation or installation of this product, please call our distributor, Skywalker © 2018 Royal Mounts AV Supply at (800) 844-9555 or (636) 272-8025. Skywalker AV Supply hours of operation are from 8am to 5pm CST.
