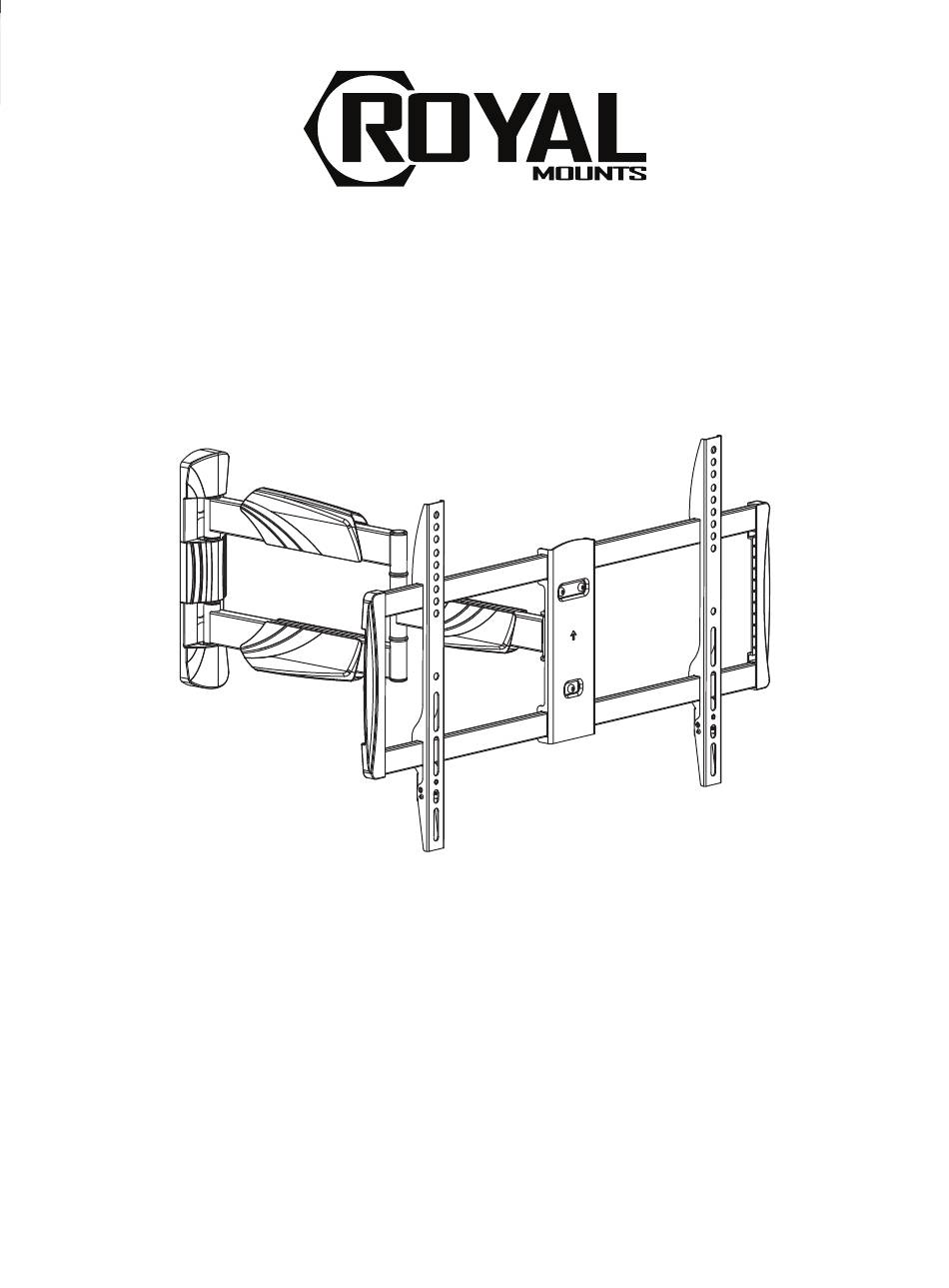

- Page 1 ROY5604B USER MANUAL FULL-MOTION WALL MOUNT Flat Panel TV’s 37”-70”...

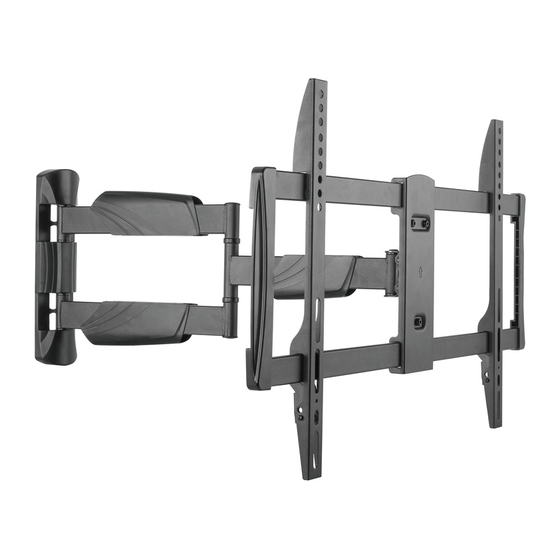

- Page 2 Flat Panel TV’s INTRODUCTION Congratulations! The ROY5604B Full-Motion Wall Mount is a great solution for mounting TV’s ranging from 37 inches up to 70 inches. This mount can support up to 77 pounds. It has a profile that ranges between 1.93 and 24 inches from the wall.
- Page 3 FULL-MOTION WALL MOUNT Flat Panel TV’s INSTALLATION Step 1: Mount the back plate to the wall For Drywall For Concrete 1. Remove covers to access wall plate 1. Remove covers to access wall plate 2. Level, mark & drill 3/16” holes for each screw 2.
- Page 4 If you have any questions about the operation or installation of this product, please call our distributor, Skywalker © 2018 Royal Mounts AV Supply at (800) 844-9555 or (636) 272-8025. Skywalker AV Supply hours of operation are from 8am to 5pm CST.
